Control Boxes ANT-12
Waterproof Dual-Actuator Synchronous Controller

The ANT-12 Series is a high-precision, intelligent 2-channel synchronous controller designed for ANTUATOR actuators equipped with Hall sensors. It enables two actuators to extend, retract, or stop synchronously, ensuring seamless operation in demanding environments such as outdoor, industrial, and vehicle applications. Integrated with multiple software and hardware protection features—including overcurrent, overvoltage, undervoltage protection, Hall signal detection, and synchronization error reporting—it enhances reliability and safety. The controller supports a dedicated touchscreen programmer with flexible parameter settings, allowing users to quickly adapt to various ANTUATOR actuator models. Additionally, its built-in standard MODBUS protocol simplifies automation system integration and diverse control applications, making further development easy and efficient.

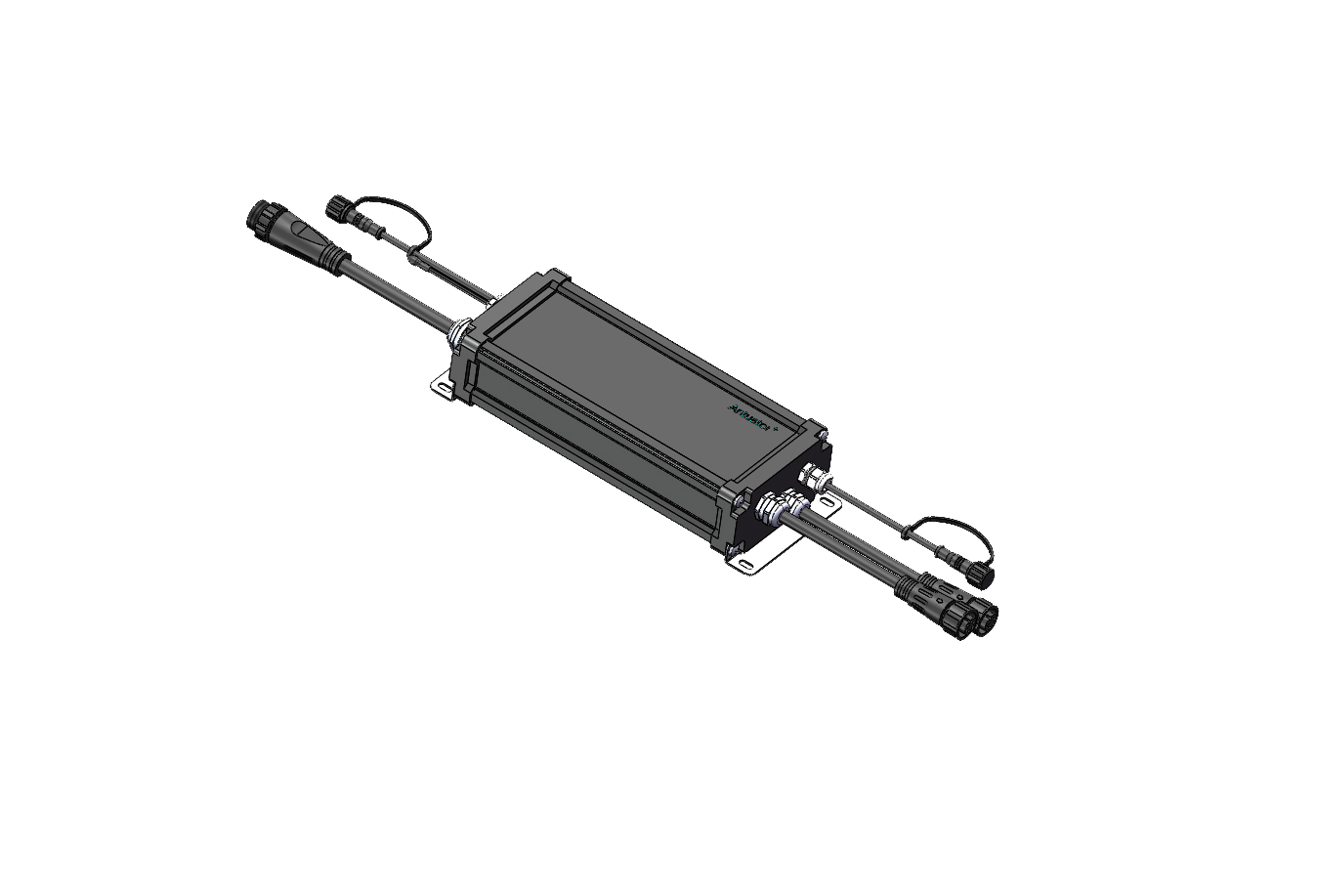

 ANT-12
 ANT-12
Home Products Control Boxes ANT-12
Specifications

Power supply input voltage

DC9V-36V, with anti-reverse protection

Quiescent current

Max 200mA

Drive capability

≤15A*2 channels @Work duty S3(Work 2 minutes,stop 18 minutes)

Overcurrent protection/Overvoltage protection /Undervoltage protection

Support

Hall sensor signal loss detection

Support

Workable actuator quantity

≤2

Actuator cable length

≤10m

 Workable actuator models

ANT-26/ANT-35/ANT-38/ANT-45/ANT-52, with Hall sensor

Actuators synchronization accuracy

±5mm/10000 cycles

Remote control type

433.92M@FSK

Max allowed paired remote control qunatity2
Remote control distance≤20m
Hall sensor working voltageDC5V
Touch screen programmer communication typeRS485, power voltage 12V
User communication interfaceRS485, Format 9600/8/N/1, Protocol MODBUS
Rocker switch interface
Switch type input
Working temperature-20℃ - 70℃
Working humidity75%
Waterproof levelIP67
Housing materialAluminum Alloy
Sizes247mm(L)*93.5mm(W)*51.5mm(H)

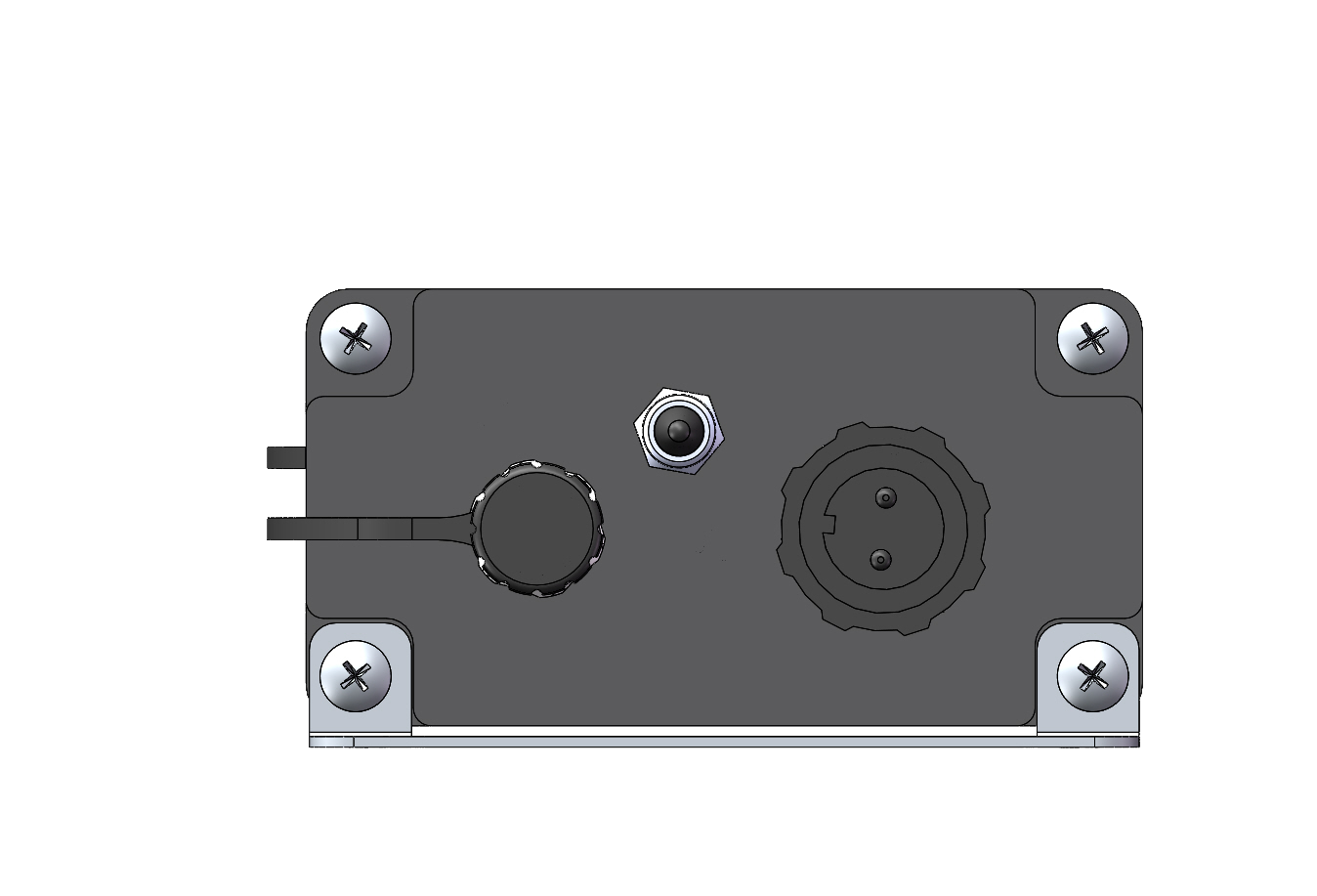

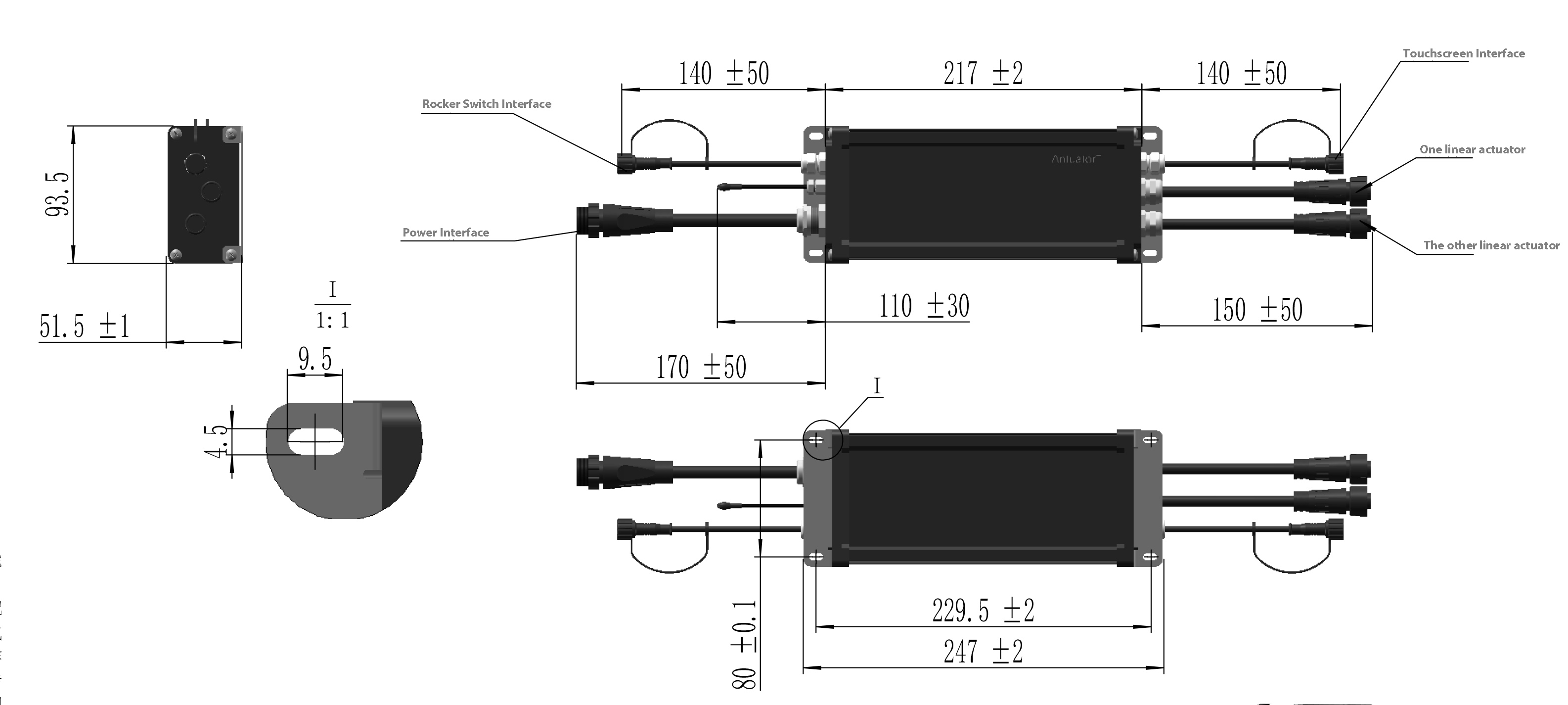

Siandard Dimension
