P07M is our latest evolution in RV roof automation, engineered for heavy-duty stability and seamless integration. Replacing the P05 series, this next-generation system features a more robust scissor structure powered by the high-precision ANT-38 linear actuator.
Designed with the needs of modern manufacturers in mind, the P07M offers optimized geometry for better space utilization when folded, and synchronized motion with zero-offset lifting to ensure perfect roof alignment every time. Its plug-and-play integration via a simplified wiring harness significantly accelerates OEM assembly. Whether for large-scale production or premium retrofitting, the P07M delivers unmatched reliability even in the most extreme environments.
Roof type | Flat roofs |
Main features | Open and close pop-up roofs electrically and manually |
Max load capacity | 100KG |
Input Voltage | 12V DC |

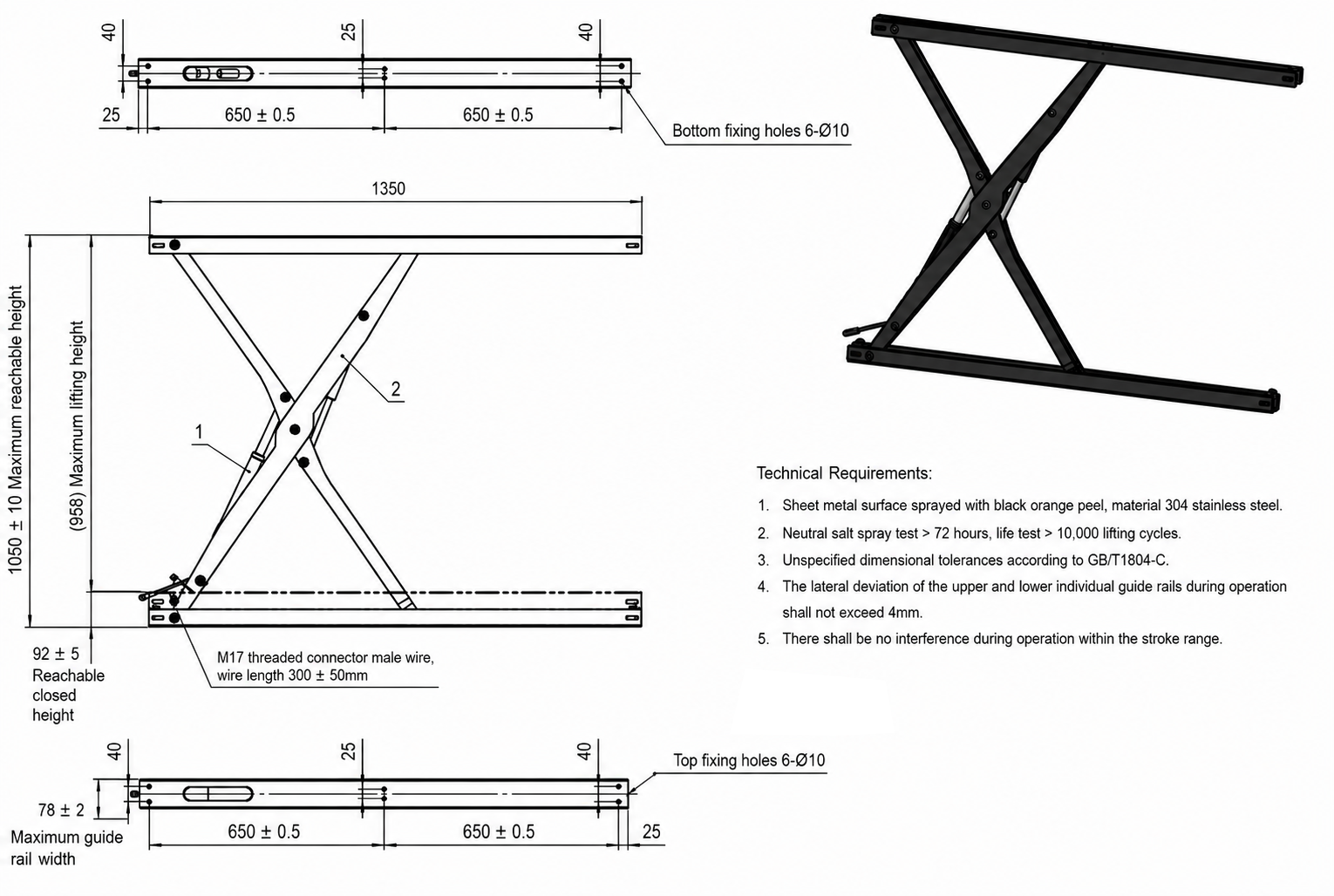

Max lifting height | 1050mm±10 |
Closing height | 92mm±5 |
Installation width | 78mm±2 |
Net Lift Height | 958mm±15 |
Dual-Mode Control:Enjoy ultimate peace of mind with Electric & Manual integrated control. Open/close with a single click via the synchronized ANT-38 linear actuator, or use the Manual Override feature for effortless operation during power loss or emergency situations.
Enhanced Performance:Max Load Capacity: Customizable up to 100 kg.Max Lifting Height: 1050 mm.
Compact Installation Design:System Width: 78 mm.System Closing Height: 92 mm (Low-profile design).
Customizable Options:Tailor the system to your needs with adjustable lifting strokes, reinforced load capacities, and manual backup configurations specifically designed for OEM vehicle integration.
