Supports size customization, flexibly adaptable to different stroke and installation requirements.
Upgraded high-strength composite nut for stronger load capacity, better wear resistance, and durability.
Slider structure design significantly reduces front and rear installation distance, ideal for compact spaces.
Adjustable rear end direction, supporting multi-angle installation, highly adaptable to on-site conditions.
Specially designed for pickup truck roof tent lifting systems, featuring compact size, high protection rating (IP55), and excellent reliability, suitable for variable outdoor environments and frequent start-stop operations.
Voltage(V) | 24V | Duty Cycle | 10%, 2 min ON / 18 min OFF | |
No-load current(A) | ≤1.0A | Service Life | ≥ 200h | |
Load current(A) | ≤5A | Operating Temperature | -20℃ ~ 60℃ | |
Max. power(W) | 120W | Storage Temperature | -40℃ ~ 70℃ | |
Stroke | 100-1000mm(customizable) | Screw Material | #45 Steel | |
Limit switch | Built-in | Telescopic Tube Material | 316 Stainless Steel | |

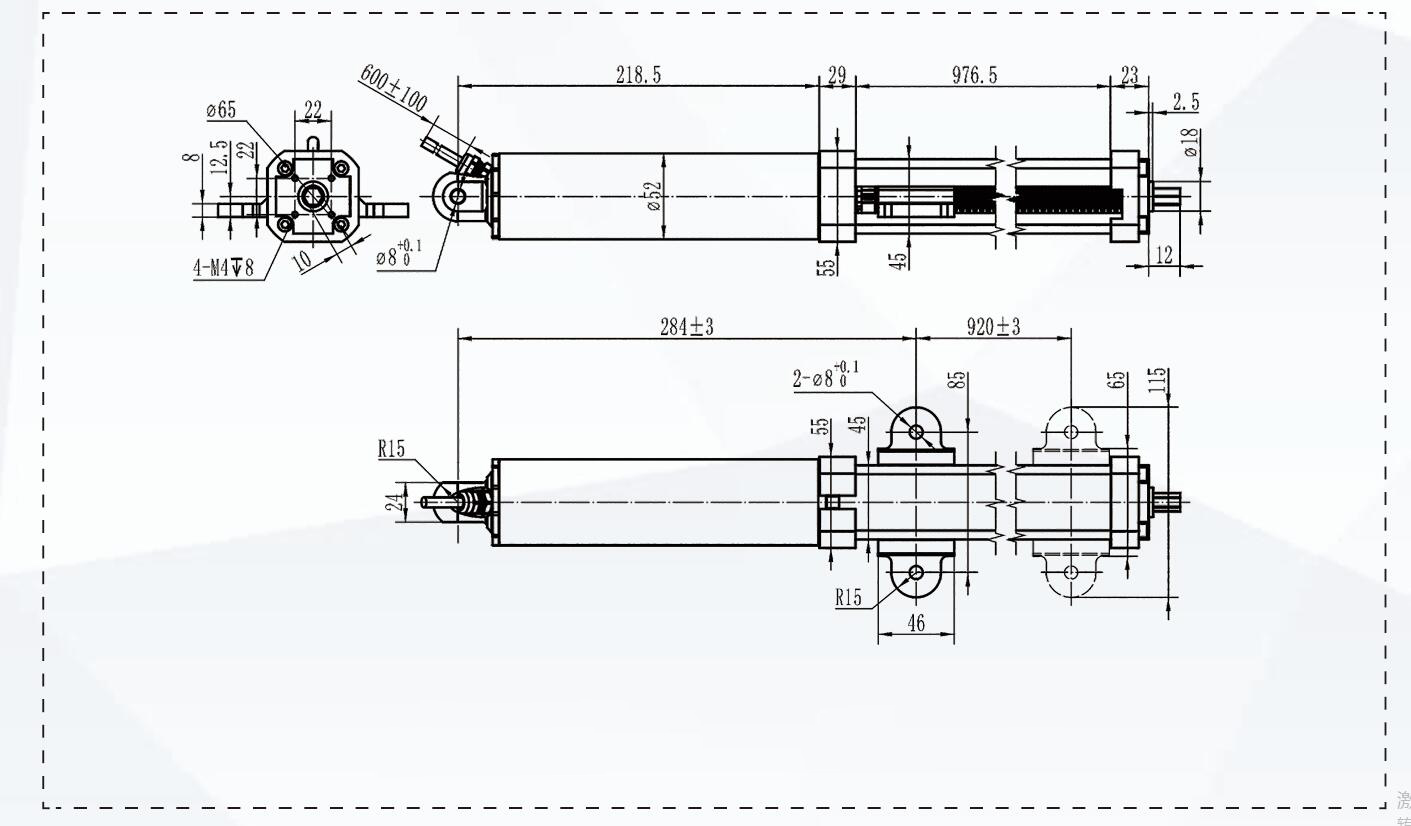

Installation Dimensions | 300mm | Nut Material | Engineering Plastic | |
Load Noise | ≤ 80dB | Color | Black / Silver | |
Protection Rating | IP55 (customizable) | Cable Length | 1.5m (customizable) | |
Linear Clearance | 0.5–1mm | Certification | CE | |
Thrust | Pull Force | Self-lockingForce | LoadSpeed | No-load Speed |
4100N | 4100N | 4100N | 5.5mm/s | 7mm/s |
