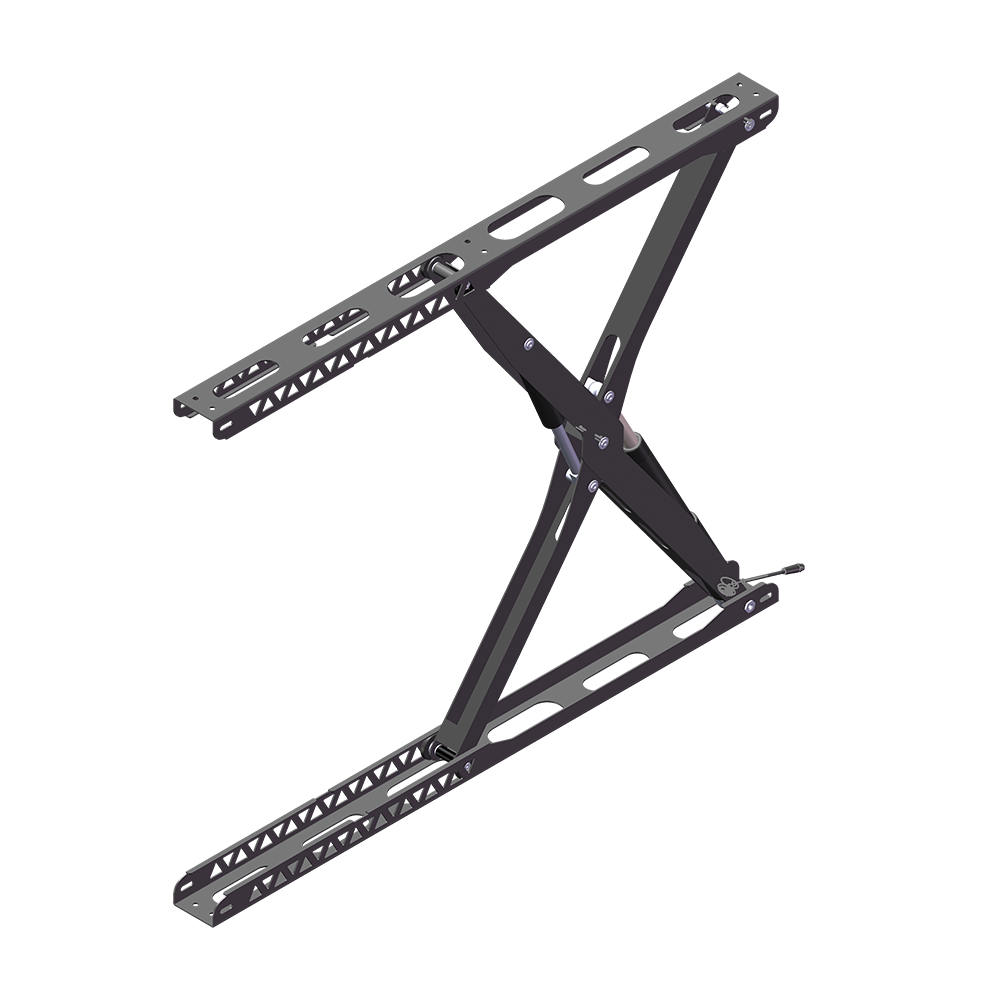

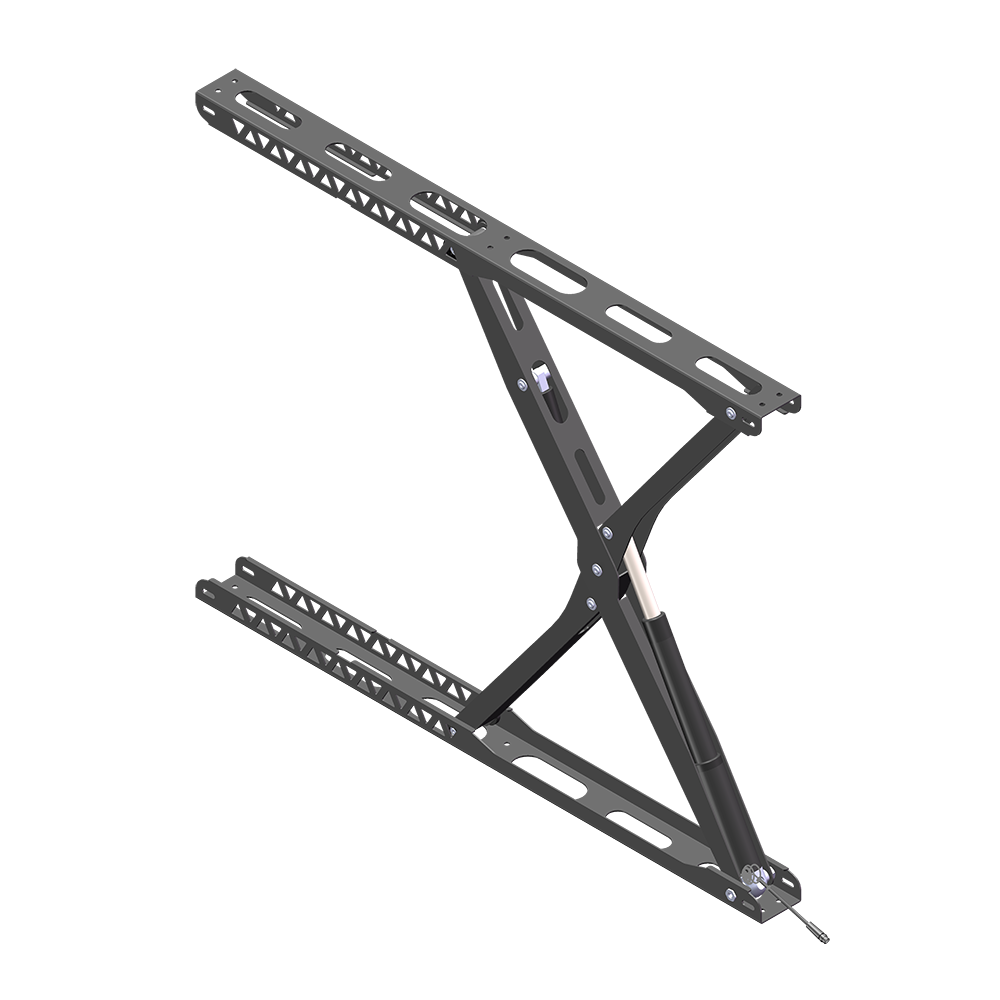

Originally developed for military command centers, the P06 is a high-performance roof lift system now available for premium and expedition RVs. It features a superior 250kg load capacity and an extended 1050mm lifting height, ensuring rapid 60s deployment even in extreme environments from -40°C to +75°C. With its slim 104mm profile and IP67 protection, the P06 is the ultimate military-grade solution for manufacturers seeking unmatched reliability in heavy-duty off-road applications.
Roof type | Flat roofs |
Main features | Open and close pop-up roofs electrically |
Max load capacity | 250KG |
Input Voltage | 12V DC |
Max lifting height | 1050mm±10 |
Closing height | 108mm±5 |
Installation width | 104mm±3 |
Net Lift Height | 825mm±15 |
Military-Grade Automatic Control:Originally developed for tactical applications, the high-torque ANT-52 system ensures a smooth, 60-second synchronized deployment with a single click.
Extreme Load Performance:Max load capacity: 250 kg, max lifting height: 1050 mm. Engineered to handle the heaviest roof structures even in temperatures from -40°C to +75°C.

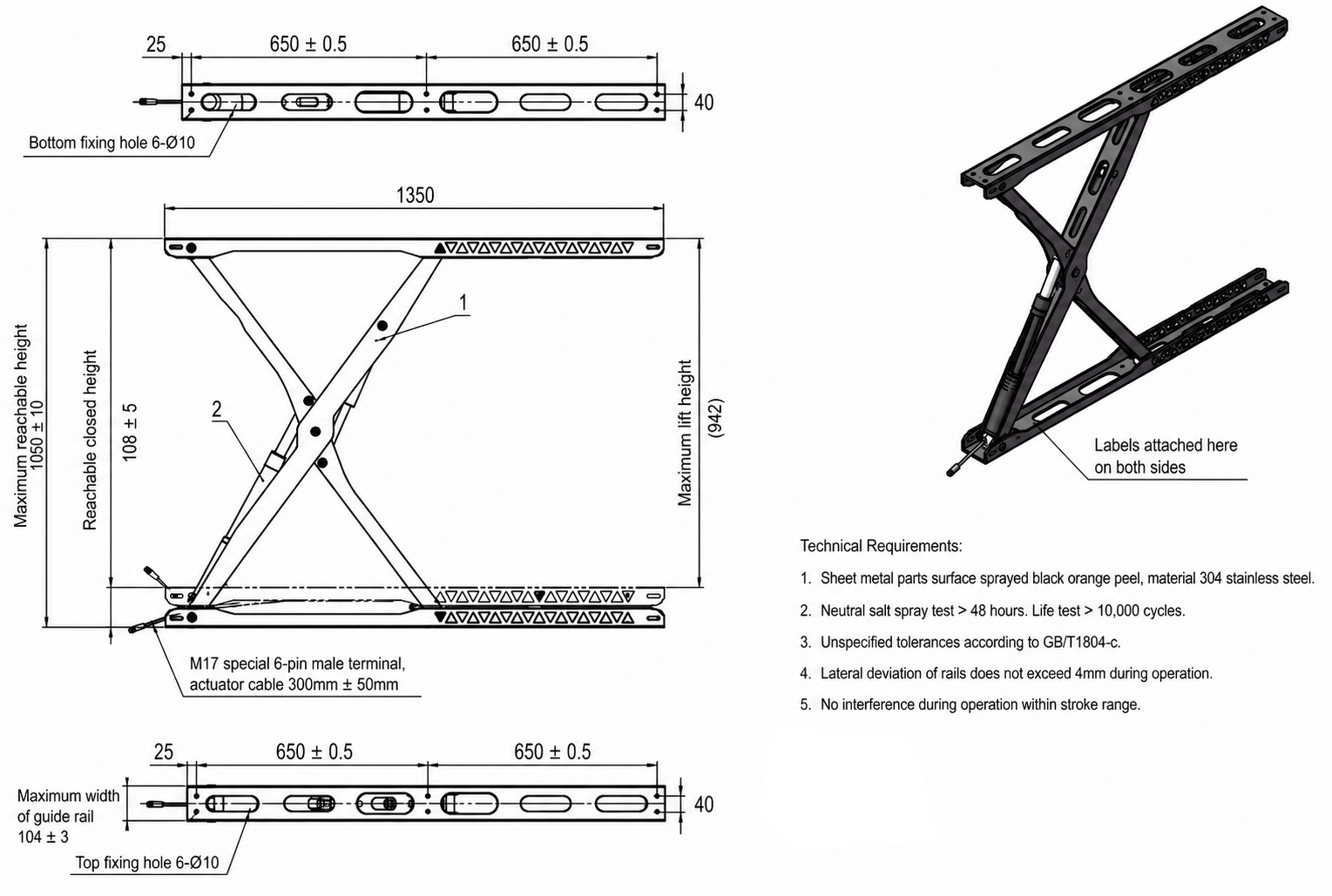

Heavy-Duty Compact Design:System width: 104 mm, system closing height: 108 mm. A robust yet low-profile architecture designed for high-strength durability.
Customizable Options:Tailor the system to your specific mission with adjustable lifting heights, reinforced payloads, and bespoke mounting solutions for OEM integration.
