CART-P04L is Engineered for Flat Roofs with Dual Operation. We can offer both motorized lifting and manual lowering capabilities. This versatile system allows for seamless roof operation with a one-click automatic control, and ensures reliable manual operation in case of emergencies.
Perfect for caravans, the CART-P04L offers a powerful, reliable, and flexible solution for flat-roofed RVs, ensuring convenience and durability. With its easy installation and dual-operation features, it’s the ideal choice for RV owners who want both automated and manual control.
Elevate your caravan experience with the CART-P04L—a versatile, high-performance roof lift system for all your outdoor adventures.

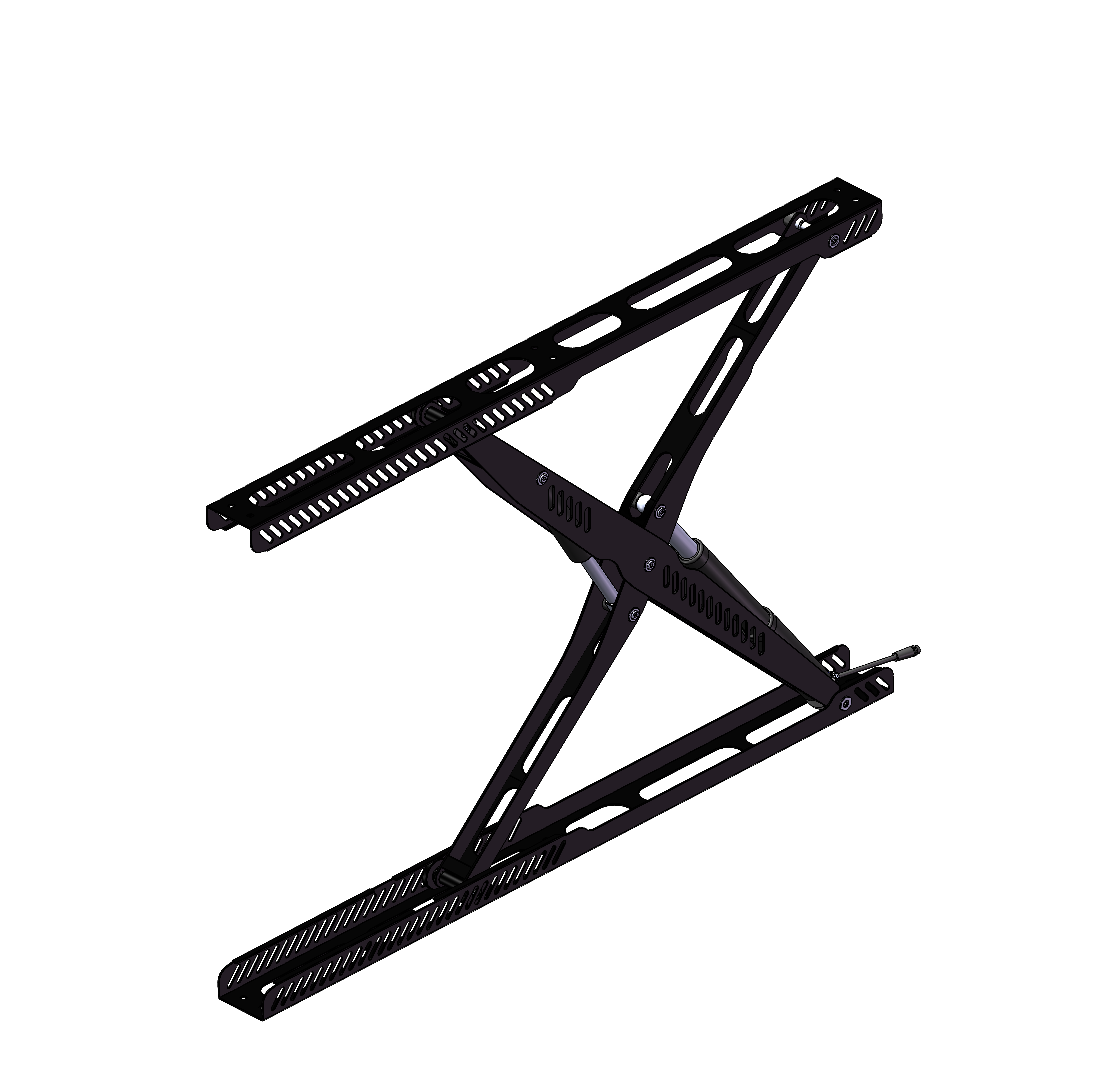

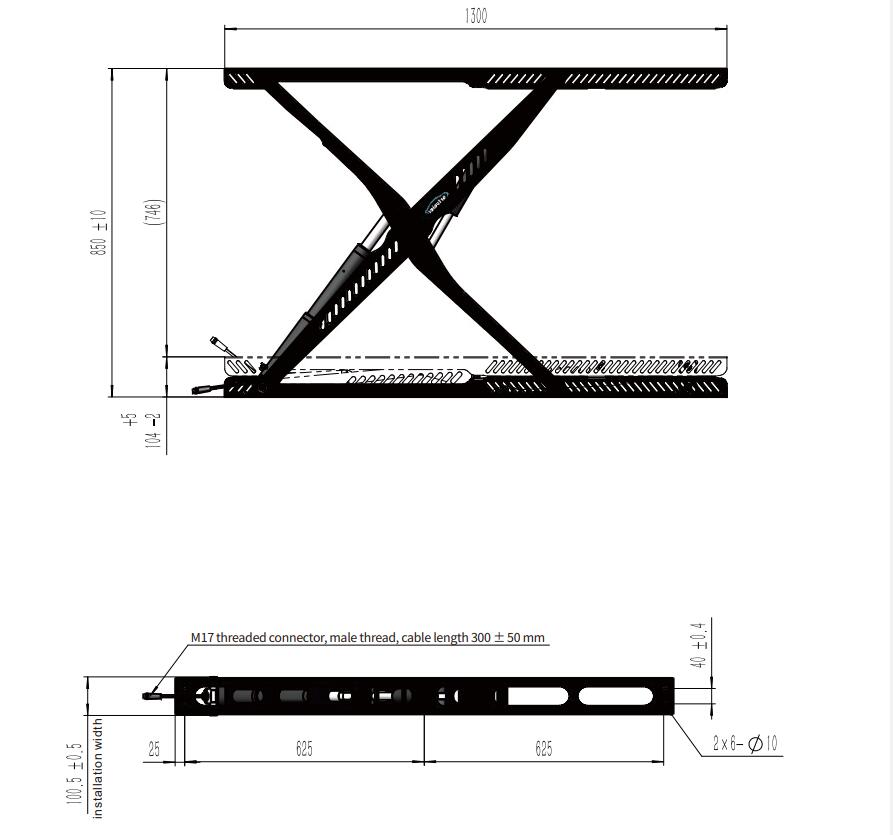

CART-P04L
Roof type | Flat roofs |
Main features | Open and close pop-up roofs electrically |
Max load capacity | 200KG |
Lifting height | 850mm |
Lifting time | ≤45s at max load |
Closing height | 104mm |
Installation width | 100.5mm |
Installation length | 1300mm |
CART-P04L-M
Roof type | Flat roofs |
Main features | Open and close pop-up roofs electrically and manually |
Max load capacity | 200KG |
Lifting height | 540mm |
Lifting time | 20s at max load |
Closing height | 110mm |
Installation width | 104mm |
Installation length | 1300 |
CART-P04L
CART-P04L-M
Automatic control: Open and close the pop-up roof effortlessly with a single click.
Manual backup: Easily operate the roof manually in case of power failure or for emergencies.
High performance:Max load capacity: 200 kg,max lifting height: 850 mm,lifting time: opens or closes fully in just 20 seconds.
Customizable options:Adjustable lifting height and load capacity tailored to meet specific needs.
