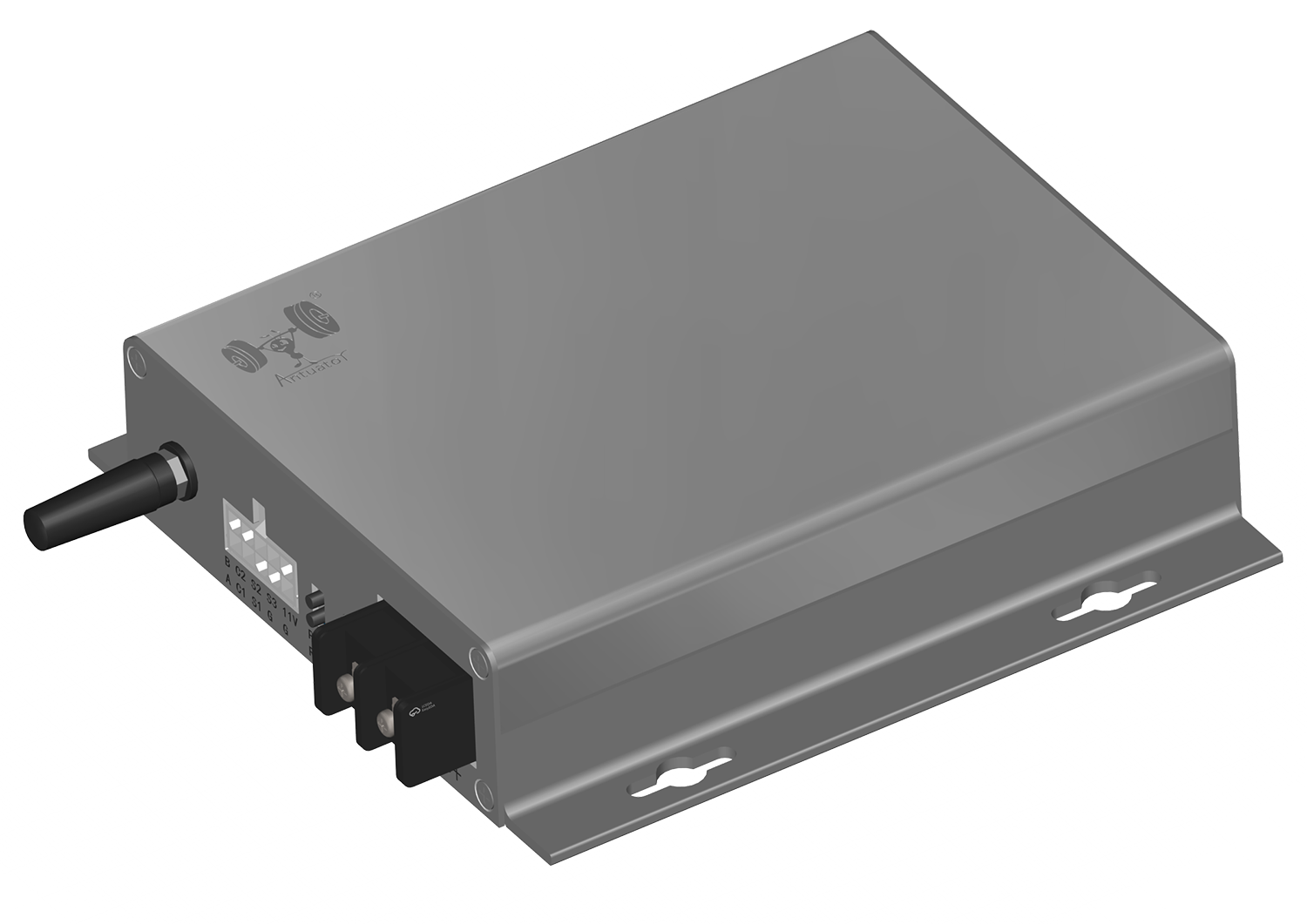

The ANT-21 is a high-precision synchronization controller designed to manage 1 to 4 Hall-effect actuators simultaneously. Featuring integrated protections for over-current and sync-errors, it ensures military-grade reliability in harsh outdoor and industrial environments. With a built-in standard MODBUS protocol, it offers OEMs an efficient, plug-and-play solution for secondary development and automated system integration.
Power supply input voltage | |||
Quiescent current | Max 300mA | ||
Drive capability | ≤15A*4 channels @Work duty S3（Work 2 minutes，stop 18 minutes） | ||
Overcurrent protection/Overvoltage protection /Undervoltage protection | Support | ||
Hall sensor signal loss detection | Support | ||
Workable actuator quantity | ≤4 | ||
Actuator cable length | ≤10m | ||
Workable actuator models | ANT-26/ANT-35/ANT-38/ANT-45/ANT-52, with Hall sensor | ||
Actuators synchronization accuracy | ±5mm/10000 cycles | ||
| Remote control type | 433.92M@FSK | ||
| Max allowed paired remote control qunatity | 2 | ||
| Remote control distance | ≤20m | ||
| Hall sensor working voltage | DC11V | ||
| Touch screen programmer communication type | RS485, power voltage 12V | ||
| User communication interface | RS485, Format 9600/8/N/1, Protocol MODBUS | ||
| Rocker switch interface | Switch type input | ||
| Working temperature | -20℃ - 70℃ | ||
| Working humidity | 75% | ||
| Waterproof level | IP34 | ||
| Housing material | Aluminum Alloy | ||

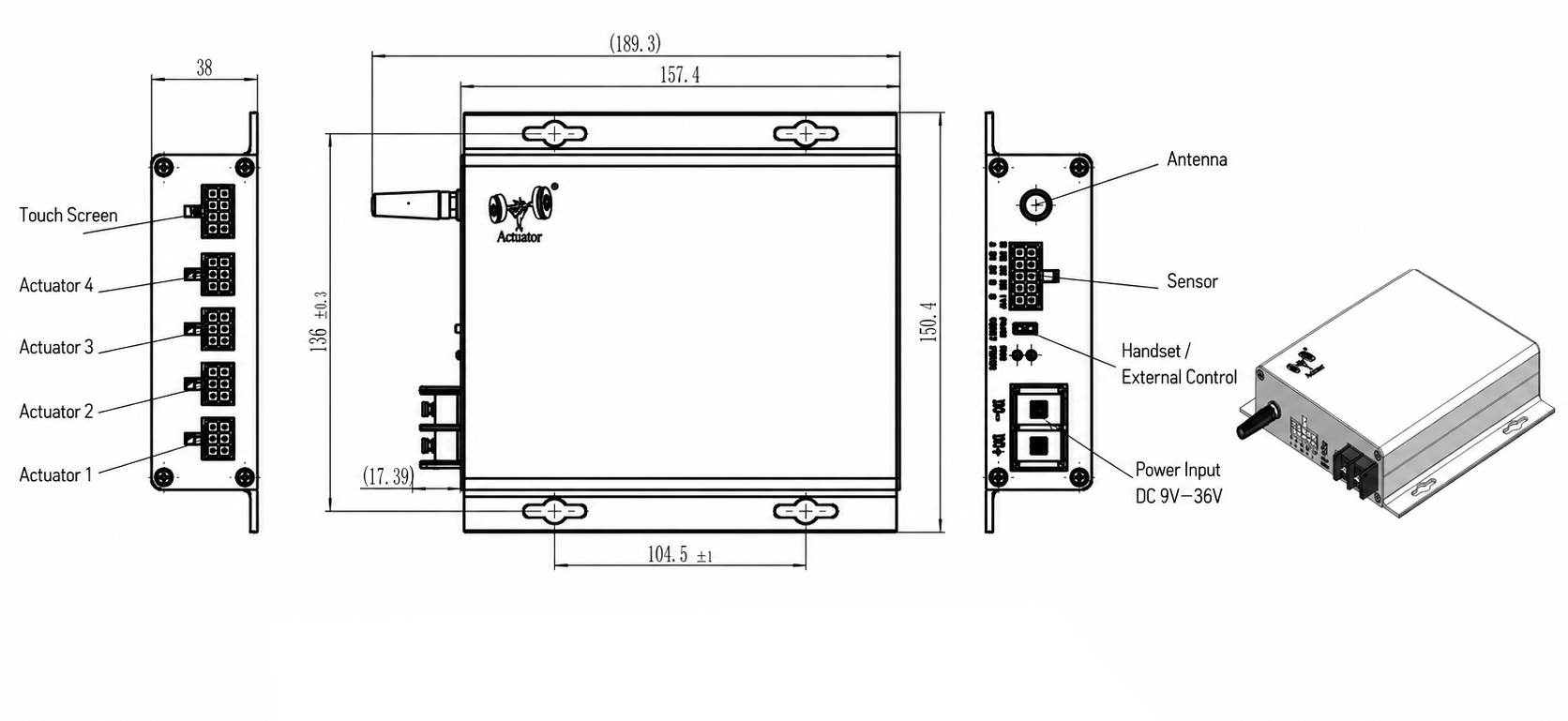

| Sizes | 157.4mm(L)*150.4mm(W)*38mm(H) |
