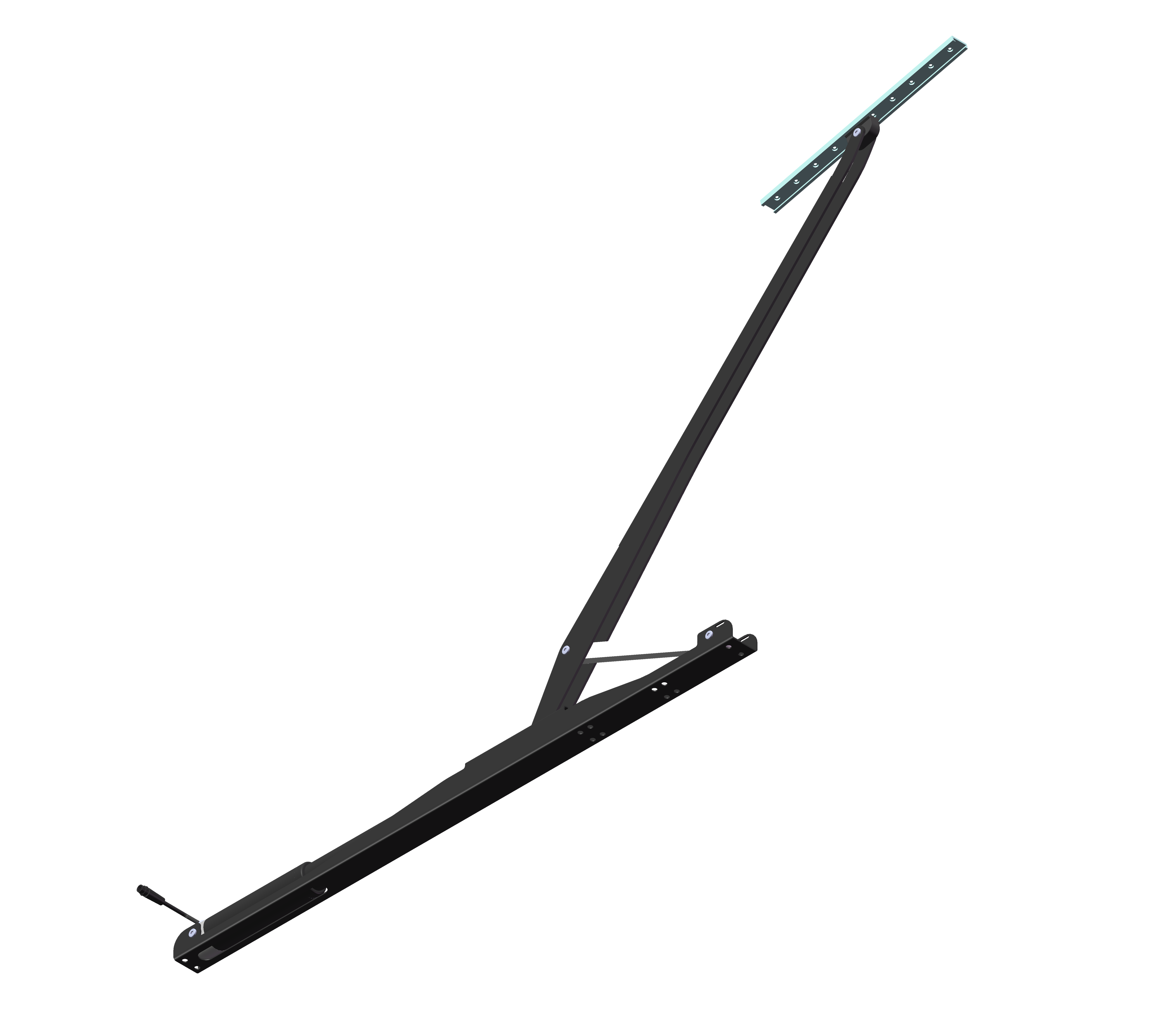

The X03M Electric Pop-top Roof Lift System is specifically engineered for heavy-duty camper roofs requiring higher lifting capacity and enhanced operational reliability.
Designed for roof loads ranging from 70 kg to 100 kg, the X03M provides smooth and synchronized lifting while maintaining a compact installation profile. Compared with conventional roof lifting systems, it delivers significantly higher lifting force, making it suitable for camper roofs carrying roof racks, solar panels, kayaks, cargo boxes, or other additional equipment.
The integrated manual override ensures the roof can still be operated safely during power failure, improving reliability for outdoor travel and emergency situations.
Powered by a 12 VDC system and controlled by intelligent controller, the X03M offers synchronized operation, obstacle detection, overcurrent protection, and voltage monitoring to ensure safe and stable performance.
Roof type | Tilted roofs |
Main features | Open and close pop-up roofs electrically and manually, designed for heavy-duty roofs with advanced drop control. |
Rated Roof Load | 70–100 kg |
Lifting time | 20–25s |

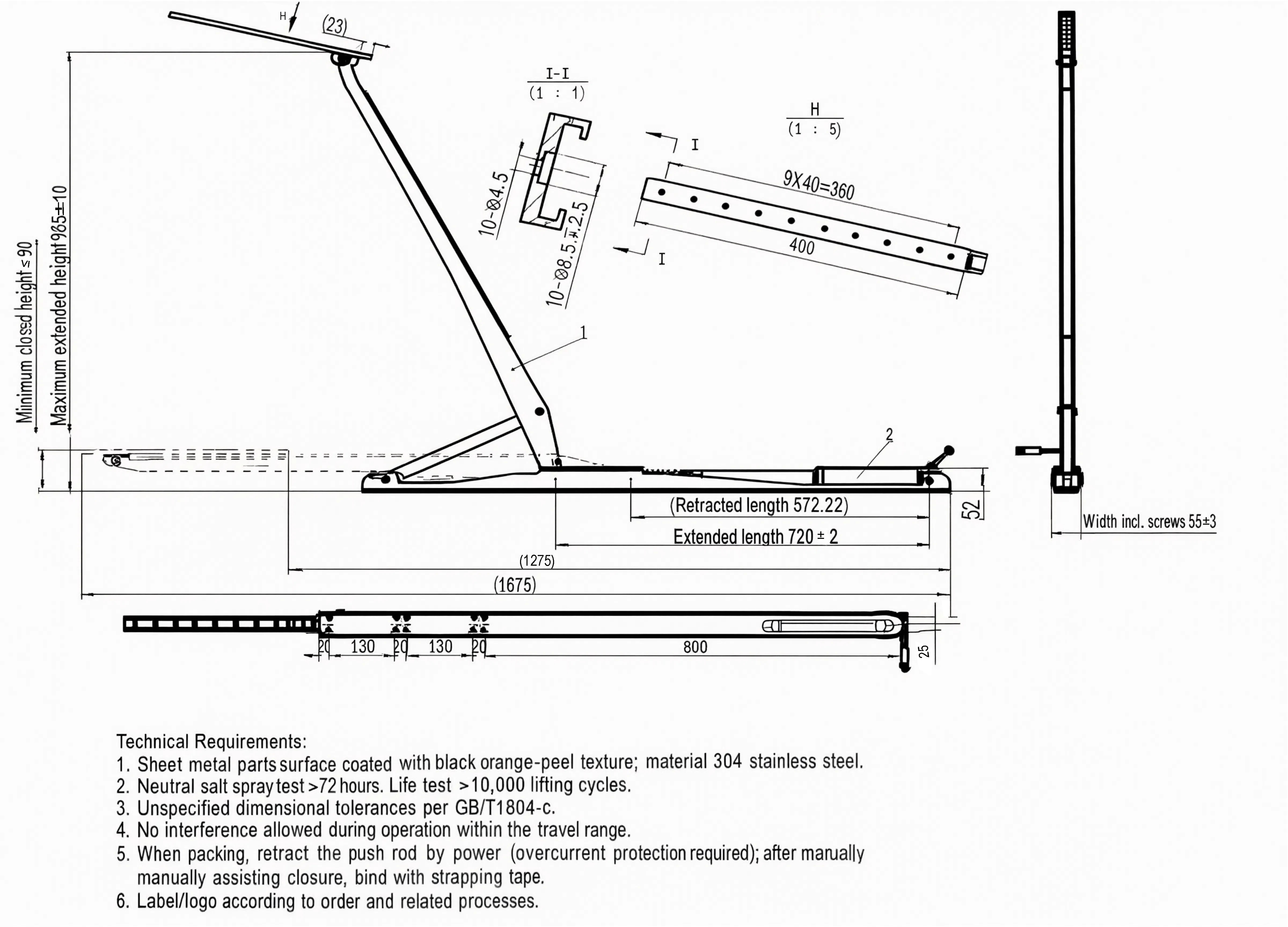

Max lifting height | 965mm ±10 |
Closing height | ≤ 90mm |
Installation width | 55mm ±3 |
Net Lift Height | 875mm ±10 |
Powerful Automatic Operation: Smooth, synchronized lifting at the touch of a button for effortless roof operation.
Emergency Manual Override: Continue operating the roof safely during power failure with the integrated manual crank mechanism.
Higher Load Capacity: Engineered for 70–100 kg pop-top roofs, providing reliable lifting performance for vehicles carrying rooftop accessories and additional equipment.
Flexible Customization: Available with customized stroke lengths, installation dimensions, lifting heights, and system configurations to meet the specific requirements of camper van manufacturers and conversion specialists.
