High Speed Meets Total Safety: Inside ANTUATOR’s Active Self-Locking Actuator Technology
In electric linear actuator design, speed and self-locking capability have long been a fundamental compromise.
Traditional linear actuators rely primarily on lead screw friction to achieve self-locking. Single-start lead screws offer reliable self-locking but have a small lead pitch, severely limiting movement speed. On the other hand, multi-start lead screws deliver higher speed and efficiency, but significantly reduce lead screw friction. As a result, when power fails, external load forces can drive the actuator in reverse—causing dangerous back-driving or positional drift.
How can an actuator run faster while remaining completely secure when power is cut?
To solve this challenge, ANTUATOR has engineered an Active Self-Locking Mechanism—a breakthrough technical design that harmonizes high-speed performance with reliable power-off holding capability.
To overcome the inherent self-locking limitations of high-speed, multi-start lead screws, ANTUATOR developed an inline active self-locking mechanism.
The mechanism utilizes a coaxial annular torsion spring friction lock paired with an active release slider, compactly integrated within the actuator's reduction gearbox.
The working principle is straightforward yet highly effective:

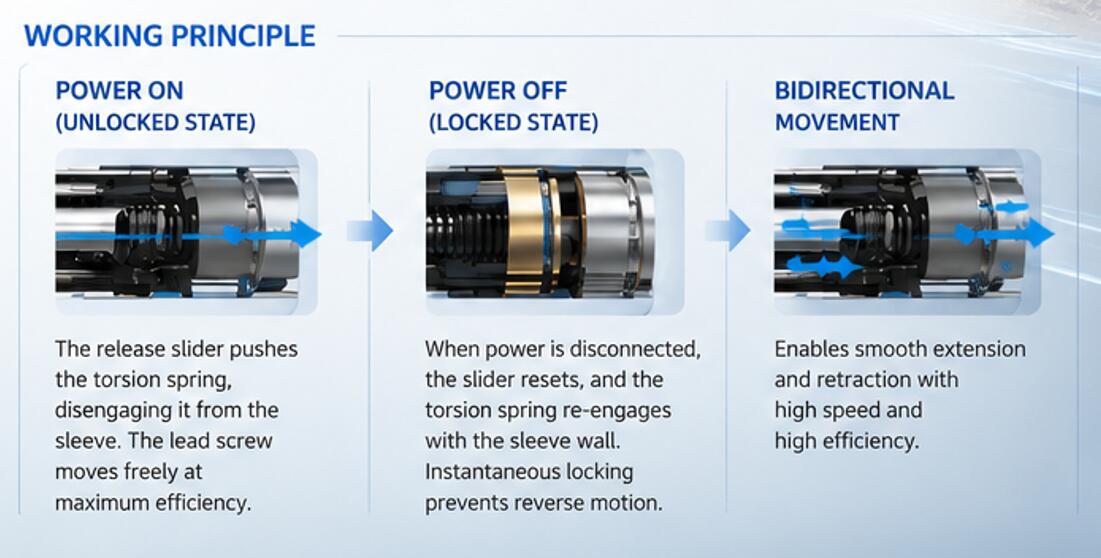

Power ON (Unlocked State): When the motor runs, the release slider pushes the torsion spring, disengaging it from the inner wall of the sleeve. The lead screw moves freely in both forward and reverse directions at maximum efficiency.
Power OFF (Locked State): When power is disconnected, the slider resets, and the torsion spring re-engages with the sleeve wall. Any reverse load applied to the output shaft triggers a instantaneous locking torque in the spring, mechanically blocking reverse motion.
Unlike electromagnetic brake systems that require continuous holding current or complex external wiring, mechanical self-locking offers distinct advantages:
0W Static Power Consumption: The holding force is 100% mechanical and requires zero electrical power during lock state.
Fail-Safe Security: For applications in RV pop-top lifts, marine equipment, medical beds, and industrial automation, an unexpected power outage will not cause the mechanism to slide or collapse, adding a vital layer of operational safety.
Adding a self-locking feature shouldn't mean adding bulky external modules. External braking assemblies increase total part counts, complicate mounting, and expand spatial footprints.
ANTUATOR integrated the active locking mechanism directly inside the Φ52mm standard outer diameter gearbox housing. By eliminating extra axial length and optimizing the precision tolerance between the torsion spring, sleeve, and slider, self-locking evolves from an "added component" into a seamlessly built-in core feature.
Holding a static load once is easy; ensuring consistent holding force across tens of thousands of cycles requires advanced engineering.
Premium Material & Processing: The core torsion spring is manufactured from high-grade 65Mn spring steel, paired with precision-ground friction surfaces and specialized lubrication to minimize long-term wear.
Rigorous Validation: The mechanism underwent extensive testing—including locking torque verification, backlash control, long-cycle durability, and high/low-temperature environmental tests.
Verified Performance: Prototype testing data confirms a static self-locking torque reaching ≥27 N·m, ensuring rock-solid stability under heavy loads.
ANTUATOR’s active self-locking technology is built with scalability in mind. By parameterizing the torsion spring wire diameter, coil turns, and sleeve dimensions, this mechanism can be adapted across multiple actuator sizes. Future iterations are also exploring dual-torsion spring composite structures to combine self-locking with mechanical overload protection.
Key application fields include:
RV & Camper Pop-Tops: Fast opening with complete safety against sudden power loss.
Marine & Yacht Automation: Secure position holding against heavy wave impact and engine vibration.
Industrial & Medical Equipment: Precise, quiet, and fail-safe motion control for ergonomic workstations and care equipment.
With active self-locking technology, ANTUATOR bridges high-speed transmission and reliable mechanical holding—delivering motion control solutions that are not just fast, but inherently safe.
