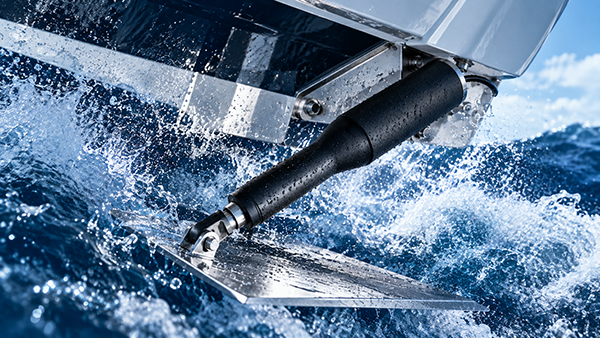

For boaters and marine engineers, precision control on the water isn't just about performance—it's about survival in harsh conditions. Trim tabs and interceptor systems play a vital role in adjusting a vessel’s attitude, lowering the bow, improving fuel efficiency, and smoothing out choppy rides.
However, the hardware driving these flap systems operates in one of the most punishing environments on earth. Continuous salt spray, total immersion, and constant vibration mean that ordinary industrial actuators won't last long.
To prove what true marine-grade reliability looks like, the Antuator ANT-63AL Electric Linear Actuator recently underwent rigorous third-party testing by SGS. Here is a breakdown of how it performed against international marine durability standards—and what that means for boat builders and retrofitters.
When mounted near the waterline, an actuator faces relentless water splashes, heavy rain, and occasional submersion. A minor seal failure can cause short circuits, corrosion of internal gears, or total system lockup.
To verify its sealing integrity, the ANT-63AL was tested under IEC 60529 protocols by SGS:
IP6X Dust Ingress Test: The unit was subjected to 2 hours of continuous, fine dust exposure. Post-test inspection confirmed zero dust penetration inside the housing.
IPX7 Submersion Test: The actuator was completely submerged under water for 30 minutes. After extraction, internal inspections revealed no water entry whatsoever.
What this means on the water: Whether your vessel is tackling high-speed spray or sitting low at dock, an IP67 rating ensures the internal motor and electronics remain bone-dry and fully operational.
Saltwater is notoriously aggressive. Over time, salt crust forms on metal joints, pitted surfaces rust, and motor shafts seize up. For trim tab systems, corrosion resistance isn't optional—it's essential.
The ANT-63AL underwent a 500-Hour Neutral Salt Spray (NSS) Test in accordance with ASTM B117-26 standards:
The Requirement: The baseline target requested for standard marine hardware was a Grade 6 corrosion rating.
The Result: All three test samples achieved a Grade 10 corrosion resistance rating—the highest possible score with no visible red rust or surface degradation.
Functional Integrity: Full functional checks performed before and after the 500-hour exposure confirmed that extension, retraction, and load-holding operated smoothly without mechanical binding.
Lab certifications are crucial, but real-world engineering requires more than passing a single test. To deliver consistent pitch and roll control under heavy wave loads, a marine actuator needs:
High Dynamic Push/Pull Force: Capable of overcoming water resistance against trim plates at cruising speeds.
Compact Form Factor: Fitting into tight transom spaces without interfering with outboard motors or swim platforms.
Pre- and Post-Aging Reliability: Ensuring seals don't degrade or crack after thermal cycles and prolonged exposure to UV light.
Reliability on the water isn't built on promises; it's proven through data. By passing IP67 water/dust ingress and exceeding ASTM salt spray standards with a Grade 10 rating, the ANT-63AL Electric Actuator offers a field-tested solution for boat manufacturers, trim tab suppliers, and marine equipment designers.
Planning a marine motion control project or looking for reliable tab actuators?
| Feature | Tested Standard / Specification | Result |
| Dust Protection | IEC 60529 (IP6X, 2 Hours) | Pass (Zero dust ingress) |
| Water Protection | IEC 60529 (IPX7, 30 Min Submersion) | Pass (Zero water ingress) |
| Corrosion Resistance | ASTM B117-26 (500 Hours NSS) | Grade 10 (Exceeds Grade 6 target) |
| Primary Application | Marine Flaps, Trim Tabs, Hatch Lifts | Verified |
