Precision-engineered for quiet operation, the Antuator trim tab actuator combines a non-hydraulic, maintenance-free design.
Equipped with a strong planetary gearbox, the ANT-63 ensures long-term durability, even under high load on the trim tab.
Internal limit switches at both ends provide protection, guaranteeing reliable performance.
Fully corrosion-resistant and waterproof (IP67M), the ANT-63 eliminates the risks of oil leaks associated with hydraulic trim tabs.
5-year warranty for peace of mind.

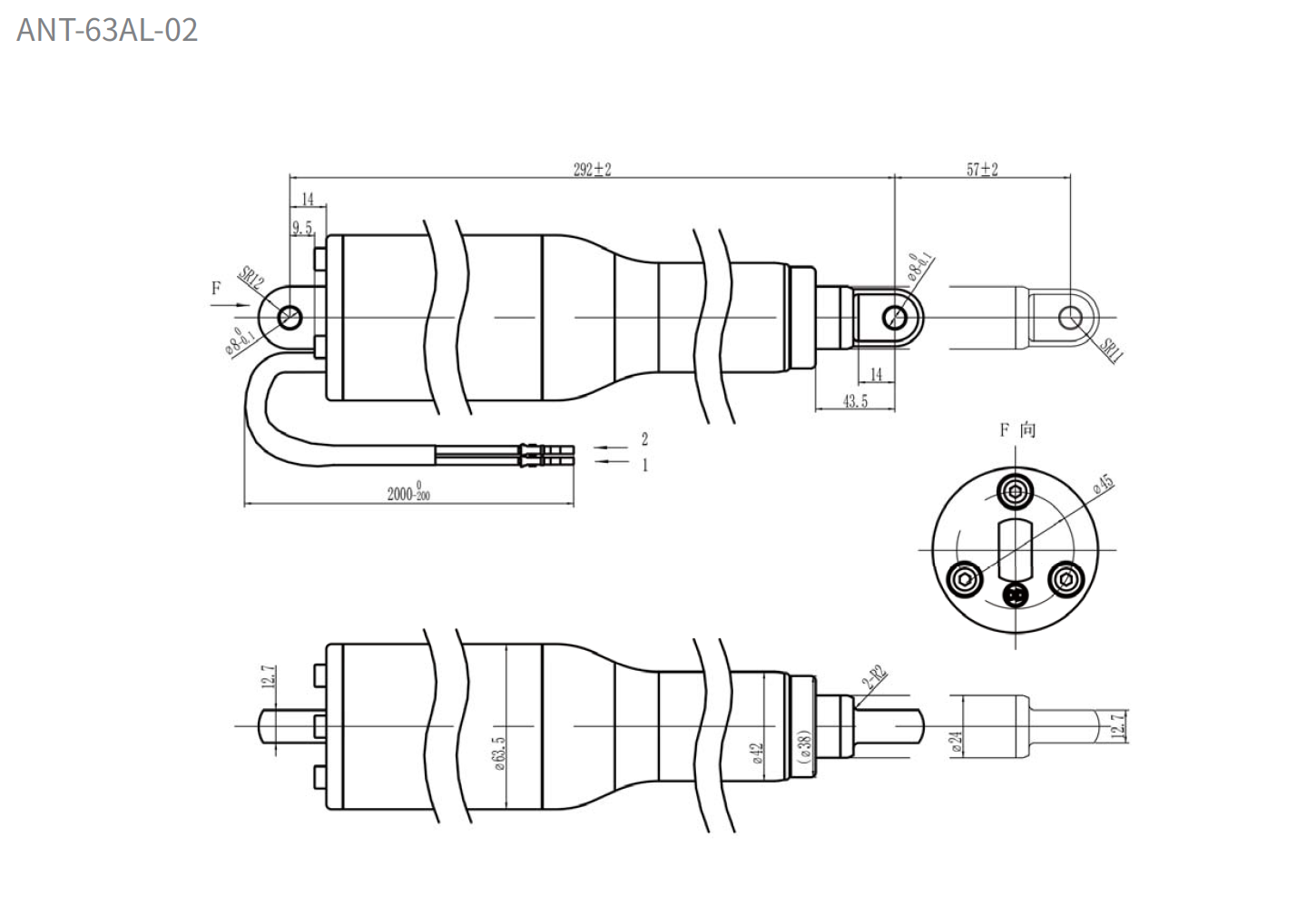

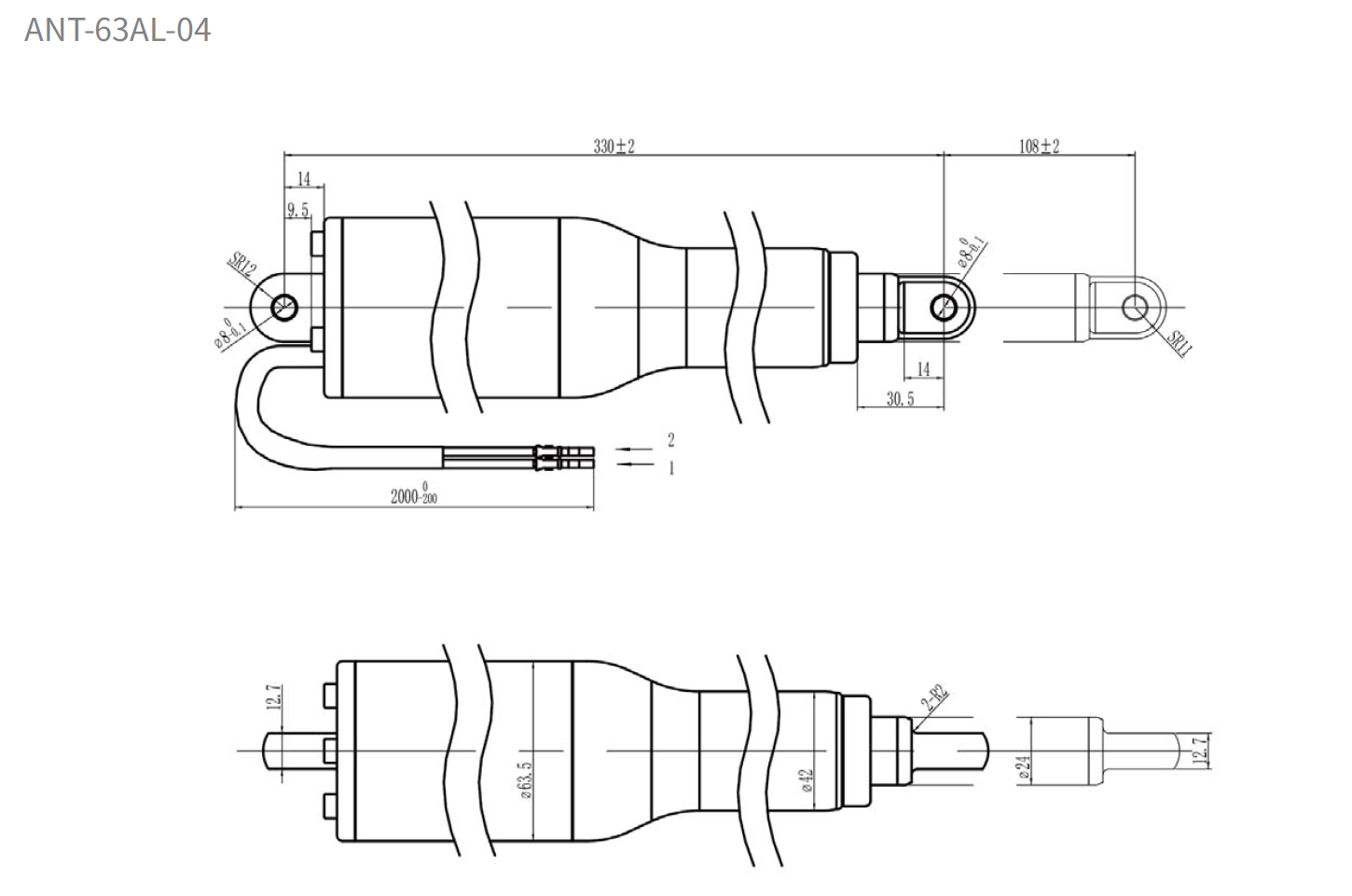

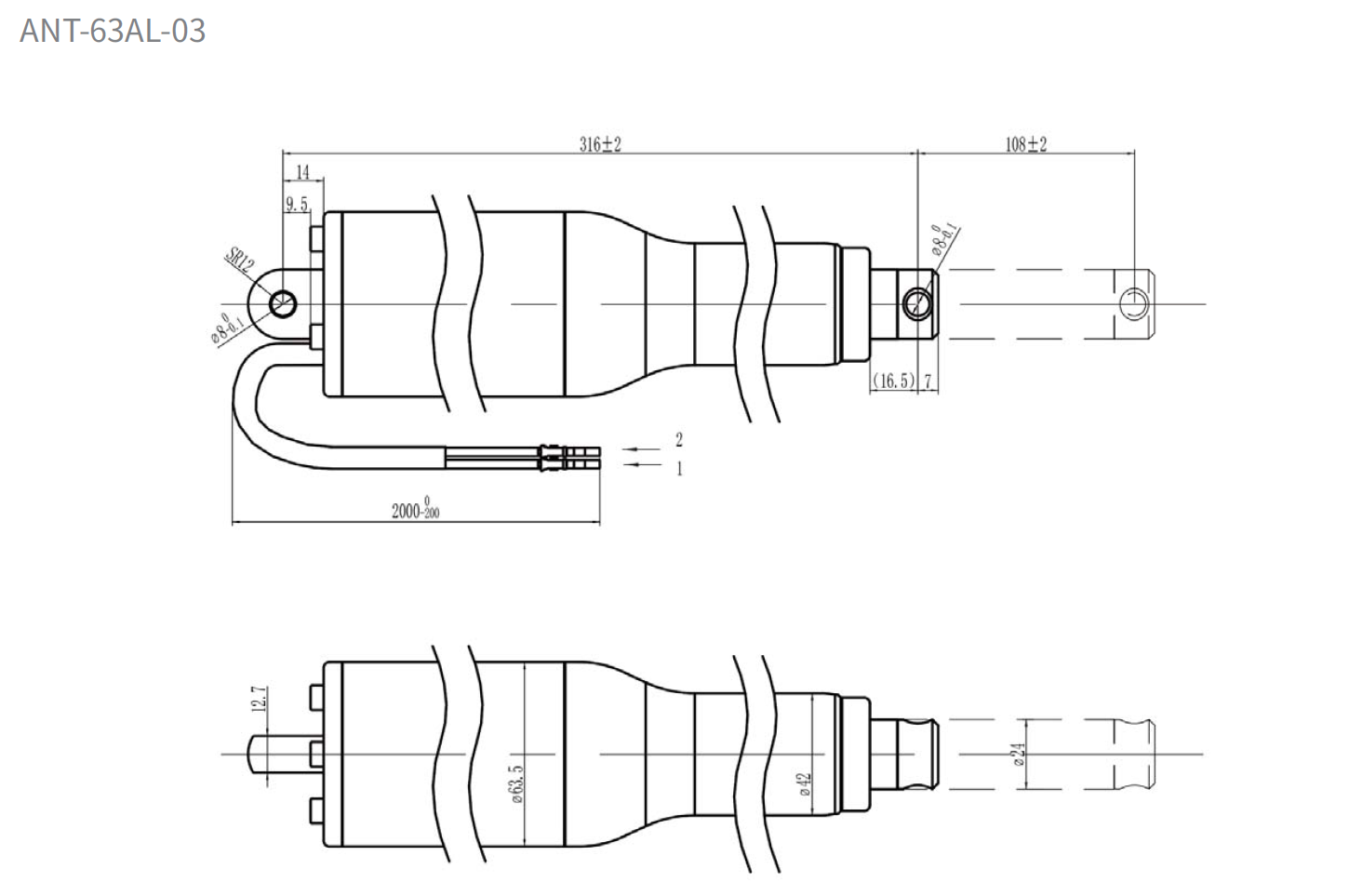

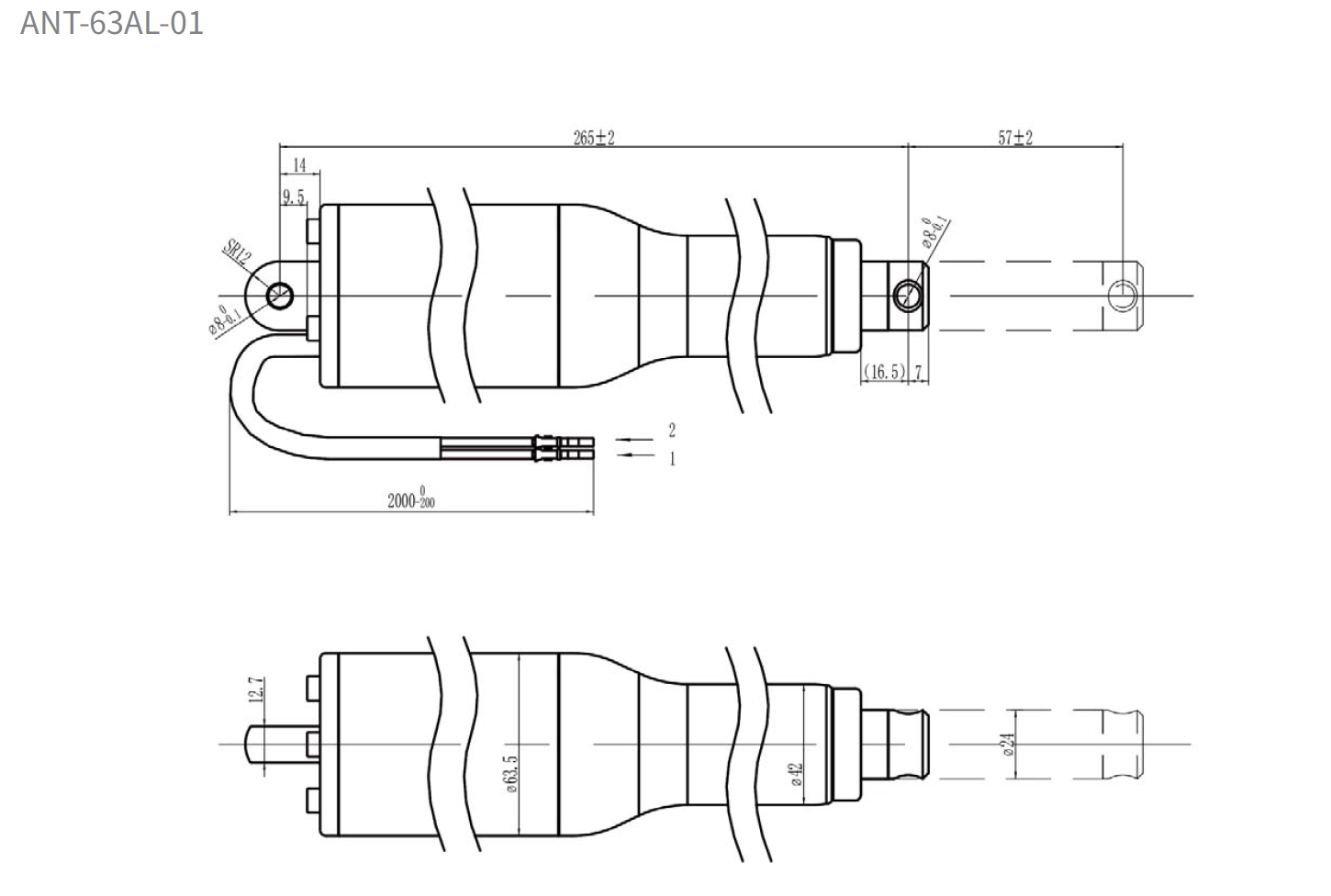

Model | ANT-63AL-01 | ANT-63AL-02 | ANT-63AL-03 | ANT-63AL-04 |
Voltage(DC) | 12V/24V | 12V/24V | 12V/24V | 12V/24V |
Stroke | 57mm(2-1/4’’) | 57mm(2-1/4’’) | 108mm(4-1/4’’) | 108mm(4-1/4’’) |
Length from hole to hole | 265mm(10-1/2’’) | 292mm(11-1/2’’) | 316mm(12-1/2’’) | 330mm(13’’) |
Load capacity | 2300N/507lbs | 2300N/507lbs | 2300N/507lbs | 2300N/507lbs |
Speed | 12mm/s(0.47’’/s) | 12mm/s(0.47’’/s) | 12mm/s(0.47’’/s) | 12mm/s(0.47’’/s) |
Top hole size | 8mm(5/16’’) or 9.5mm(3/8’’) | 8mm(5/16’’) | 8mm(5/16’’) or 9.5mm(3/8’’) | 8mm(5/16’’) |
End hole size | 8mm(5/16’’) | 8mm(5/16’’) | 8mm(5/16’’) | 8mm(5/16’’) |
Standard cable length | 2000mm(79’’) | 2000mm(79’’) | 2000mm(79’’) | 2000mm(79’’) |
Please note that ANTUATOR is able to customize any trim tab actuator according to your special needsIf any customization needed, please contact ANTUATOR team by email.
Cable lengths
Other stroke lengths available
Customized front, rear fixture
Installation size
Available in all RAL colours
