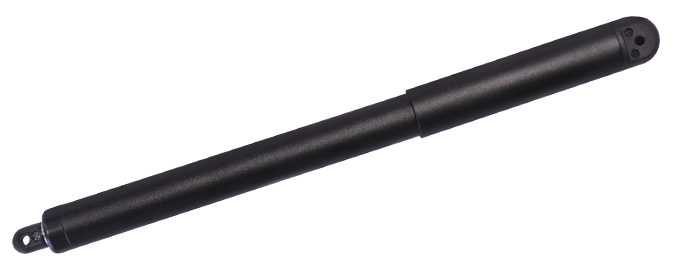

With a maximum diameter of just 16mm, the ANT-16 is designed for tight spaces where precision and compactness are key.
Perfect for space-constrained applications: Ideal for use in inspection robots, navigation lights, and other devices requiring efficient performance in limited spaces.
Features and options
| Max Load in push(N) | 50N |
| Max Loadin pull(N) | 50N |
| Voltage(V) | 12V |
| No-load current(A) | ≤0.07A |
| Load current(A) | ≤0.25A |
| Max.Power(W) | 3W |
| Material ofouter tube | 6063 Aluminium |
| Material oflead screw | Trapezoid steel |
| Materialof piston rod | 316 stainless steel |
| Material ofthe nut | Engineering plastic |
| Protection Class | IP65 |
| Noise on load (dB) | ≤65dB |
| Backlash(mm) | ≤0.4mm |
| Colour | Black |
| Strokelength(mm) | ≤100mm |
| Limit switch | Built-in |
| Options | Hall sensor |
| Standard cable length(m) | 0.5m (cable length can be customized) |

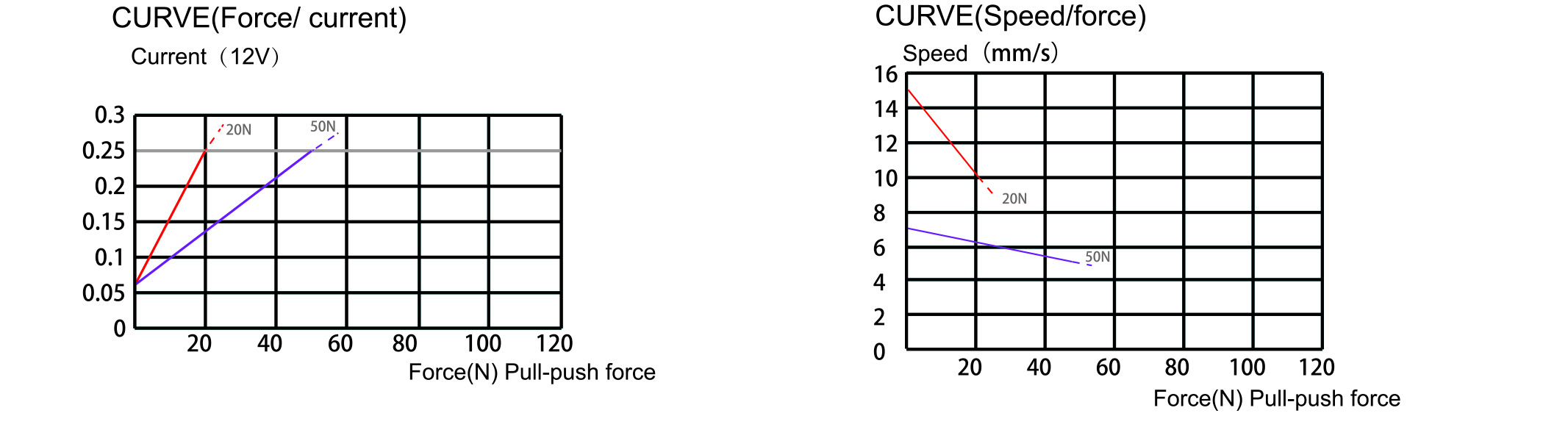

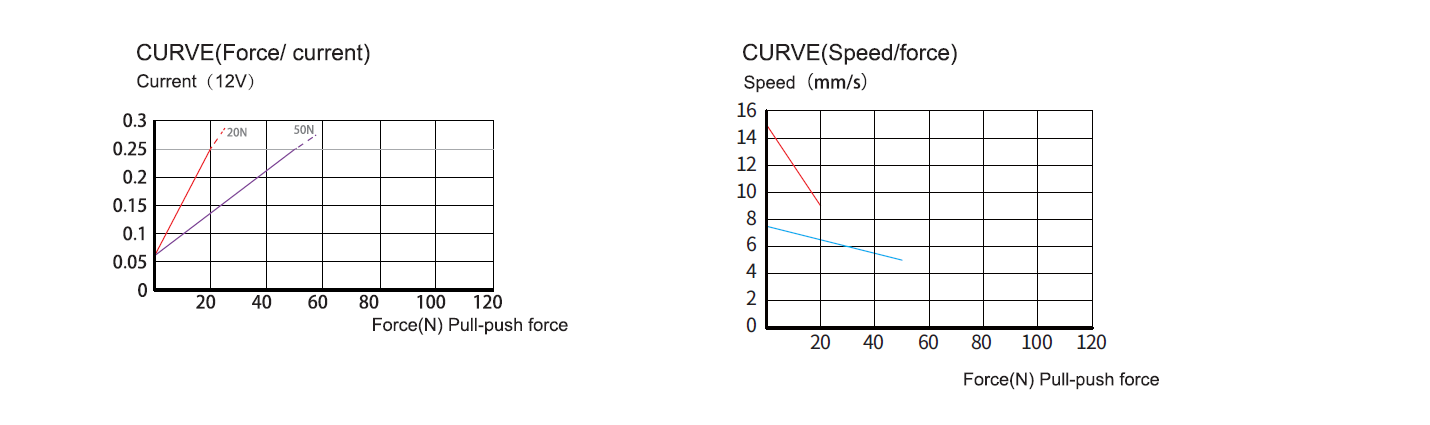

Forces and speeds
| Push force【N】 | Pull force【N】 | Self-locking force【N】 | Speed on load【mm/s】 | No load speed【mm/s】 |
| 20 | 20 | 30 | 9 | 15 |
| 50 | 50 | 75 | 4.9 | 7.5 |
Stroke and Weight
| Stroke【mm】 | 50 | 100 | - | - |
| Weight【kg】 | 0.1 | 0.2 | - | - |
Usage
| Operating temperature（℃） | 5℃~40℃ |
| Storage temperature（℃） | 5℃~40℃ |
| Working duty（S2） | 10%, 2 minutes continuous use followed by 18 minutes in rest |
| Life time（cycles） | ≥10000 cycles |
Built-in dimensions
| Option | Minimum BID[mm] | A |
| Standard | 105+stroke length | 75 |
| Hall sensor | 125+stroke length | 95 |
Notes: For any special installation size needs, please contact us.
Hall sensor
Cable lengths
Other stroke lengths available
Customized front, rear fixture

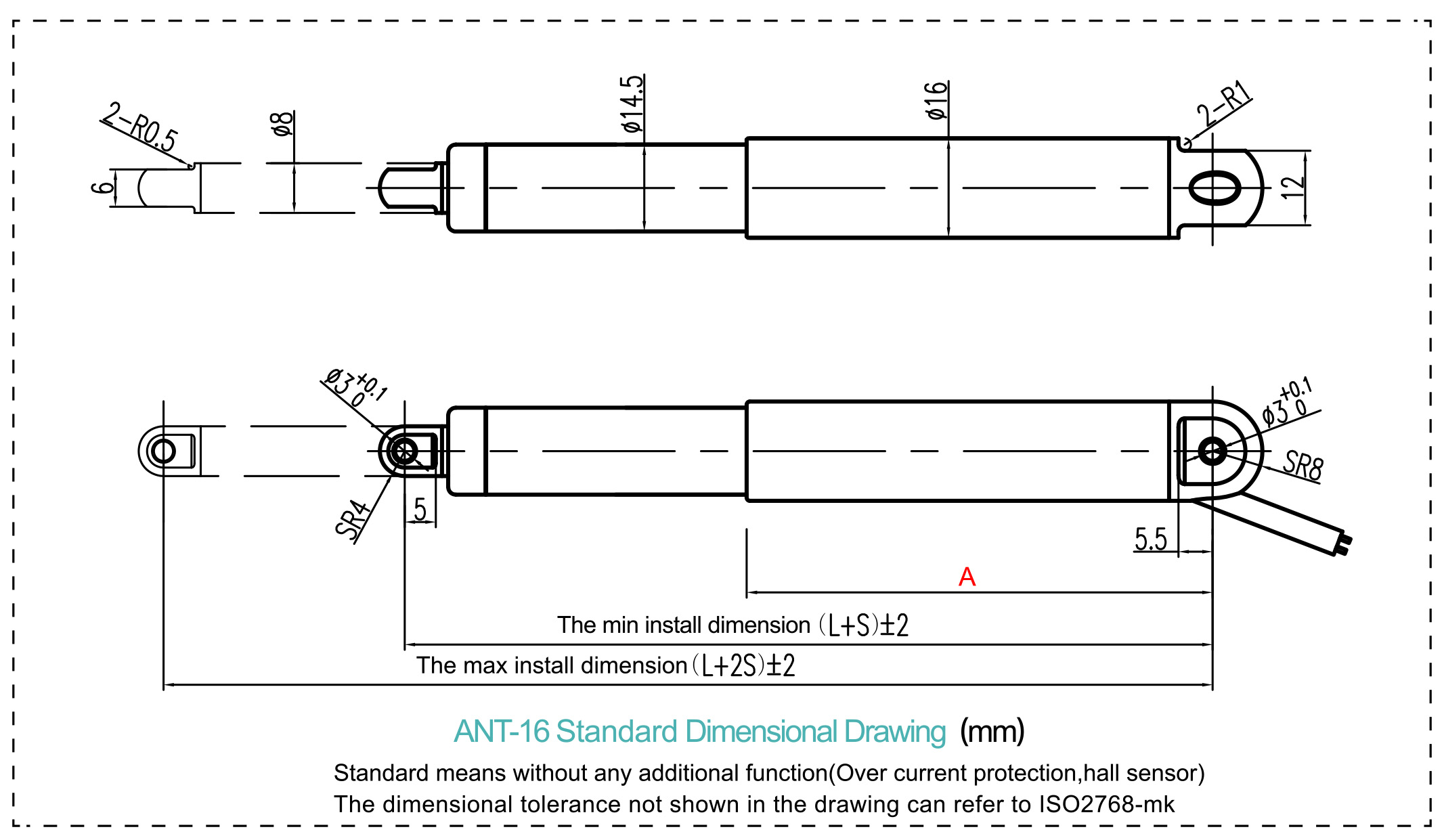

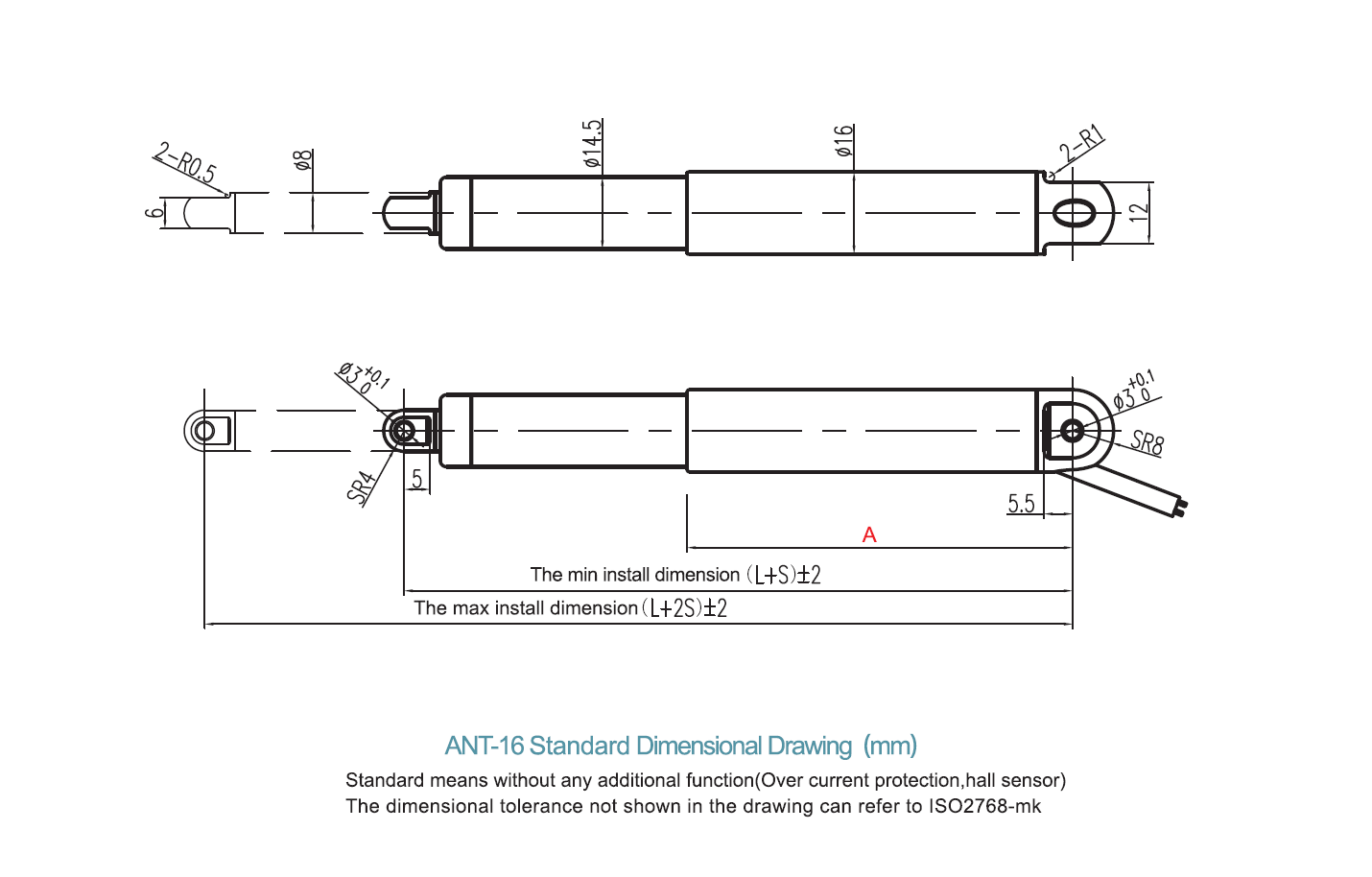

Installation size
Available in all RAL colours
