The ANT-26N is an enhanced version of the original model, offering advanced features such as internal limit switches with overcurrent protection or hall sensors.
With a compact 26mm diameter and a powerful 500N push/pull force, the ANT-26N is an ideal solution for applications requiring high force in confined spaces. Its IP66/IP67 waterproof rating ensures reliable performance in outdoor environments, even under harsh conditions.
The ANT-26N is perfectly suited for a variety of applications, including:motorized louver windows,bioclimatic pergolas,power wheelchairs and inspection robots.
This actuator delivers the perfect balance of compact design, durability, and functionality for demanding projects.
Features and options
| Max Load in push(N) | 500N |
| Max Loadin pull(N) | 500N |
| Voltage(V) | 12V/24V |
| No-load current(A) | ≤0.4A/≤0.25A |
| Load current(A) | ≤1.3A/≤0.7A |
| Max.Power(W) | 14.5W |
| Material ofouter tube | 6063 Aluminium |
| Material oflead screw | #45 steel |
| Materialof piston rod | 316 stainless steel |
| Material ofthe nut | Engineering plastic |
| Protection Class | IP66/IP67M/IP69K |
| Noise on load (dB) | ≤62dB |
| Backlash(mm) | ≤0.3mm |
| Colour | Black |
| Strokelength(mm) | ≤200mm |
| Limit switch | Built-in |
| Options | Over current protection/Hall sensor/Limit switch signal line output |
| Standard cable length(m) | 1.5m (cable length can be customized) |

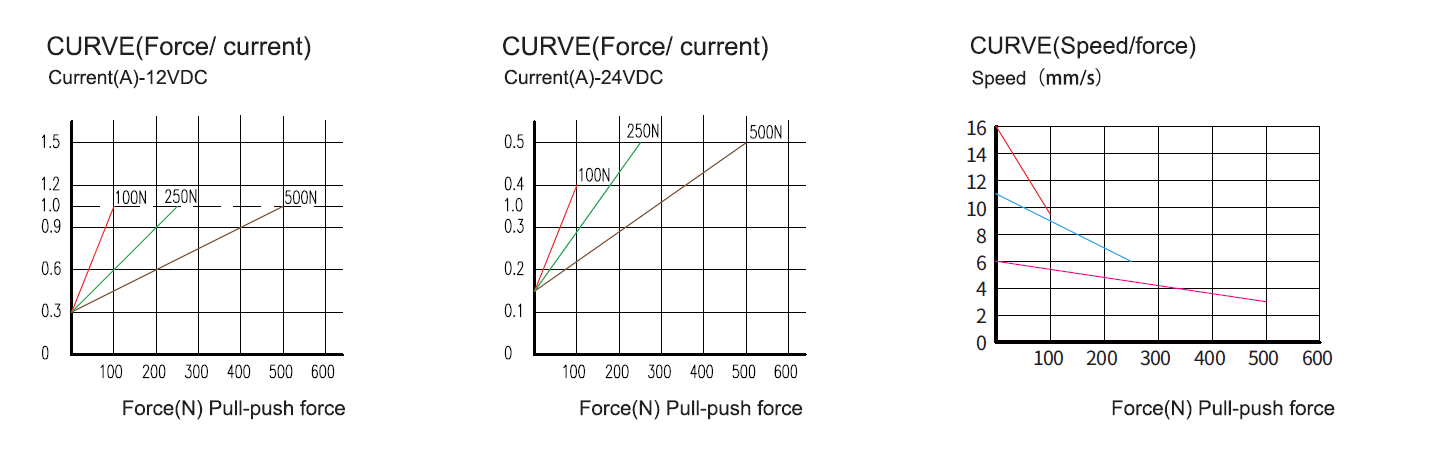

Forces and speeds
| Push force【N】 | Pull force【N】 | Self-locking force【N】 | Speed on load【mm/s】 | No load speed【mm/s】 |
| 100 | 100 | 150 | 9.5 | 16 |
| 250 | 250 | 375 | 6 | 11 |
| 500 | 500 | 500 | 3.2 | 6 |
Stroke and Weight
| Stroke【mm】 | 50 | 100 | 150 | 200 |
| Weight【kg】 | 0.3 | 0.35 | 0.4 | 0.45 |
Usage
| Operating temperature（℃） | -20℃~60℃ |
| Storage temperature（℃） | -20℃~60℃ |
| Working duty（S2） | 10%, 2 minutes continuous use followed by 18 minutesin rest |
| Life time（cycles） | ≥10000 cycles |
| Certification | CE/RoHS |

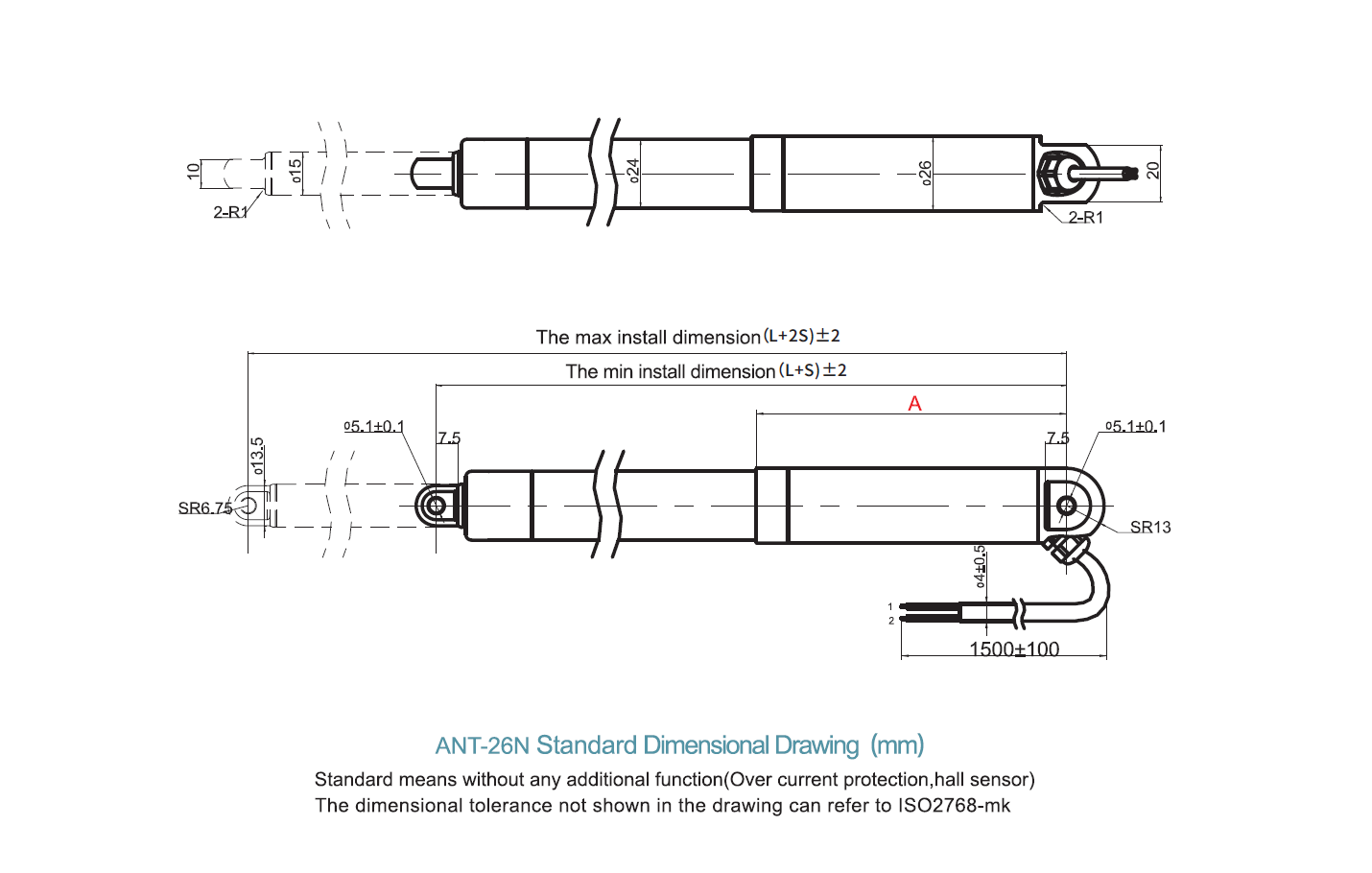

Built-in dimensions
| Option | Minimum BID[mm] | A |
| Standard | 170+stroke length | 108.5 |
| IP67M/IP69K | 185+stroke length | 108.5 |
| Hall sensor | 190+stroke length | 128.5 |
| Over current protection | 190+stroke length | 128.5 |
| Signal line output | 175+stroke length | 113.5 |
Notes: For any special installation size needs, please contact us.

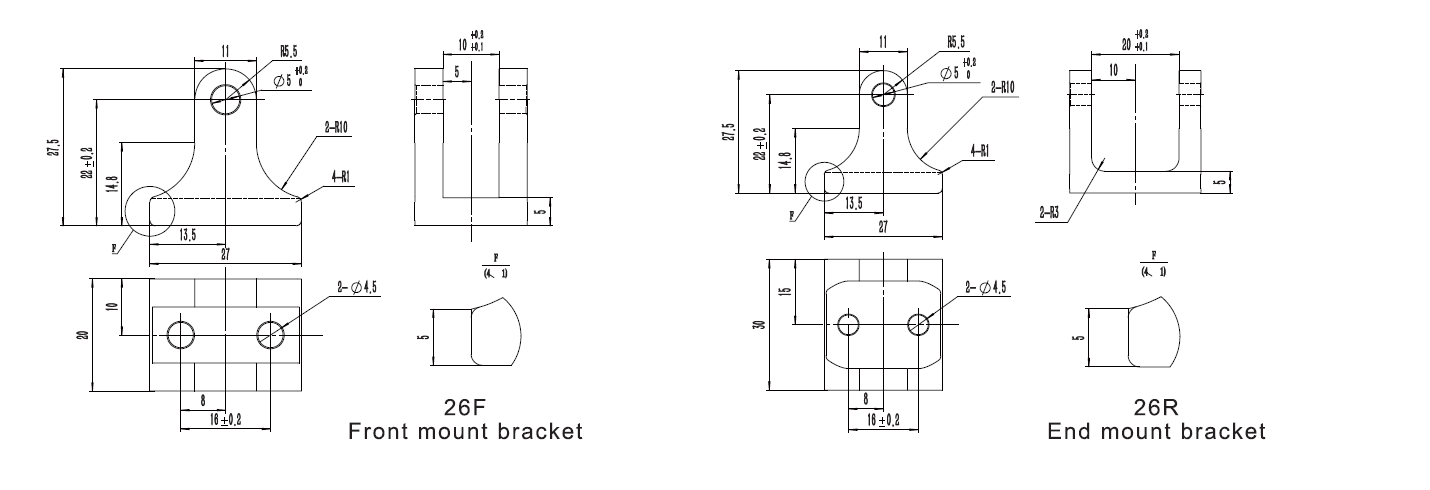

Mounting bracket
Over current protection
Hall sensor
Limit switch signal line output
Cable lengths
Other stroke lengths available
Customized front, rear fixture
Installation size
Available in all RAL colours
