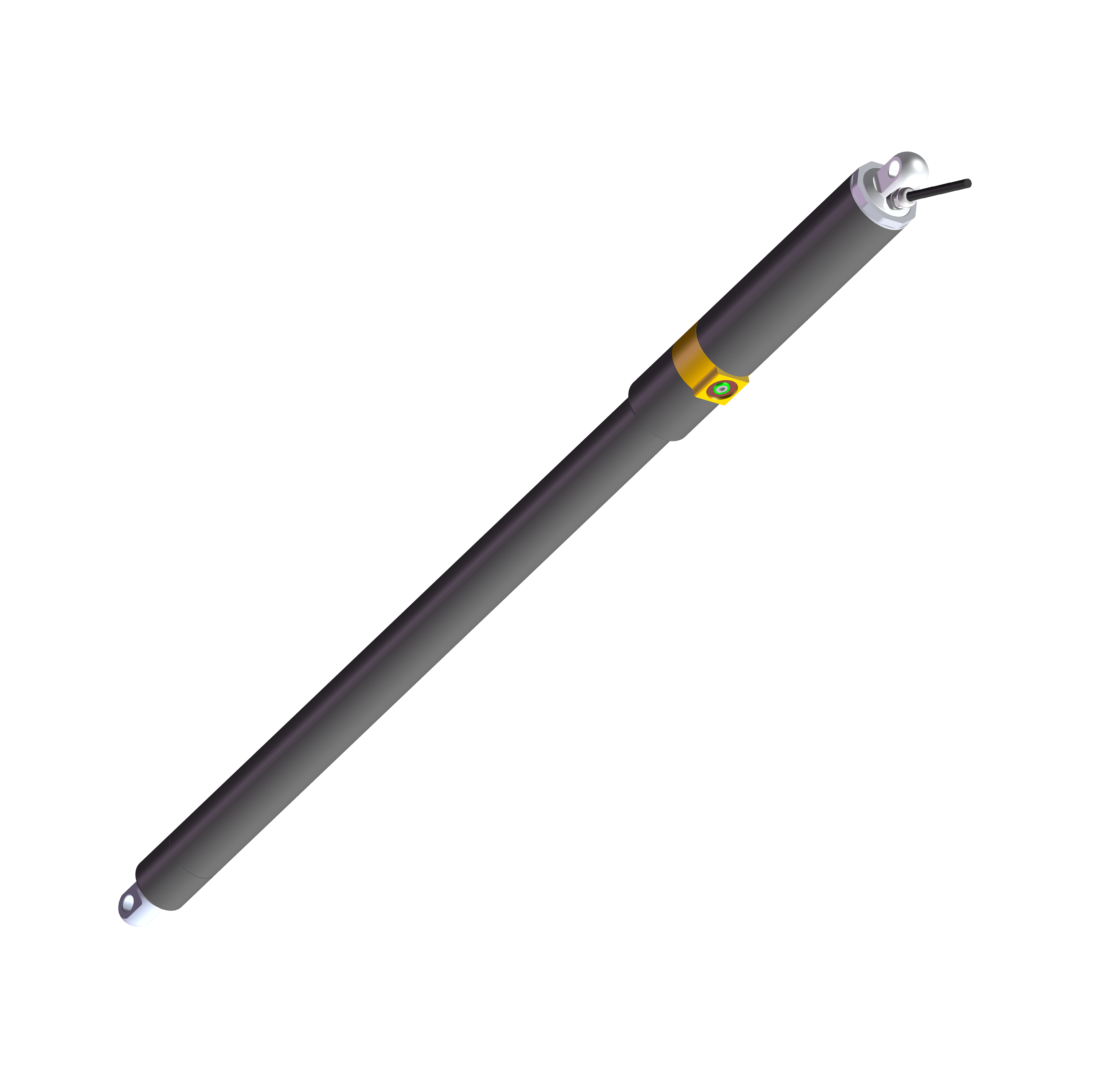

ANT-52M is an electric linear actuator with an integrated manual hand-crank override, designed to ensure reliable operation even during power failure.
The built-in manual override allows users to retract the actuator quickly by hand when electrical power is unavailable, making it an ideal solution for applications requiring emergency access and operational safety.Based on the proven ANT-52 platform, the ANT-52M delivers stable performance with a maximum load of 1800N, IP67M waterproof protection, and a service life exceeding 10,000 operating cycles. Its compact in-line design makes installation easy while maintaining a clean appearance.The ANT-52M is ideal for Pop-up roofs for campers and RVs,Caravan roof lifting systems,Skylights and roof vents,Yacht hatches and marine equipment,Industrial access covers,Emergency opening systems
Features and options
| Max Load in push(N) | 1800N |
| Max Loadin pull(N) | 1800N |
| Voltage(V) | 12V/24V |
| No-load current(A) | ≤2A/≤0.8A |
| Load current(A) | ≤11A/≤5A |
| Max.Power(W) | 160W |
| Material ofouter tube | 6063 Aluminium |
| Material oflead screw | #45 steel |
| Materialof piston rod | 316 stainless steel |
| Material ofthe nut | Engineering plastic |
| Protection Class | IP66/IP67M |
| Noise on load (dB) | ≤65dB |
| Backlash(mm) | 0.5-1mm |
| Colour | Black |
| Strokelength(mm) | ≤600mm |
| Options | Hall sensor |
| Standard cable length(m) | ≥300m (cable length can be customized) |

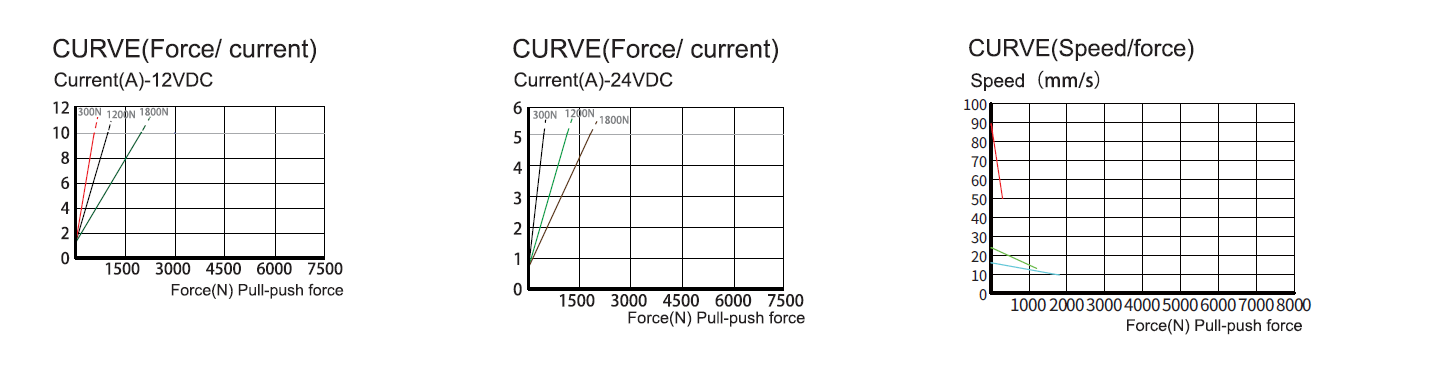

Forces and speeds
| Push force【N】 | Pull force【N】 | Self-locking force【N】 | Speed on load【mm/s】 | No load speed【mm/s】 |
| 300 | 300 | 600 | 47 | 88 |
| 1200 | 1200 | ≥2000 | 14 | 23 |
| 1800 | 1800 | ≥2000 | 10 | 15 |
Stroke and Weight
| Stroke【mm】 | 200 | 300 | 400 | 500 | 600 |
| AL Weight【kg】 | 3.5 | 3.7 | 3.9 | 4.1 | 4.3 |
Usage
| Operating temperature（℃） | -20℃~60℃ |
| Storage temperature（℃） | -40℃~70℃ |
| Working duty（S2） | 11%, 2 minutes continuous use followed by 18 minutesin rest |
| Life time（cycles） | ≥200 hours |
Manual Override Performance
| Operating Tool | Input Speed | Retraction Speed | Time to Fully Retract (500mm Stroke) |
| Electric Drill | 1600rpm | 9.64 mm/s | 51 s |
| Wrench | — | Approx. 3 mm/s | Approx.3min |

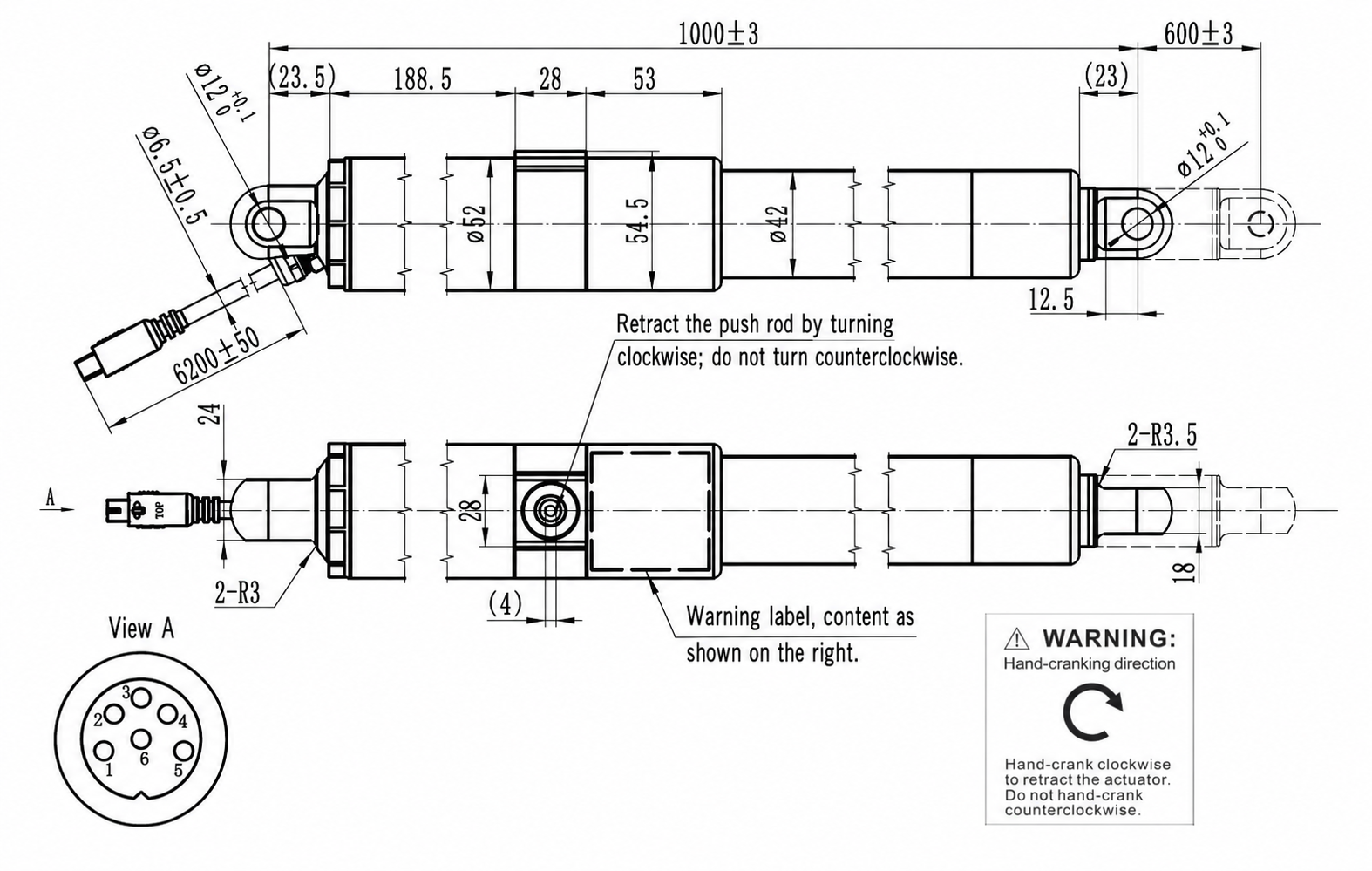

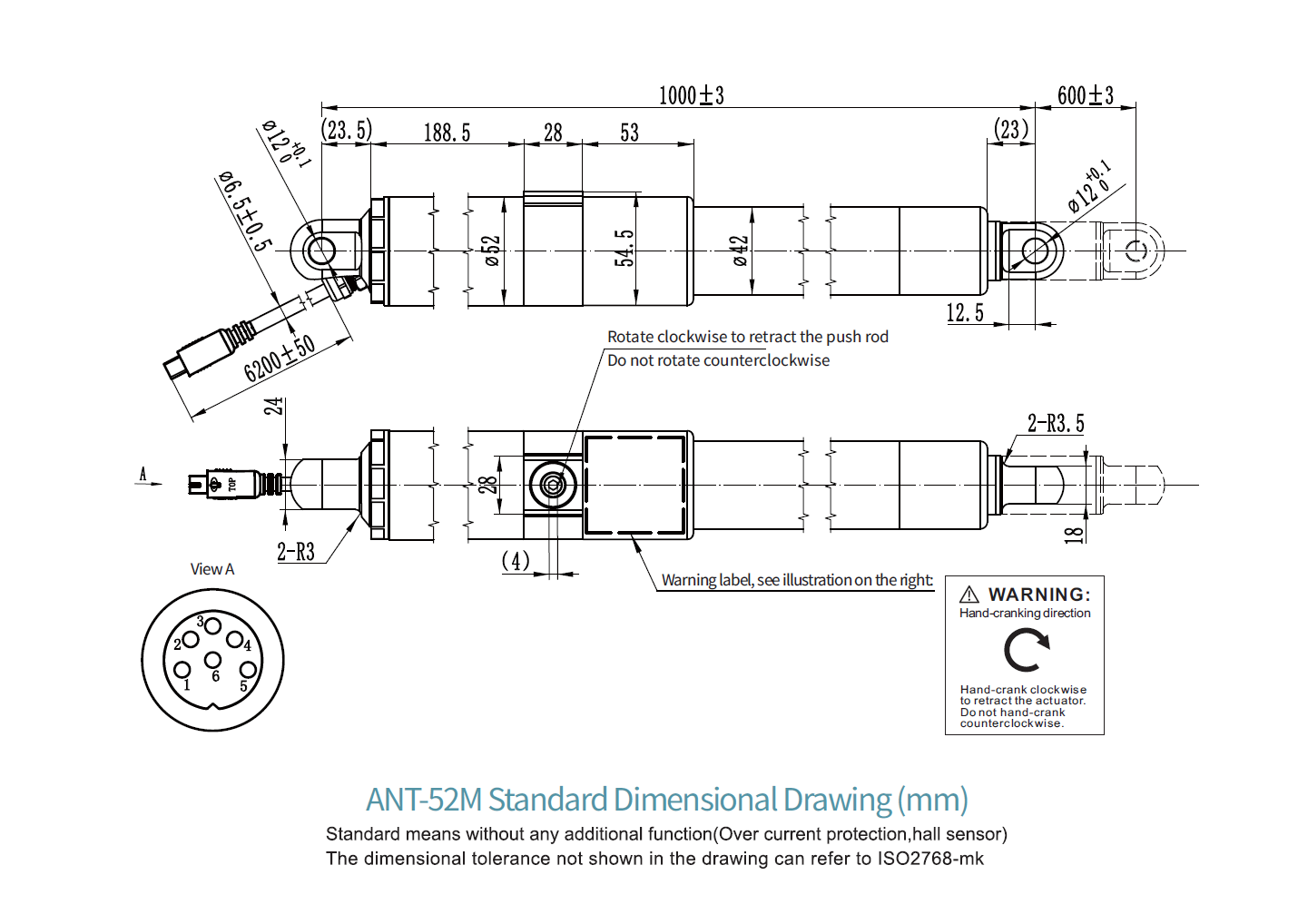

Built-in dimensions
| Option | Minimum BID[mm] |
| Standard | 400+stroke length |
| Hall sensor | 400+stroke length |
Notes: For any special installation size needs, please contact us.
Hall sensor
Cable lengths
Other stroke lengths available
Customized front, rear fixture
Installation size
Available in all RAL colours
