The ANT-35 is a compact yet powerful inline linear actuator, combining exceptional performance with a slim 35mm diameter. With a maximum load capacity of 2300N, it stands out as a versatile and reliable solution for various demanding applications.
For enhanced durability in harsh environments, the ANT-35 is available in all stainless steel and comes with an IP67M waterproof rating, ensuring reliable performance in marine, outdoor, and industrial settings.
Perfect for applications such as:motorized pergolas,yacht and caravan automation,special vehicles and rehabilitation equipment
The ANT-35 delivers robust performance and adaptability, making it one of our best-selling actuators for modern automation needs.
Features and options
| Max Load in push(N) | 2300N |
| Max Loadin pull(N) | 2300N |
| Voltage(V) | 12V/24V |
| No-load current(A) | ≤0.7A/≤0.35A |
| Load current(A) | ≤3.8A/≤1.8A |
| Max.Power(W) | 50W |
| Material ofouter tube | 6063 Aluminium/316 stainless steel |
| Material oflead screw | Trapezoid steel |
| Materialof piston rod | 316 stainless steel |
| Material ofthe nut | Copper/Engineering plastic |
| Protection Class | IP66/IP67M/IP69K |
| Noise on load (dB) | ≤60dB |
| Backlash(mm) | 0.5-1mm |
| Colour | Black/Silver |
| Strokelength(mm) | ≤400mm |
| Options | Over current protection/Hall sensor |
| Standard cable length(m) | 1.5m (cable length can be customized) |

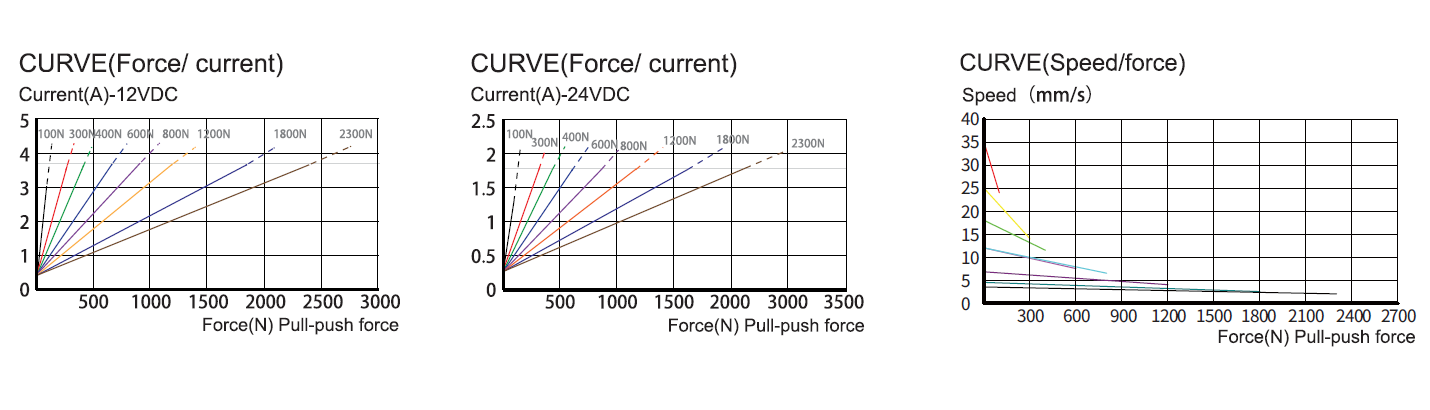

Forces and speeds
| Push force【N】 | Pull force【N】 | Self-locking force【N】 | Speed on load-Normal【mm/s】 | No load speed -Normal【mm/s】 | Speed on load-Low noise 【mm/s】 | No load speed-Low noise【mm/s】 |
| 100 | 100 | 150 | 24 | 35 | 19 | 25 |
| 300 | 300 | 600 | 14 | 25 | 17 | 25 |
| 400 | 400 | 600 | 11.5 | 18 | 11.5 | 16.5 |
| 600 | 600 | 1600 | 7.5 | 12 | 8.5 | 13 |
| 800 | 800 | 1600 | 6.5 | 12 | 5.5 | 8.5 |
| 1200 | 1200 | 1800 | 4 | 6.8 | - | - |
| 1800 | 1800 | 3600 | 2.5 | 4.5 | - | - |
| 2300 | 2300 | 3450 | 2 | 3.5 | - | - |
Stroke and Weight
| Stroke【mm】 | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 |
| AL Weight【kg】 | 0.6 | 0.7 | 0.8 | 0.9 | 1 | 1.1 | 1.2 | 1.4 |
| S/S Weight【kg】 | 1.1 | 1.2 | 1.3 | 1.4 | 1.5 | 1.6 | 1.7 | 1.8 |
Usage
| Operating temperature（℃） | -20℃~60℃ |
| Storage temperature（℃） | -40℃~70℃ |
| Working duty（S2） | 10%, 2 minutes continuous usefollowed by 18 minutesin rest |
| Life time（cycles） | ≥10000 cycles |
| Certification | CE/RoHS |

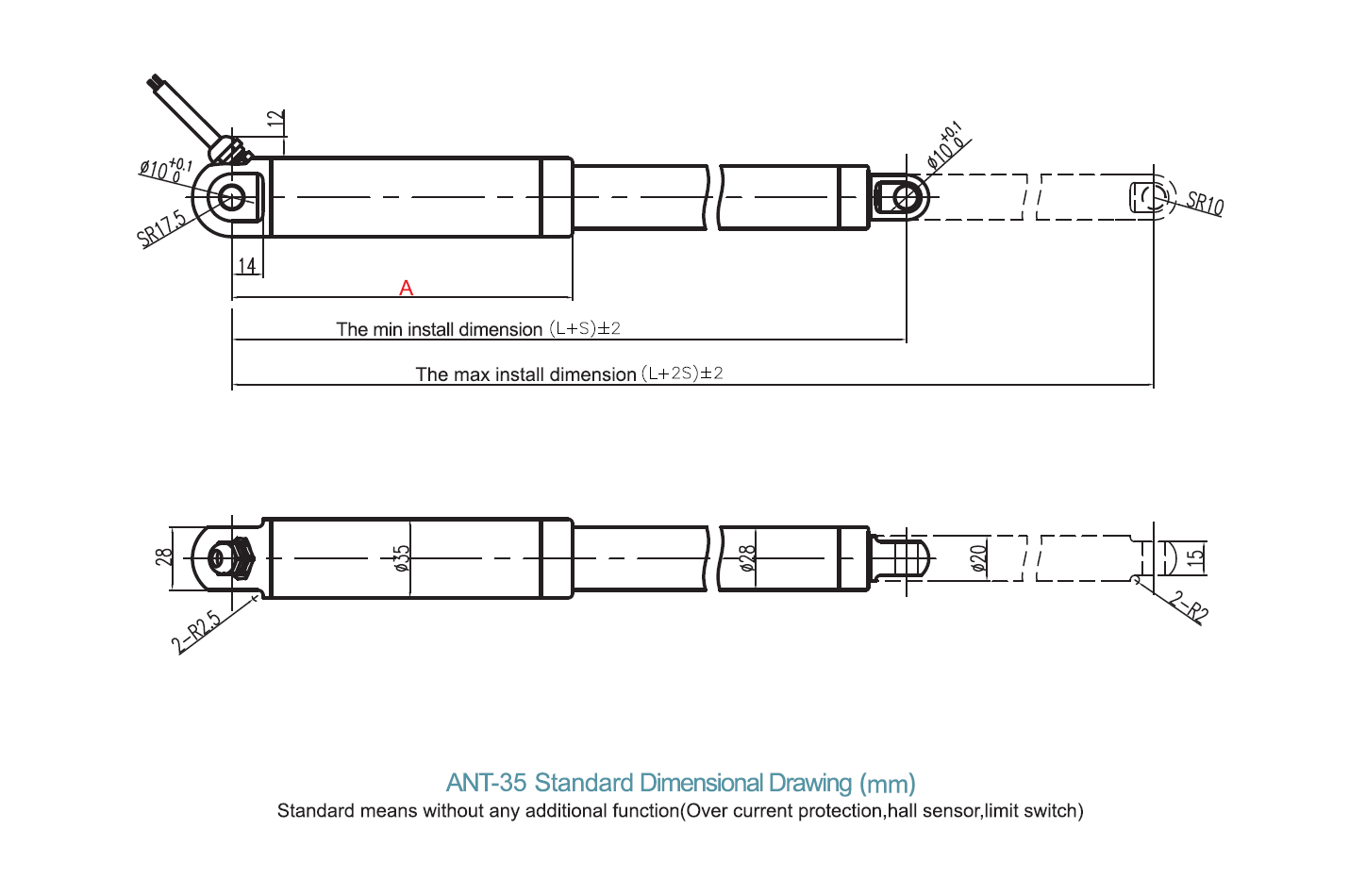

Built-in dimensions
| Option | 最小安装距BID【mm】 | |||||
| Standard | Low noise version | IP67M/IP69K | Hall sensor | Over current protection | ||
| Force≤800N | L+S | 178+S | 188+S | 191+S | 200+S | 200+S |
| A | 121.5 | 131.5 | 121.5 | 143.5 | 143.5 | |
| Force>800N | L+S | 188+S | - | 201+S | 208+S | 208+S |
| A | 131.5 | - | 131.5 | 151.5 | 151.5 | |
Notes: For anyspecial installation size needs, please contact us.

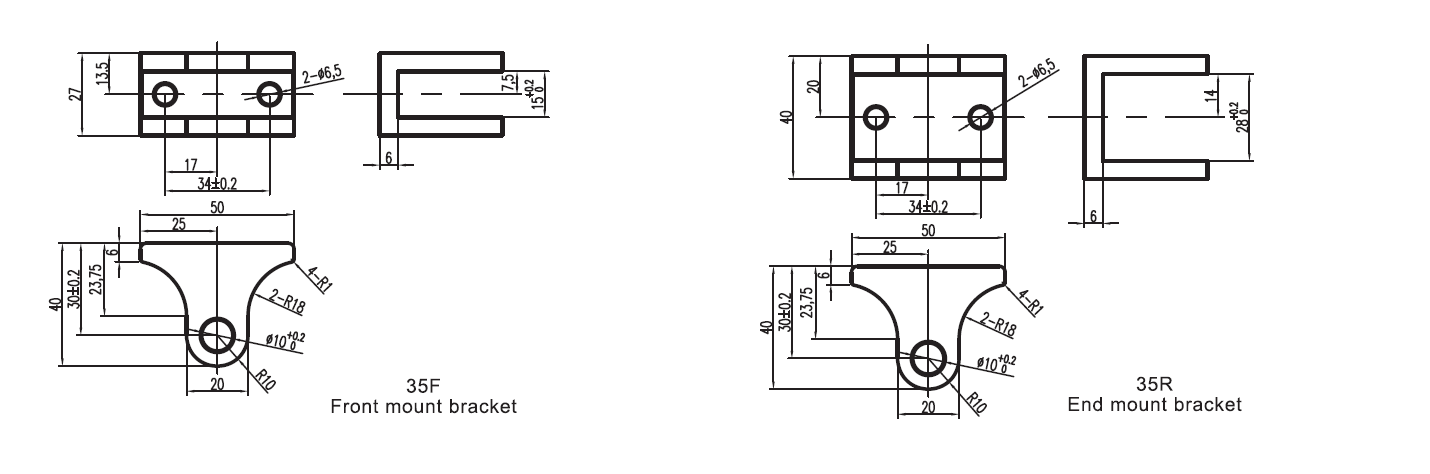

Mounting bracket
