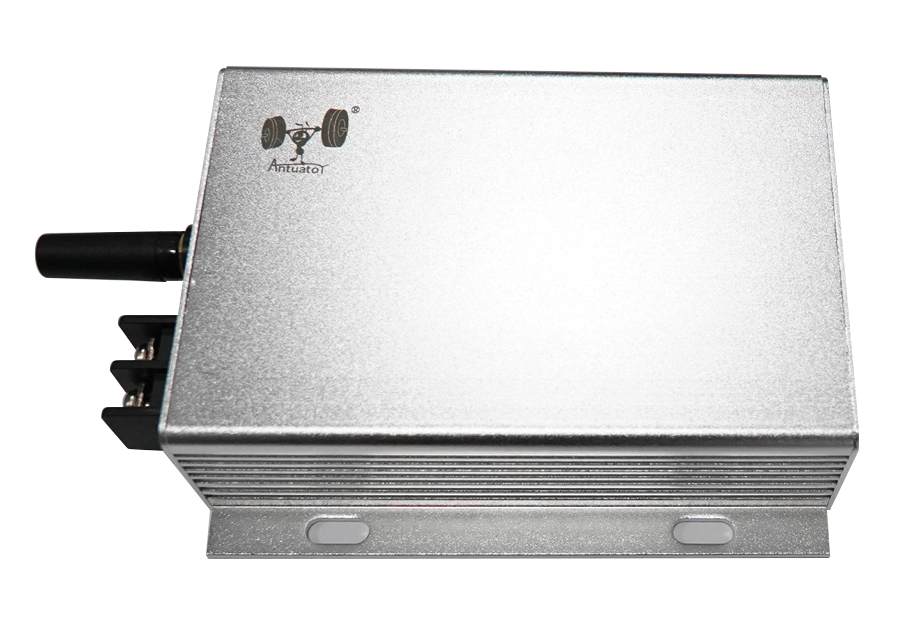

The ANT-20 Compact Precision Controller is an intelligent two-channel synchronization controller developed specifically for Hall-effect DC linear actuators. It supports independent or synchronized control of one or two actuators, ensuring smooth and precise lifting, lowering, stopping, and positioning.

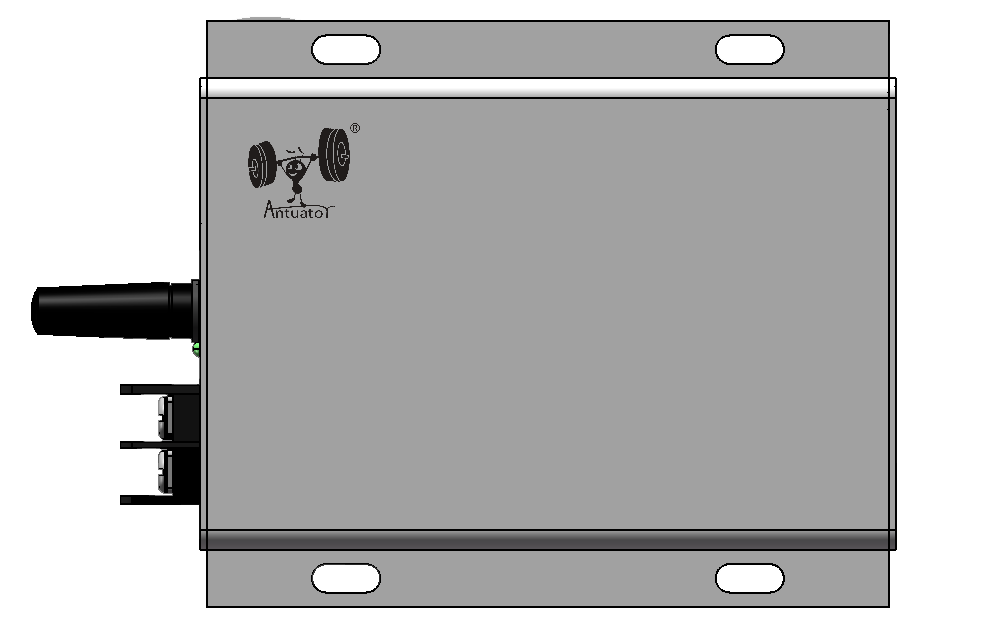

Designed with a compact enclosure measuring only 120×103×33.4 mm, the controller is ideal for installations where space is limited while maintaining excellent performance and reliability.
To ensure stable operation in demanding environments, the controller integrates multiple hardware and software protection mechanisms, including:
Over-current protection、Over-voltage protection、Under-voltage protection、Hall sensor monitoring、Synchronization deviation detection、Fault alarm and diagnostic functions
These comprehensive protection features make the controller suitable for outdoor equipment, industrial automation, recreational vehicles (RV), marine systems, agricultural machinery, and other intelligent motion control applications.
Power supply input voltage | |||
Quiescent current | Max 200mA | ||
Drive capability | ≤15A*2 channels @Work duty S3（Work 2 minutes，stop 18 minutes） | ||
Overcurrent protection/Overvoltage protection /Undervoltage protection | Support | ||
Hall sensor signal loss detection | Support | ||
Workable actuator quantity | ≤2 | ||
Actuator cable length | ≤10m | ||
Workable actuator models | ANT-35/ANT-38/ANT-45/ANT-52, with Hall sensor | ||
Actuators synchronization accuracy | ±5mm/10000 cycles | ||
| Remote control type | 433.92M@FSK | ||
| Max allowed paired remote control qunatity | 2 | ||
| Remote control distance | ≤20m | ||
| Hall sensor working voltage | DC11V | ||

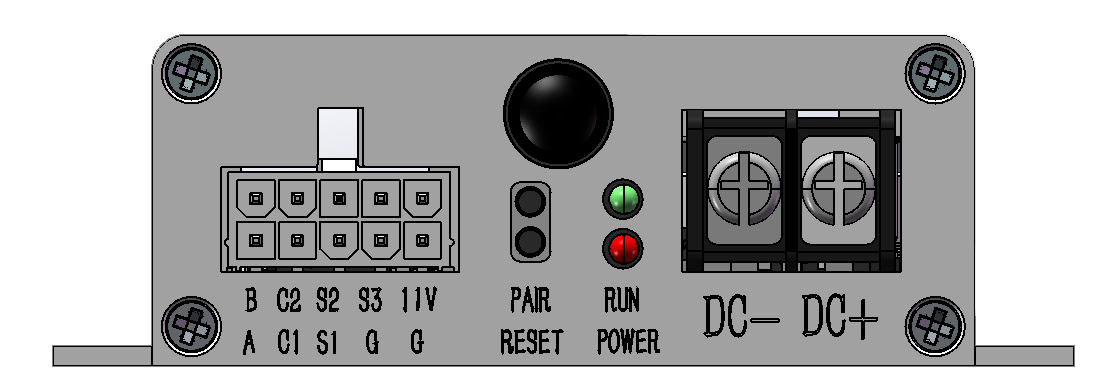

| Touch screen programmer communication type | RS485, power voltage 11V | ||
| User communication interface | RS485, Format 9600/8/N/1, Protocol MODBUS | ||
| Rocker switch interface | Switch type input | ||
| Working temperature | -20℃ - 70℃ | ||
| Working humidity | 75% | ||
| Waterproof level | IP54 | ||
| Housing material | Aluminum Alloy | ||

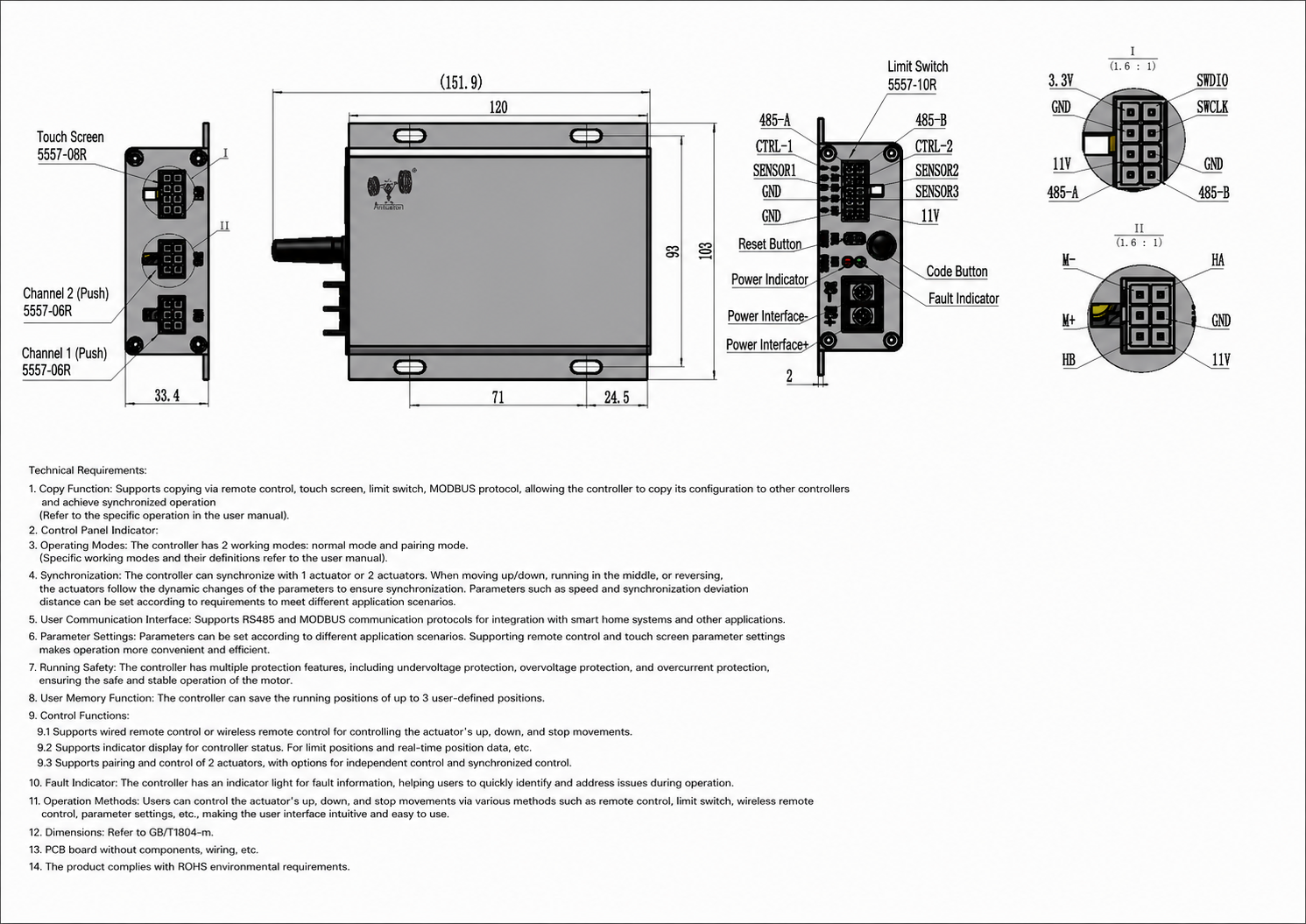

| Sizes | 120mm(L)*103mm(W)*33.4mm(H) |
