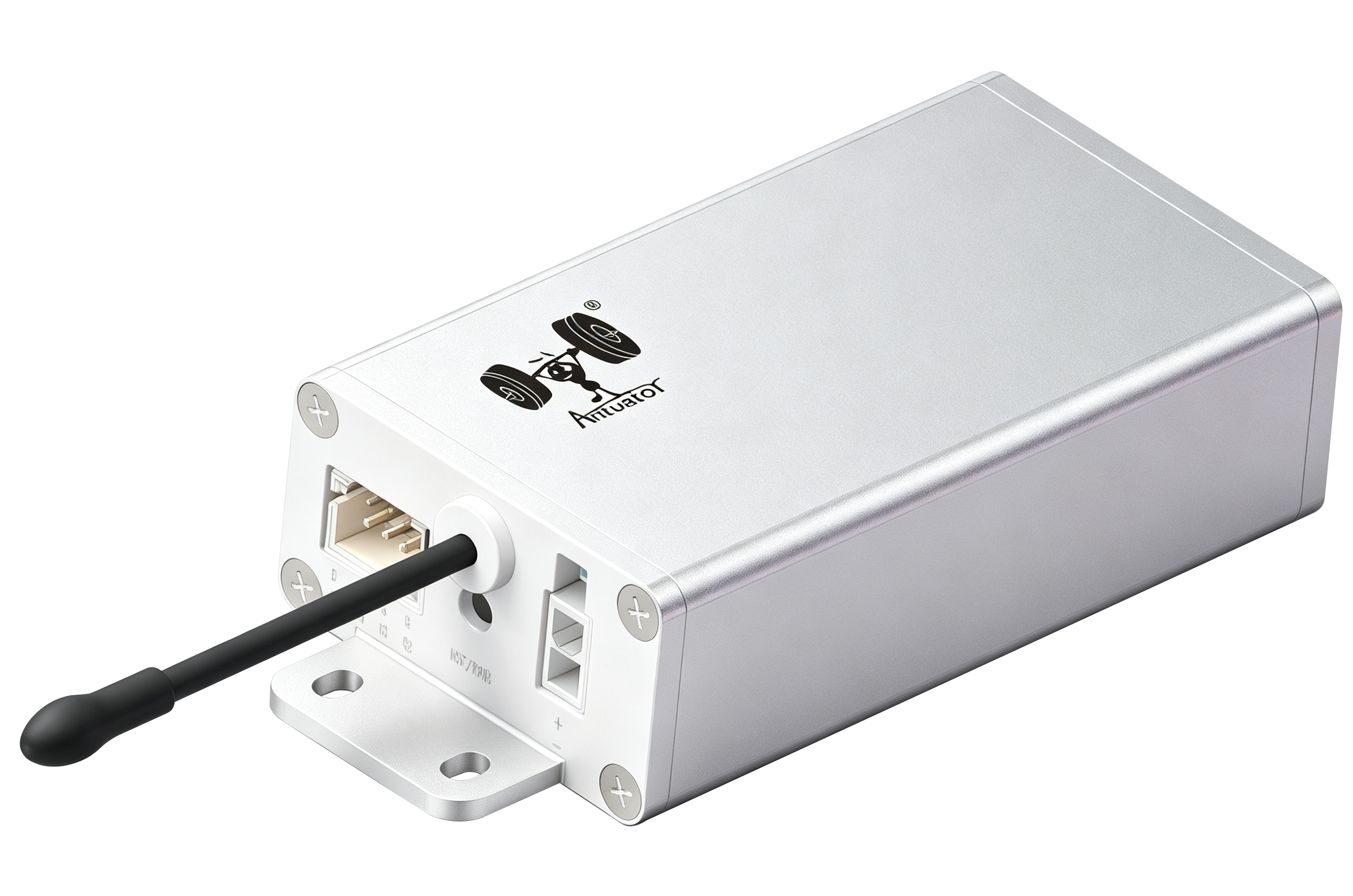

The ANT22 is a newly developed, ultra-compact micro linear actuator controller optimized specifically for Antuator’s ANT-26 and ANT-26N mini actuators, delivering precise motion management, smooth start/stop performance, and stable 12V/24V DC power output. Built with robust over-current, over-voltage, and reverse-polarity protections, its ultra-small footprint allows easy integration into space-restricted applications, making it the ideal choice for medical equipment, smart home shading, automotive interiors, and compact industrial automation.
Power supply input voltage | DC9V-36V， with anti-reverse protection | ||
Quiescent current | Max 150mA | ||
Drive capability | ≤2A*2channels @Work duty S3（Work 2 minutes，stop 18 minutes） | ||
Overcurrent protection/Overvoltage protection /Undervoltage protection | Support | ||
Hall sensor signal loss detection | Support | ||
Workable actuator quantity | ≤2 | ||
Actuator cable length | ≤7m | ||
Workable actuator models | ANT-26/ANT-26N | ||
Actuators synchronization accuracy | ±5mm/10000 cycles | ||
| Remote control type | 433.92M@FSK | ||
| Max allowed paired remote control qunatity | 2 | ||
| Remote control distance | ≤20m | ||
| Hall sensor working voltage | DC11V | ||

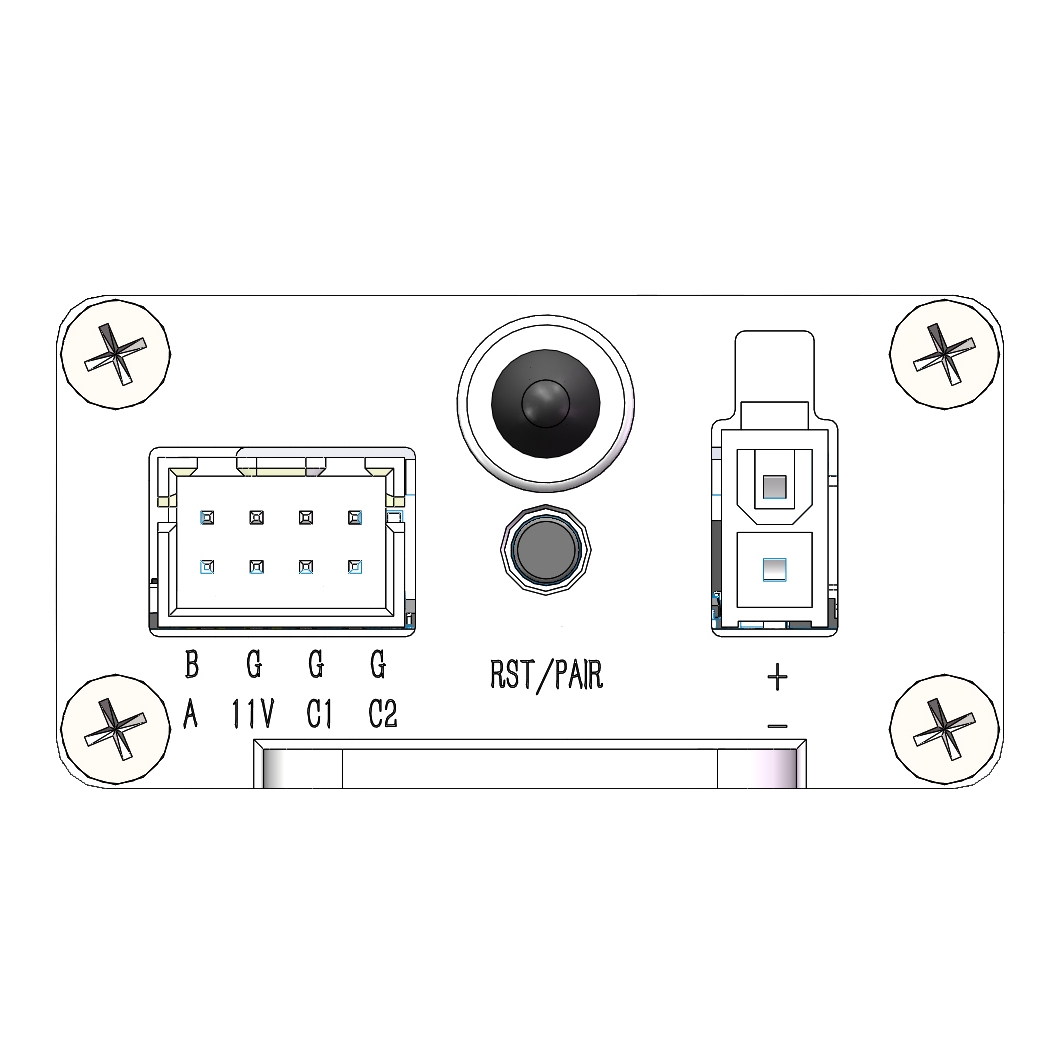

| Touch screen programmer communication type | RS485, power voltage 11V | ||
| User communication interface | RS485, Format 9600/8/N/1, Protocol MODBUS | ||
| Rocker switch interface | Switch type input | ||
| Working temperature | -20℃ - 60℃ | ||
| Working humidity | 75% | ||
| Waterproof level | IP54 | ||
| Housing material | Aluminum Alloy | ||

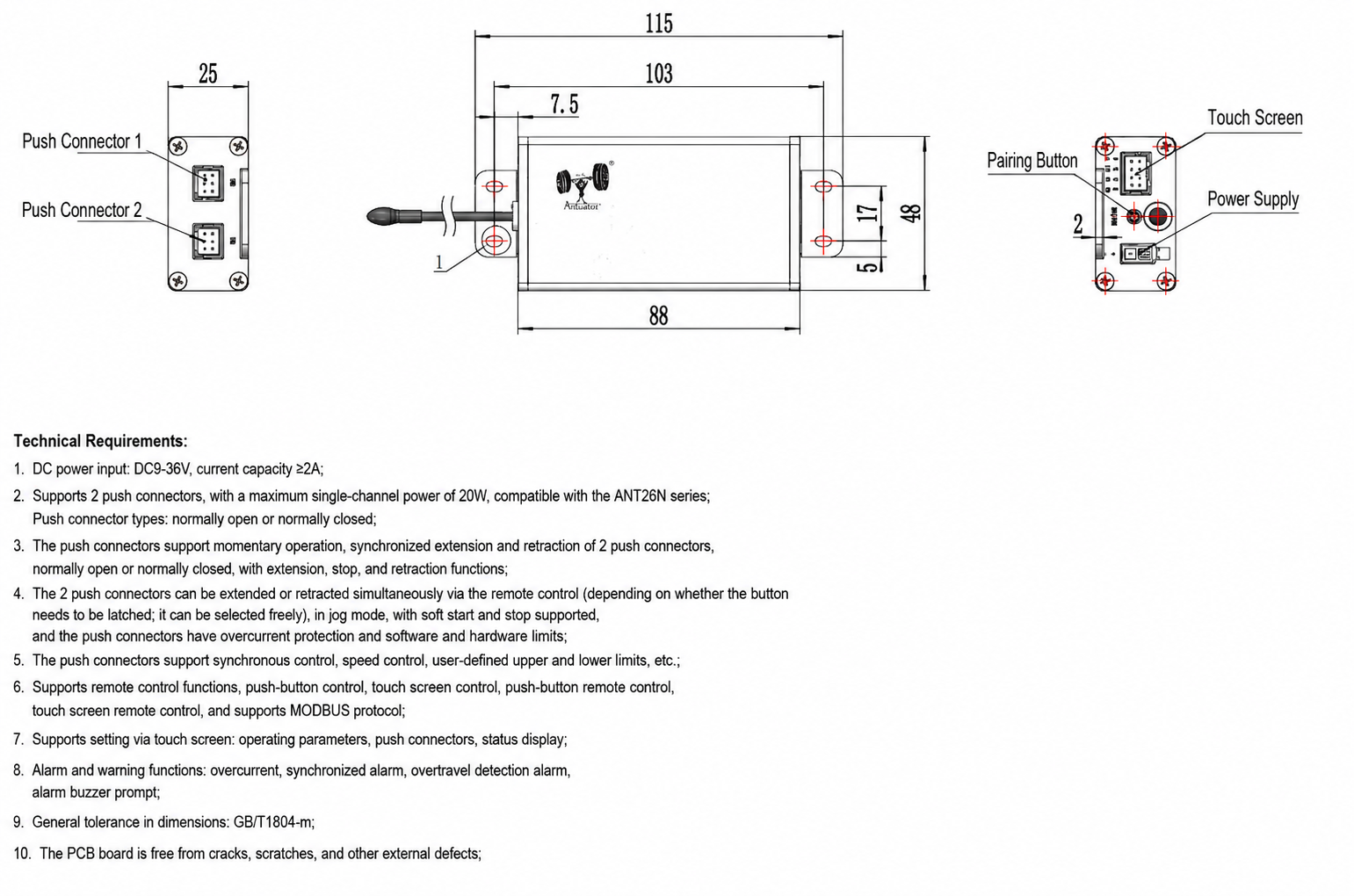

| Sizes | 115mm(L)*48mm(W)*25mm(H) |
