The ANT16-A2 Dual-Channel Controller is an intelligent, high-reliability control unit designed to independently operate 1 to 2 electric linear actuators. It allows precise manual or automated control for lifting, lowering, stopping, and positioning without mandatory synchronization, making it ideal for versatile multi-actuator setups.
Operating across a wide voltage range of DC 9V to 36V, the ANT16-A2 features comprehensive hardware and software protection mechanisms, including over-current protection with customizable threshold settings, reverse polarity protection, and system fault diagnostics. These features ensure exceptional stability and long-term safety, even under harsh outdoor, industrial, and vehicle-mounted environments.

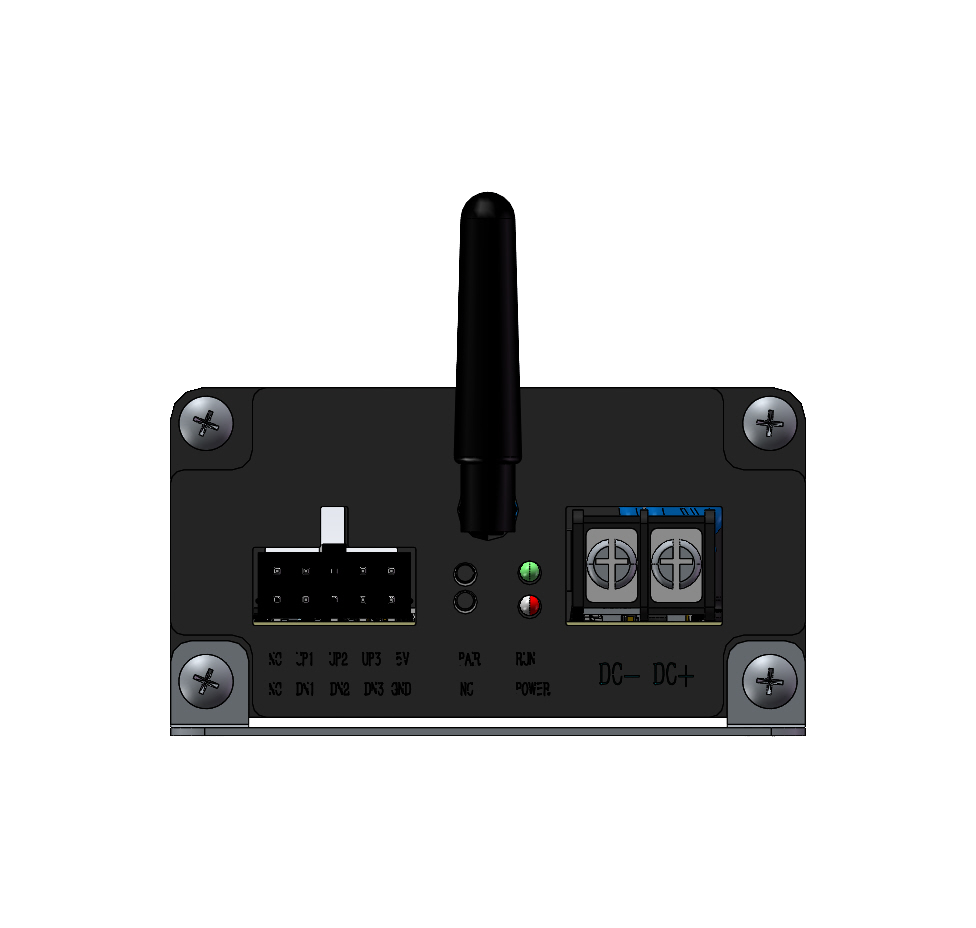

Equipped with intuitive indicator lights, pairing buttons, and flexible control interfaces (touch screen, panel switch, and wireless remote), the ANT16-A2 delivers an adaptable, easy-to-integrate solution for dynamic multi-actuator motion control.
Power supply input voltage | DC9V-36V,with anti-reverse protection | ||
Quiescent current | Max 300mA | ||
Drive capability | ≤15A*2channels @Work duty S3（Work 2 minutes，stop 18 minutes） | ||
Overcurrent protection/Overvoltage protection /Undervoltage protection | Over-current protection supported; Over-voltage and Under-voltage protection not supported | ||
Hall sensor signal loss detection | Not Support | ||
Workable actuator quantity | ≤2 | ||
Actuator cable length | ≤10m | ||
Workable actuator models | ANT-26N/ANT-35/ANT-38/ANT-52, without Hall sensor | ||
| Remote control type | 433.92M@FSK | ||
| Max allowed paired remote control qunatity | 1 | ||
| Remote control distance | 20m | ||
| Hall sensor working voltage | - | ||
| Touch screen programmer communication type | RS485, power voltage 12V | ||
| User communication interface | - | ||
| Rocker switch interface | Switch type input | ||
| Working temperature | -20℃ - 70℃ | ||
| Working humidity | 75% | ||
| Waterproof level | IP54 | ||
| Housing material | 6065-T5 Aluminum Alloy,ADC12 End Cap | ||

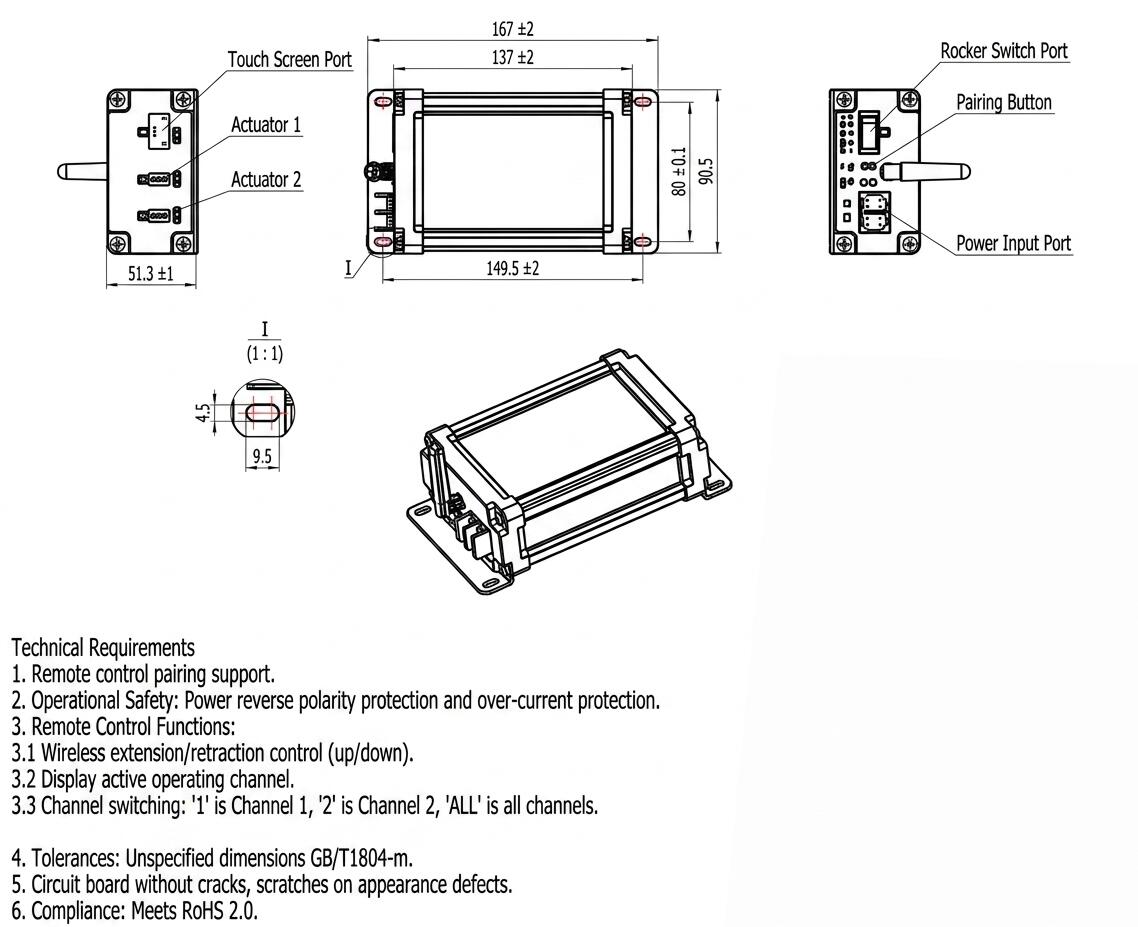

| Sizes | 167mm(L)*93.5mm(W)*51.3mm(H) |
