Linear Actuators ANT-35
Powerful Inline Linear Actuator

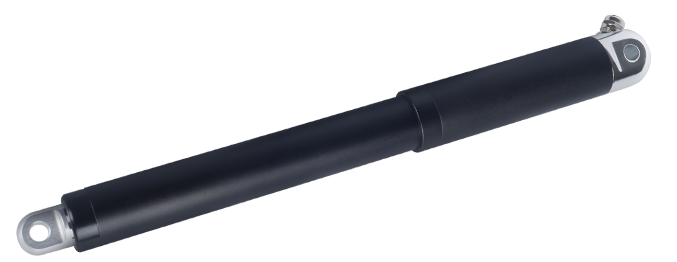

The ANT-35 is a compact yet powerful inline linear actuator, combining exceptional performance with a slim 35mm diameter. With a maximum load capacity of 2300N, it stands out as a versatile and reliable solution for various demanding applications.

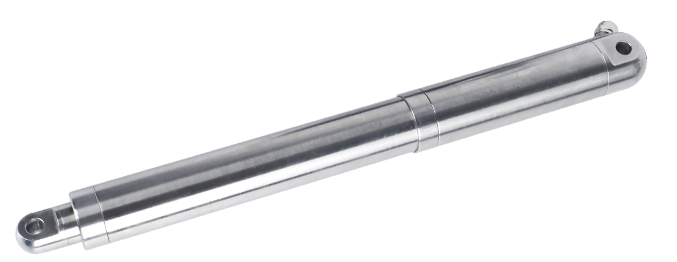

For enhanced durability in harsh environments, the ANT-35 is available in all stainless steel and comes with an IP67M waterproof rating, ensuring reliable performance in marine, outdoor, and industrial settings.

Perfect for applications such as:motorized pergolas,yacht and caravan automation,special vehicles and rehabilitation equipment

The ANT-35 delivers robust performance and adaptability, making it one of our best-selling actuators for modern automation needs.

ANT-35 ANT-35
ANT-35
ANT-35
Home Products Linear Actuators ANT-35
Specifications


Voltage(V)

 12V

 24V

 IP rating

 IP66/IP67M

No-load current(A)

 ≤0.7A

 ≤0.35A

Operating temperature(℃)

 -20~60(℃)

Load current(A)

 ≤3.8A

 ≤1.8A

Storage temperature(℃)

 -40~70(℃)

 Max. power(W)

 50W

Noise on load (dB)

 60dB

Material of outer tube

 6063Aluminium/316 stainless steel

 Backlash (mm)

 0.5-1

Material of lead screw

 Trapezoid,Steel

 Colour

 Black/Sliver

Material of piston rod

 316 stainless steel

 Certification

 CE,RoHS

Material of the nut

Copper/Engineering plastic

Wire connection

Bare wire/4 or 6 pins connector

Working duty(S2)

Work 2 minutes and rest 18 minutes

 End mounting

 O type

Life time(cycles)

 ≥10K

 Wire length(m)

 1.5



 Max load

 100N

 300N

 400N

 600N

 800N

 1200N

 1800N

 2300N

Self-locking force

 150N

 600N

 600N

 1600N

 1600N

 1800N

 3600N

 3450N

No-load speed(Normal)

 35mm/s

25 mm/s

 18 mm/s

12 mm/s

12 mm/s

6.8 mm/s

4.5 mm/s

3.5 mm/s

Load speed(Normal)

 30 mm/s

17 mm/s

 14 mm/s

9 mm/s

8 mm/s

5 mm/s

3 mm/s

2.5 mm/s

No-load speed(Low noise)

 25 mm/s

25 mm/s

16.5 mm/s

13 mm/s

8.5 mm/s

 -

 -

 -

Load speed(Low noise)

 23 mm/s

20 mm/s

 14 mm/s

10.5 mm/s

7 mm/s

 -

 -

 -



 Stroke(mm)

 50

 100

 150

 200

 250

 300

 350

 400

AL Weight(kg)

 0.6

 0.7

 0.8

 0.9

 1

 1.1

 1.2

 1.4

S/S Weight(kg)

 1.1

 1.2

 1.3

 1.4

 1.5

 1.6

 1.7

 1.8

lCustomized stroke lengths are available.

lThe min stroke:20mm, the max stroke:500mm.

lThe stroke’s precision is ±2mm.

lLoad capacity>800N:No low noise version available.

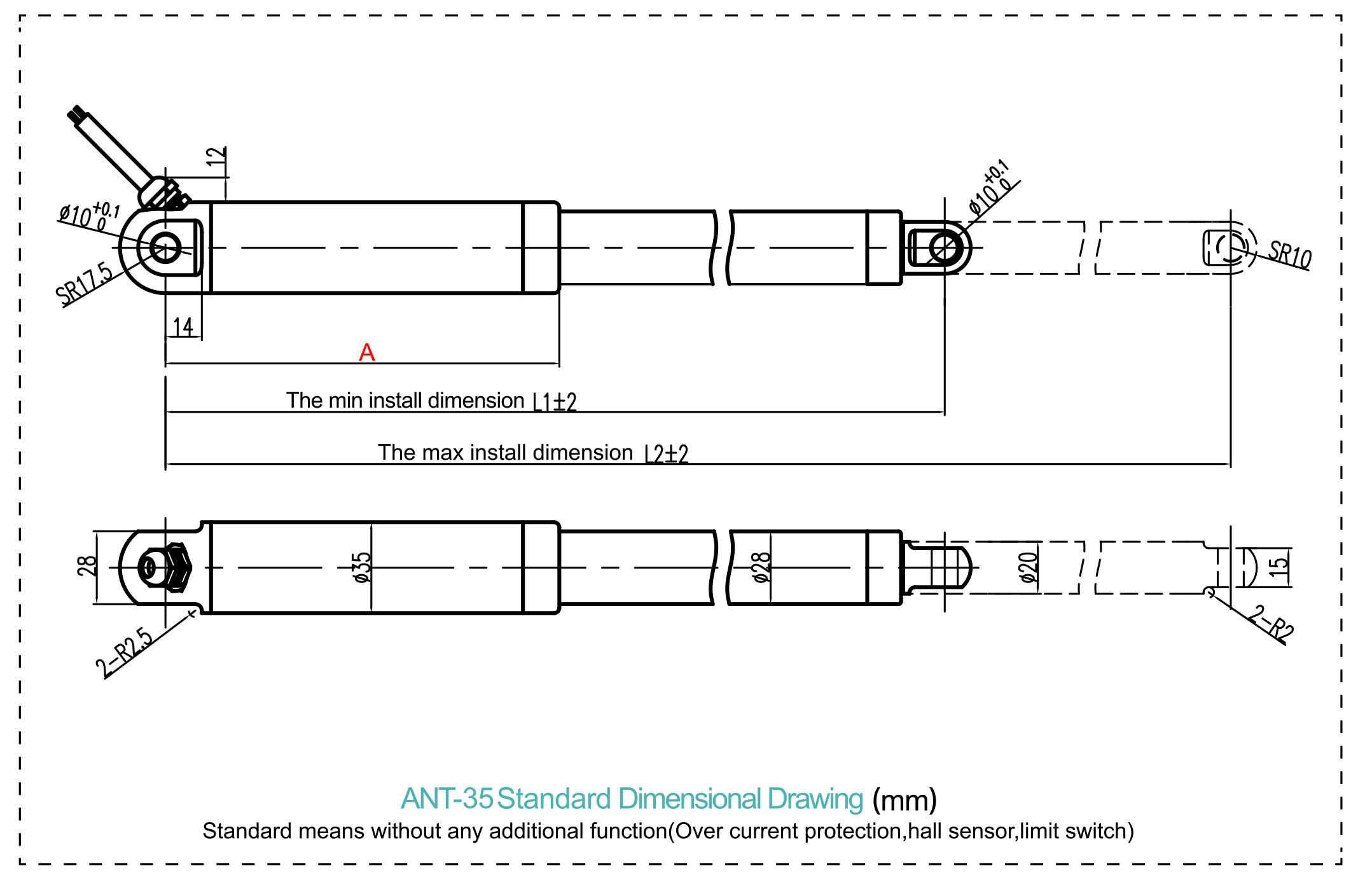

Siandard Dimension


ANT-35(Stroke≤400mm) Min. Install dimension



(mm)



 Standard

 Hall sensor

 Over current protection

Normal/

Waterproof

Low noise

Normal/

Waterproof

Low

 noise

Normal/

Waterproof

Low

 noise

≤800N

L+S

178+S

188+S

200+S

200+S

200+S

208+S

A

121.5

131.5

143.5

143.5

143.5

151.5

800N

L+S

188+S

-

208+S

-

208+S

-

A

131.5

-

151.5

-

151.5

-



ANT-35(Stroke400mm) Min. Install dimension



(mm)



 Standard

 Hall sensor

 Over current protection

Normal/

Waterproof

Low noise

Normal/

Waterproof

Low noise

Normal/

Waterproof

Low

 noise

≤800N

L+S

220+S

228+S

220+S

228+S

220+S

228+S

A

143.5

151.5

143.5

151.5

143.5

151.5

800N

L+S

228+S

-

228+S

-

228+S

-

A

151.5

-

151.5

-

151.5

-

lNoise level 56dB for the low noise version.

lFor IP67M/IP69K actuators, the min. install length will be 13mm longer.


Tailored On Demand

Limit switch

Control boxes available

Cable lengths

Stroke lengths

Front and rear fixture

Installation size

RAL colors

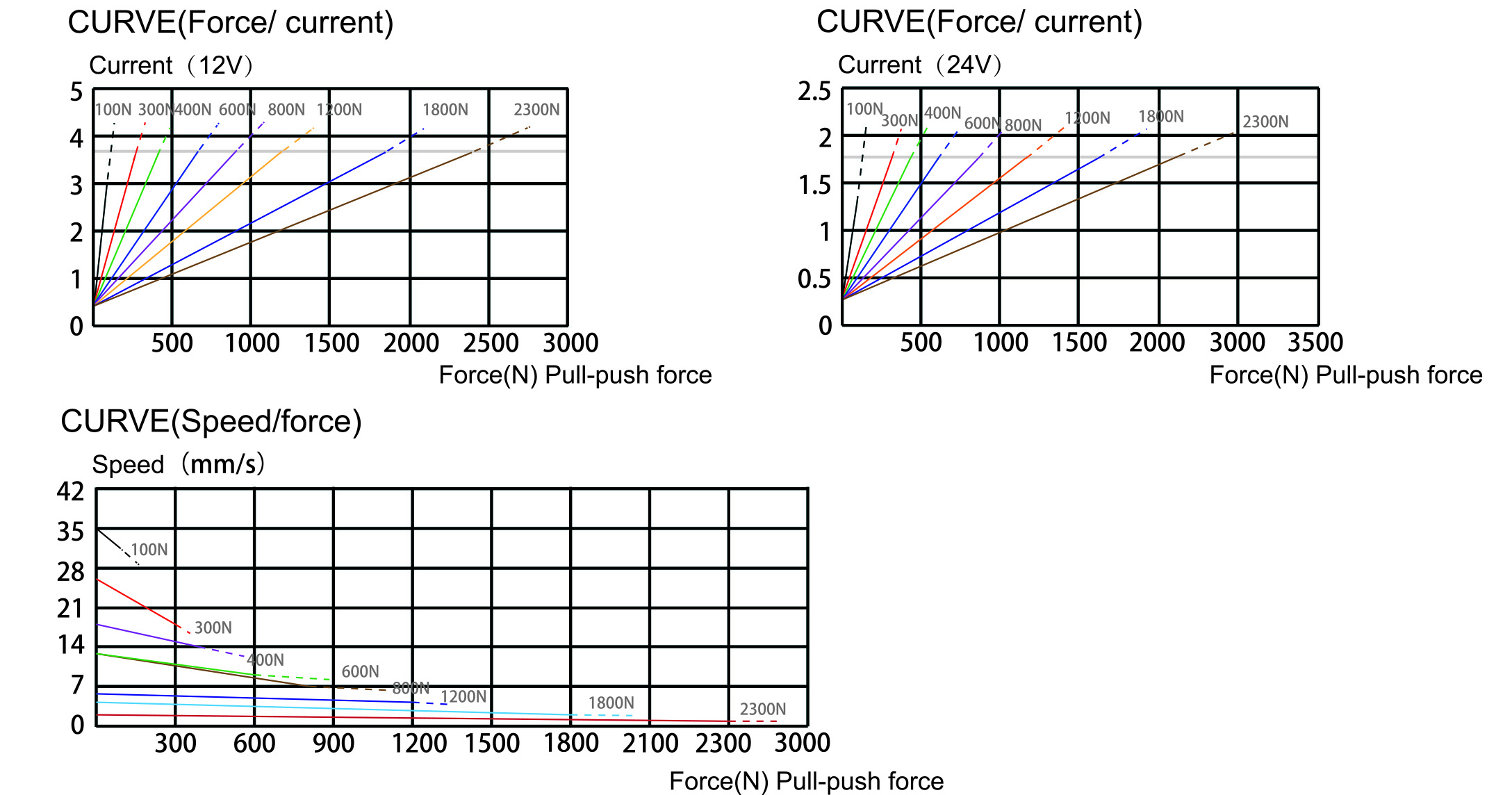

Curve


Accuracy of speed or current: ±15%, in general, applications in the dashed are not recommended.
