Surviving Underwater & Heavy Loads: What Makes a Trim Tab Actuator Truly Reliable?

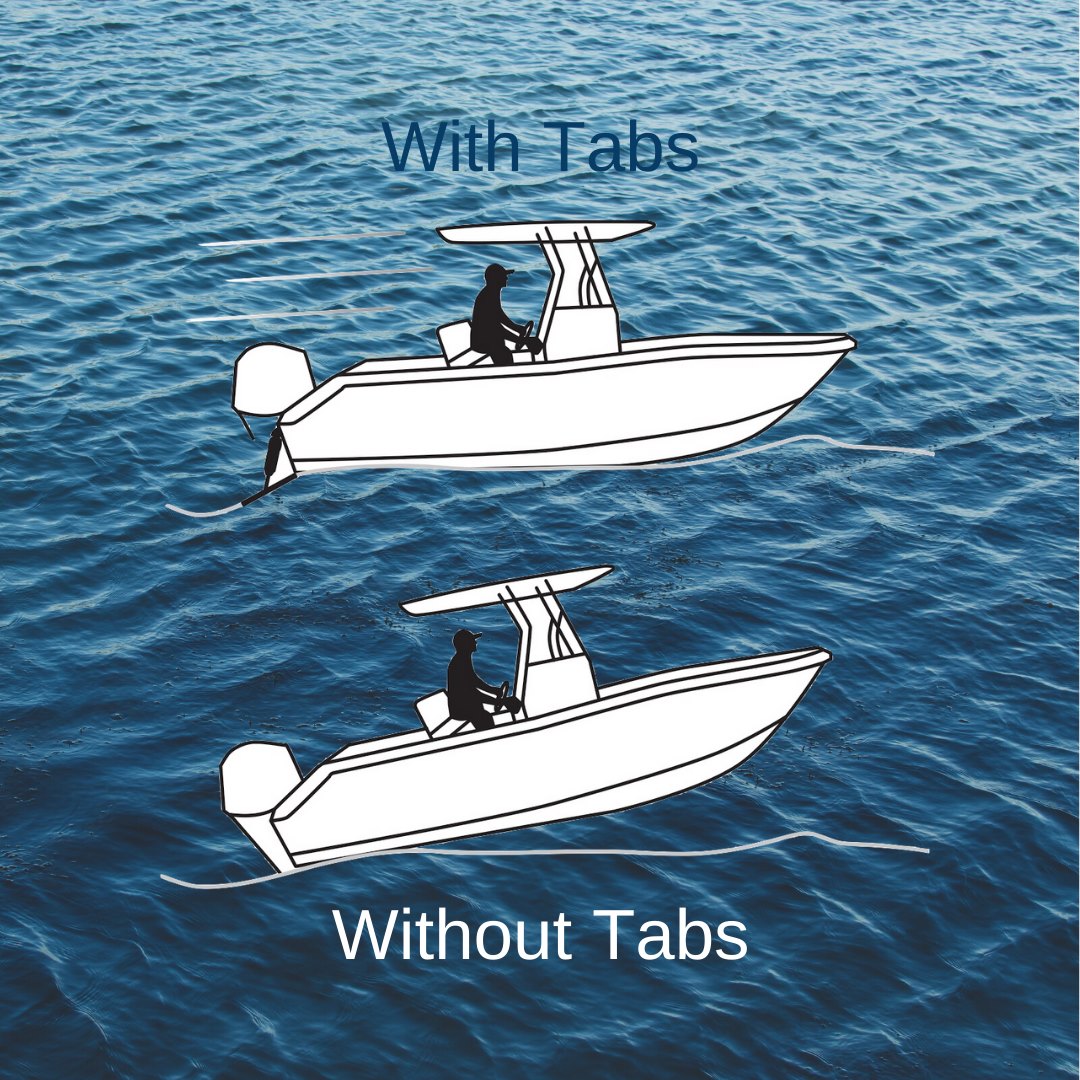

When it comes to yachts and boats, trim tabs are no longer a “nice-to-have” accessory—they are an essential component for stability, fuel efficiency, and smooth sailing. But behind every trim tab lies the real workhorse: the actuator that raises and lowers the plate.
For a trim tab actuator, the challenges are much tougher than in regular outdoor applications. It must operate fully submerged in seawater while handling continuous heavy-load movements. To be considered truly reliable, such an actuator must pass four critical tests: waterproofing, corrosion resistance, thrust output, and self-locking capability.
Unlike standard outdoor actuators, a trim tab actuator works directly in seawater, often fully submerged when the vessel is idle or moving slowly.
ANT-63 Actuator Highlights
IP67M Waterproof Rating: Designed for continuous immersion, meeting marine-grade standards.
Fully Sealed Construction: Multiple sealing rings plus waterproof filling prevent leakage during movement.
No Hydraulic Oil Leakage: Electric design eliminates oil spill risks common in hydraulic systems.
This means the actuator isn’t just splash-proof—it can continuously perform underwater without failure.
Seawater corrosion is far harsher than freshwater. Salt, humidity, and temperature fluctuations can quickly degrade ordinary metal components.
ANT-63 Actuator Highlights
Marine-Grade Materials: Aluminum alloy housing and stainless steel key components resist seawater corrosion.
Special Coating Treatments: Anodizing and anti-corrosion coatings extend operational life.
Maintenance-Free Structure: No hydraulic fluid degradation or corrosion issues.
The actuator passes a 500-hour salt spray test, ensuring durability in long-term marine environments.
Trim tabs must constantly resist water pressure and surface forces. If the actuator lacks sufficient thrust, the vessel risks slow response and unstable handling.
ANT-63 Actuator Highlights
High-Load Capacity: Built with a planetary gearbox for higher torque transmission.
Stable Performance: Maintains consistent speed and power even under frequent stop-start cycles.
Impact Resistance: Withstands sudden wave shocks and external forces without damage.
In trim tab applications where rapid adjustments are frequent, continuous thrust output is a key indicator of reliability.
A trim tab actuator must hold its position firmly even when the boat is hit by strong waves. Without self-locking, the trim tab angle could shift, affecting vessel balance and safety.
ANT-63 Actuator Highlights
Internal Limit Switches: Protect against overtravel and misoperation.
Screw Self-Locking: Holds position securely even when powered off.
Long-Term Holding Force: Ensures stability under constant wave pressure.
This guarantees that the trim tab remains steady at the required angle, even in rough seas.
Waterproofing, corrosion resistance, thrust, and self-locking—each factor directly affects the long-term safety and performance of a trim tab actuator.
The ANT-63 actuator combines:
✔ Full waterproof and anti-corrosion protection
✔ High-strength planetary gearbox for heavy loads
✔ Dual limit switch protection
✔ Strong self-locking and impact resistance
Unlike traditional hydraulic systems, it eliminates oil leakage and maintenance hassles, while providing stable thrust and reliable long-term performance.
For marine applications requiring heavy-duty underwater operation, the ANT-63 is not just an alternative—it’s a solution engineered for real-world ocean environments.
