Modern pergola systems are evolving rapidly. As homeowners, architects, and outdoor system manufacturers shift toward full automation, the need for reliable, intelligent, and weather-resistant control electronics becomes critical.

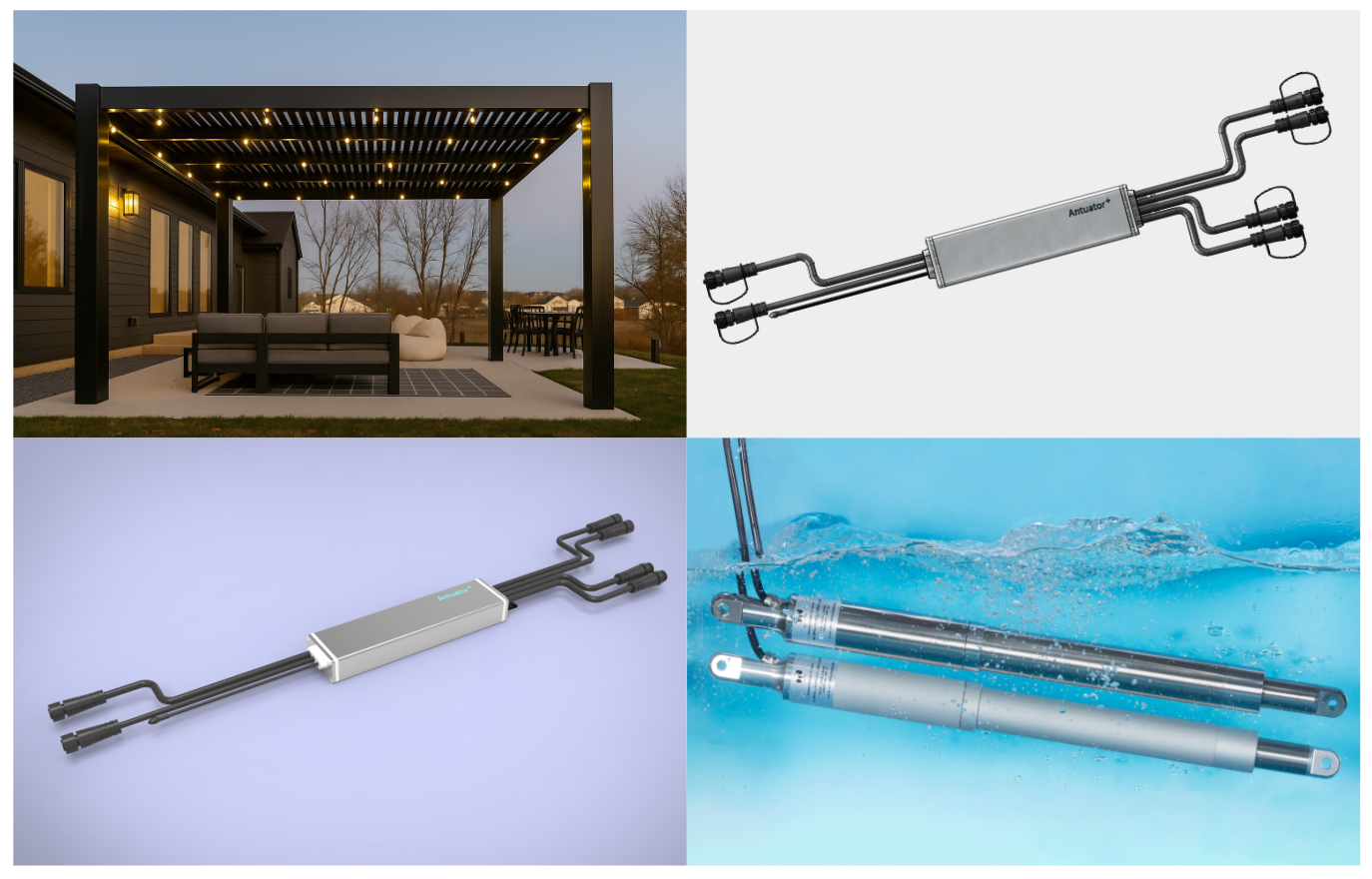

At the center of this transformation is the ANT-17 smart pergola controller — a compact, IP-rated control module designed specifically for motorized pergolas and outdoor shading systems.
The ANT-17 is not merely a switch box. It is a high-precision control platform that integrates actuators, sensors, lighting, and communication protocols into one unified system. For manufacturers and integrators building next-generation smart shading solutions, understanding its internal logic is essential.
Despite its small form factor — 192 × 48 × 25 mm — the ANT-17 incorporates a highly integrated control architecture engineered for outdoor automation.
Its internal design includes:
Drives 2 linear actuators used in pergola louver systems or retractable roofs
Up to 50W per channel, suitable for high-torque outdoor electric actuators
Optimized for low noise, stable current, and controlled acceleration
Controls single-color, dual-color, or RGB LED strips
PWM constant-current output for flicker-free dimming
Allows lighting and motion to be synchronized under one controller
Supports wireless remote, wall switch, touch panel
Integrates with rain/snow sensors for autonomous weather-based reactions
Provides RS485 + MODBUS for smart home, BMS, or centralized automation
This architecture allows the ANT-17 to function not only as a pergola controller but also as a full shading system integration hub.
Outdoor actuators face challenges such as wind load, roof weight, dust, humidity, and temperature variations.
To ensure stable and predictable movement, the ANT-17 employs a multi-layered control logic:
Continuously monitors Hall sensor feedback from both actuators to maintain perfect alignment during opening and closing.
Instantly shuts down the system if actuator torque exceeds safe limits — preventing gearbox damage and overheating.
Detects:
Hall sensor errors
Motor power anomalies
Wiring disconnection
Abnormal pulse feedback
These diagnostics improve both system safety and maintenance efficiency, essential for large commercial pergola installations and long-term outdoor use.
Different alert tones indicate different faults — allowing immediate troubleshooting without opening the casing.
Pergola control electronics must survive extreme weather.
The ANT-17 uses:
CNC-machined aluminum alloy housing
Waterproof gasket sealing
Corrosion-resistant terminals
Reinforced PCB coating
Available in IP65 and optional IP67, making it suitable for:
Coastal humidity
Rain and snow
High-pressure cleaning
UV exposure
Temperature cycling
This level of environmental engineering allows the controller to operate reliably for years in harsh outdoor conditions.
While the controller supports traditional remote operation, its true strength lies in its automation logic:
When connected to a rain or snow sensor, the system can automatically:
Close the pergola during precipitation
Protect the actuators from overload
Prevent water pooling on louvers or retractable roofs
Users can define partial-open angles or fixed shading profiles for specific times of day.
Through MODBUS, the controller can connect to:
Central home automation systems
Mobile apps
Building management systems
Voice control modules (via gateway)
This allows pergolas to become part of a larger smart-home or smart-building ecosystem.
The ANT-17 is engineered not only for end-user convenience but for system designers and manufacturers who require:
Stable actuator control
Weather-proof hardware
Industry-standard communication protocol
Easy wiring and compact installation
Long-term reliability for warranty management
Its internal architecture, safety logic, and environmental protection make it a robust choice for pergola manufacturers, awning system builders, and outdoor automation solution providers.
In modern outdoor architecture, true intelligence goes beyond automation — it lies in precision, durability, and system integration.
The ANT-17 delivers all three, enabling pergolas and smart shading systems that respond to weather, integrate with home automation, and operate safely under outdoor stress.
Behind every smooth opening or closing motion is a highly engineered control logic — and the ANT-17 is the “brain” that makes it all possible.
