Linear Actuators ANT-45
A 230V AC electric linear actuator for smooth operation

230VAC input power ensures consistent speed for smooth operation.Equipped with adjustable limit switches for precise control and flexibility.

The slim, in-line design is ideal for installations in tight spaces, and it offers IP67M waterproof protection for reliable outdoor use.

Stainless steel version available for demanding environments, offering enhanced durability.

Perfect for dynamic facades, sun shading systems, window adjustments, and ventilation systems.

ANT-45
ANT-45
ANT-45
Home Products Linear Actuators ANT-45
Specifications

Voltage(V)

 230V

 Duty cycle

Work 2 minutes and rest 18 minutes

No-load current(A)

 ≤0.7A

 Lift time

 ≥10000cycles

 Load current(A)

 ≤0.7A

Operating temperature(℃)

 -20~85(℃)

 Max. power(W)

 160W

Storage temperature(℃)

 -40~70(℃)

 Stroke

100-600mmcan be customized)

Material of lead screw

 #45 steel

 Limit switches

 Adjustable limit switch

Material of push rod

 SUS316

Noise level on load

 ≤56dB

Material of push nut

 Engineering plastic

 IP rating

 IP66/IP67M

 Stand color

 Black

 Blacklash

 0.5-1mm

Stand cable length

1.5m(can be customized)

Min. installation lengths

 410+S(“S” for stroke)

 Certification

 CE

Options

Aluminum/Stainless steel version

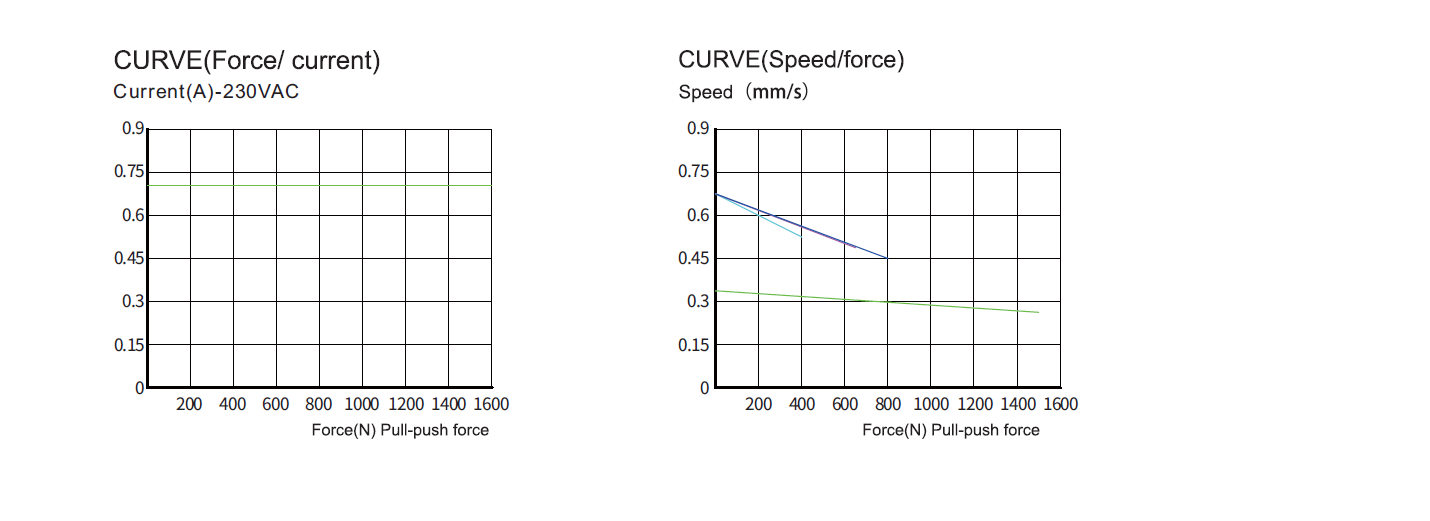

FORCES AND SPEEDS

 Push force

 Full force

Self-locking force

 Speed on load

 No load speed

 400N

 400N

 400N

 8.5 mm/s

 9 mm/s

 600N

 650N

 650N

 8 mm/s

 9 mm/s

 800N

 800N

 800N

 7.5 mm/s

 9 mm/s

 1500N

 1500N

 1500N

 4 mm/s

 4.5 mm/s

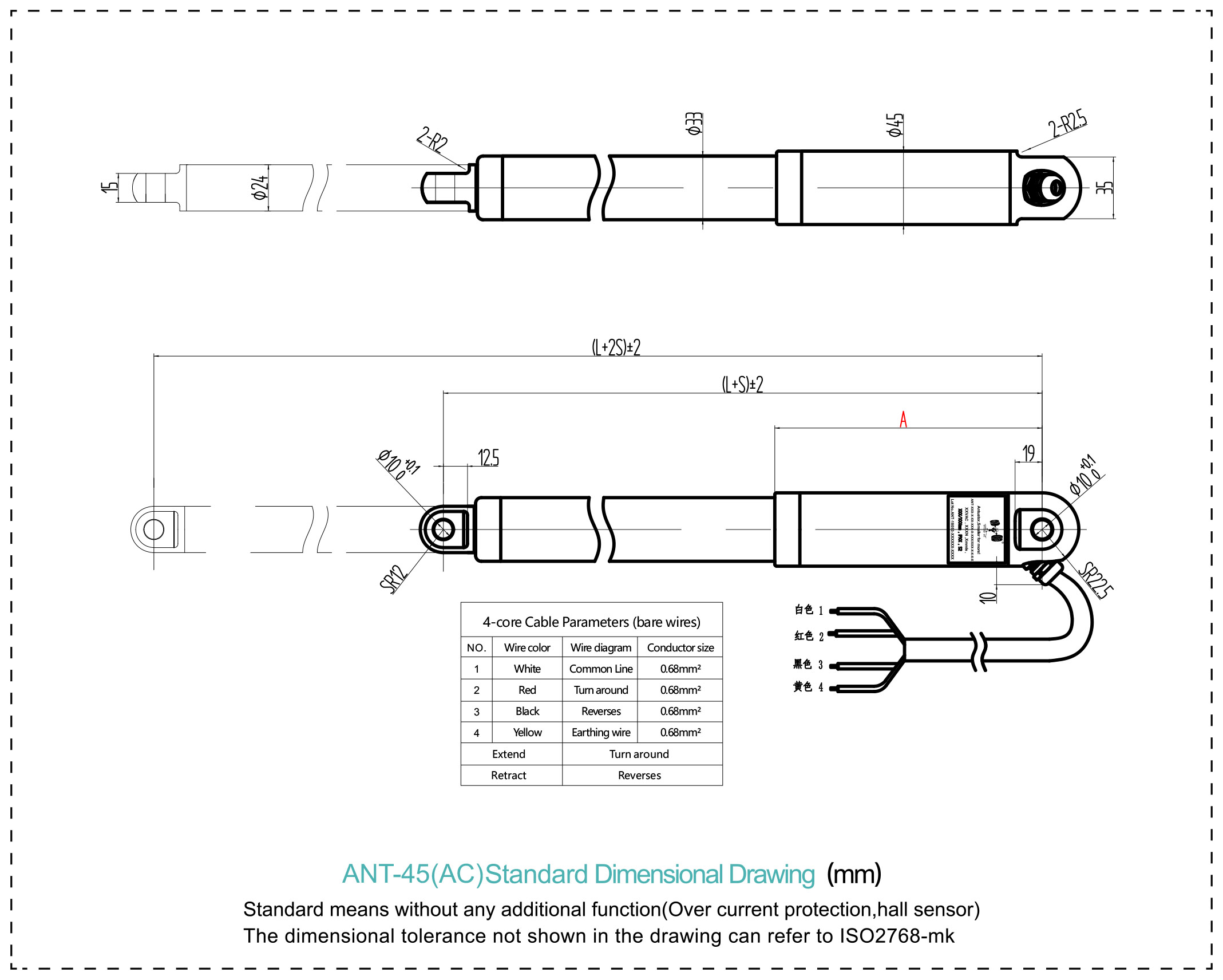

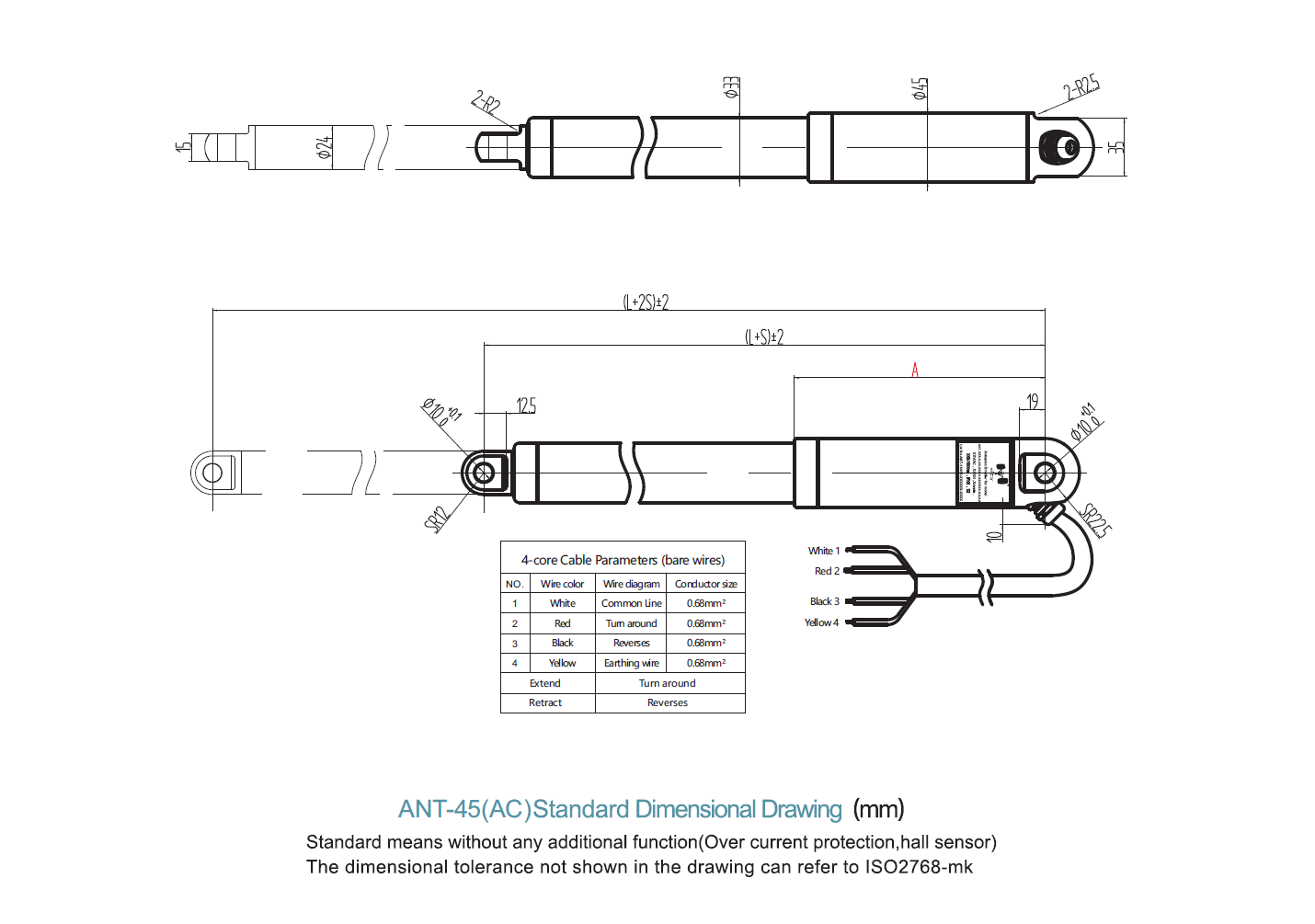

Siandard Dimension


Tailored On Demand

Limit switch

Control boxes available

Cable lengths

Stroke lengths

Front and rear fixture

Installation size

RAL colors
