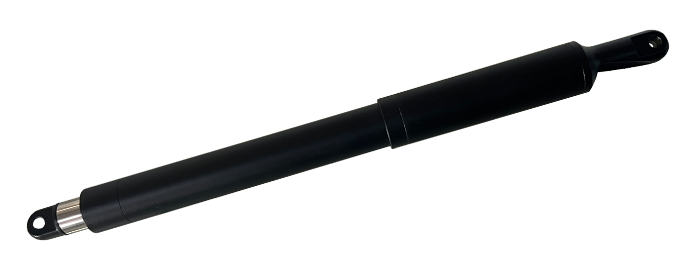

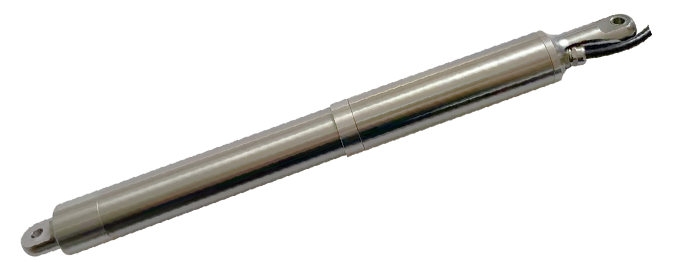

ANT-38P is specifically designed for bioclimatic pergolas, where waterproofing, elegant design, and a compact size are essential for seamless performance.
With a maximum load capacity of 2500N, customizable stroke lengths, and forces, the ANT-38P ensures smooth, quiet, and precise operation for various pergola types and sizes.
Engineered to withstand harsh environments, the ANT-38P features an IP67M and IP69K protection rating, with materials tailored to meet the demanding needs of the pergola market.
Maintenance-free, easy to install, and trouble-free—a 5-year warranty for peace of mind complements these key features.
Features and options
| Max Load in push(N) | 2500N |
| Max Loadin pull(N) | 2500N |
| Voltage(V) | 12V/24V |
| No-load current(A) | ≤1.2A/≤0.6A |
| Load current(A) | ≤3.8A/≤1.8A |
| Max.Power(W) | 50W |
| Material ofouter tube | 6063 Aluminium/316 stainlesssteel |
| Material oflead screw | #45 steel |
| Materialof piston rod | 304/316 stainless steel |
| Material ofthe nut | Engineering plastic |
| Protection Class | IP67M/IP69K |
| Noise on load (dB) | ≤56dB |
| Backlash(mm) | 0.5-1mm |
| Colour | Black/Silver/Metal colour |
| Strokelength(mm) | ≤500mm |
| Limit switch | Built-in |
| Options | Over current protection/Hall sensor/Limit switch signal line output |
| Standard cable length(m) | 1.5m (cable length can be customized) |

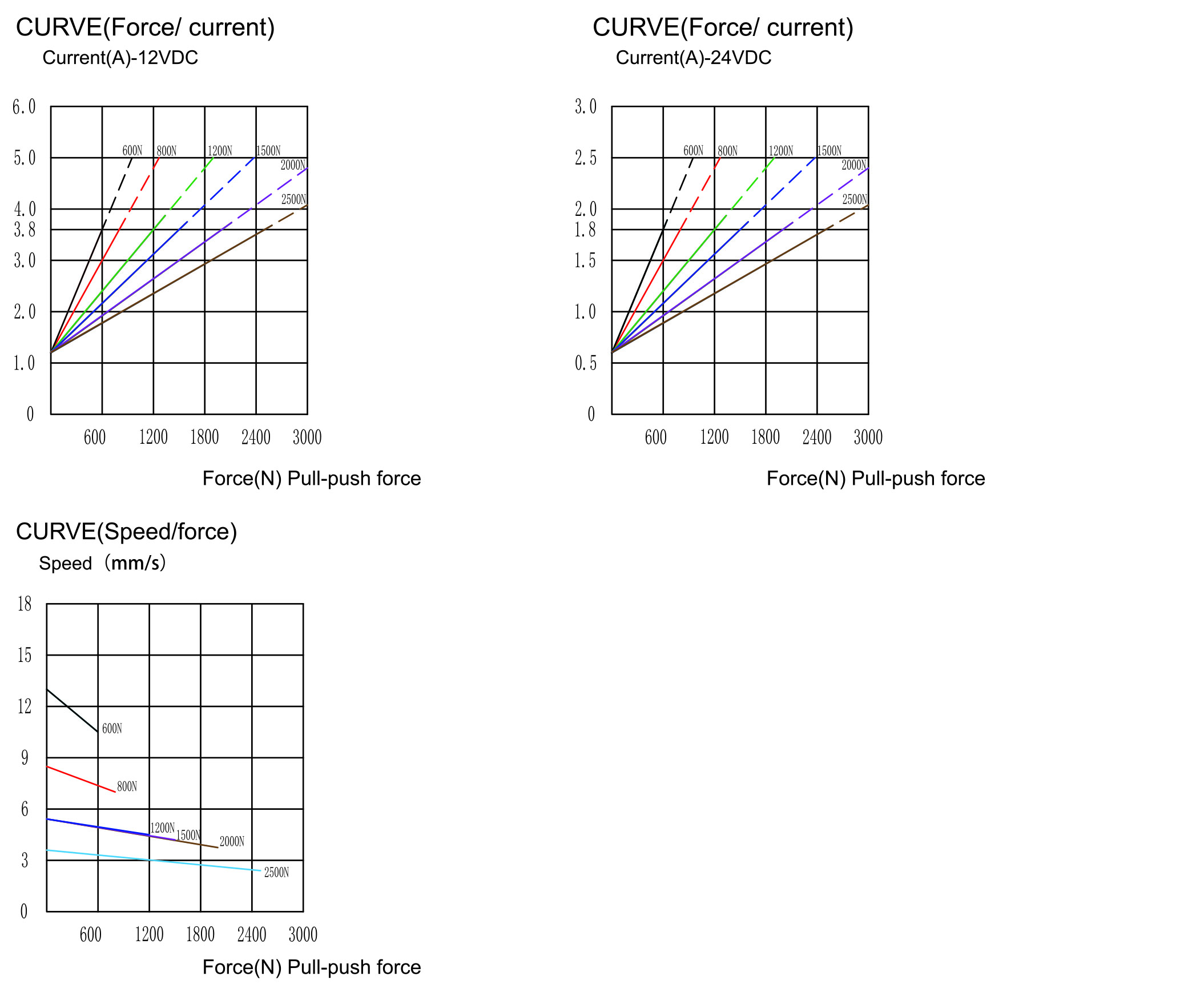

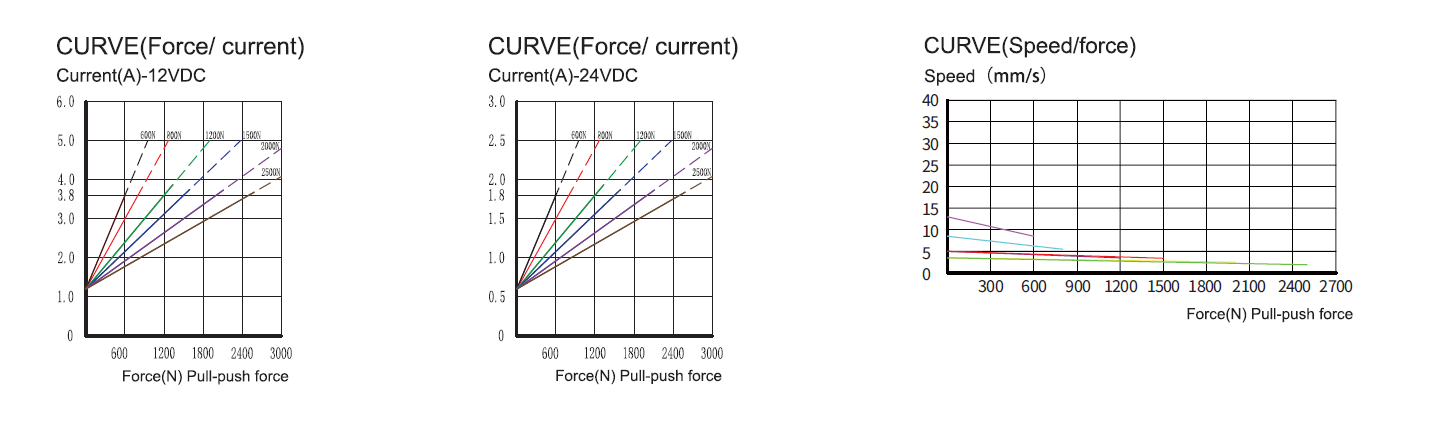

Forces and speeds
| Push force【N】 | Pull force【N】 | Self-locking force【N】 | Speed on load【mm/s】 | No load speed【mm/s】 |
| 600 | 600 | 600 | 8.5 | 13 |
| 800 | 800 | 800 | 5.5 | 8.5 |
| 1200 | 1200 | 1200 | 3.5 | 5 |
| 1500 | 1500 | 1500 | 3 | 5 |
| 2000 | 2000 | 2000 | 2.3 | 3.3 |
| 2500 | 2500 | 2500 | 1.9 | 3.3 |
Stroke and Weight
| Stroke【mm】 | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 |
| AL Weight【kg】 | 0.9 | 1 | 1.1 | 1.2 | 1.3 | 1.4 | 1.5 | 1.6 |
| S/S Weight【kg】 | 1.5 | 1.65 | 1.8 | 1.95 | 2.1 | 2.25 | 2.4 | 2.55 |
Usage
| Operating temperature（℃） | -20℃~60℃ |
| Storage temperature（℃） | -40℃~60℃ |
| Working duty（S2） | 10%, 2 minutes continuous use followed by 18 minutesin rest |
| Life time（cycles） | ≥10000 cycles |
| Certification | CE/RoHS/UL325 |

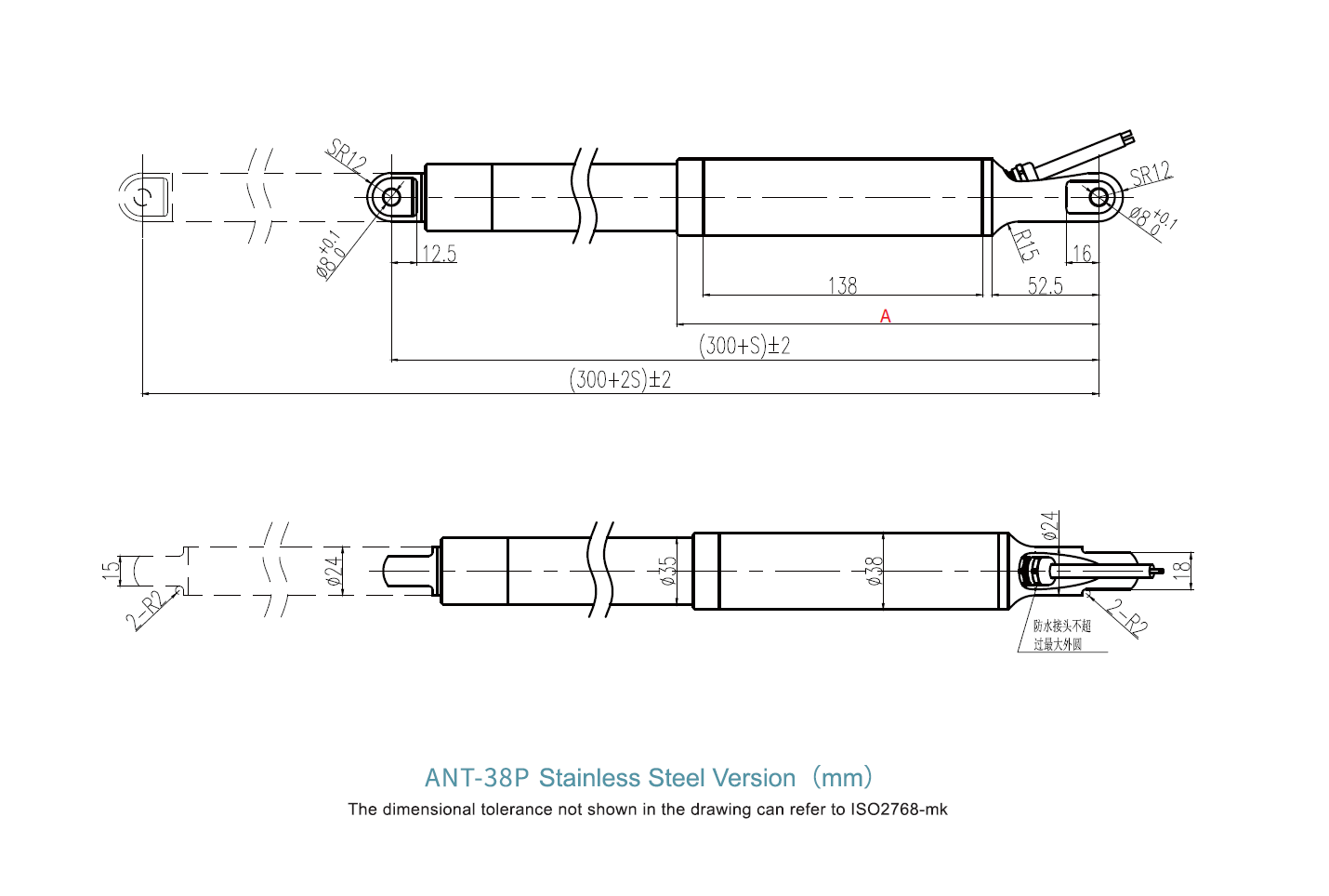

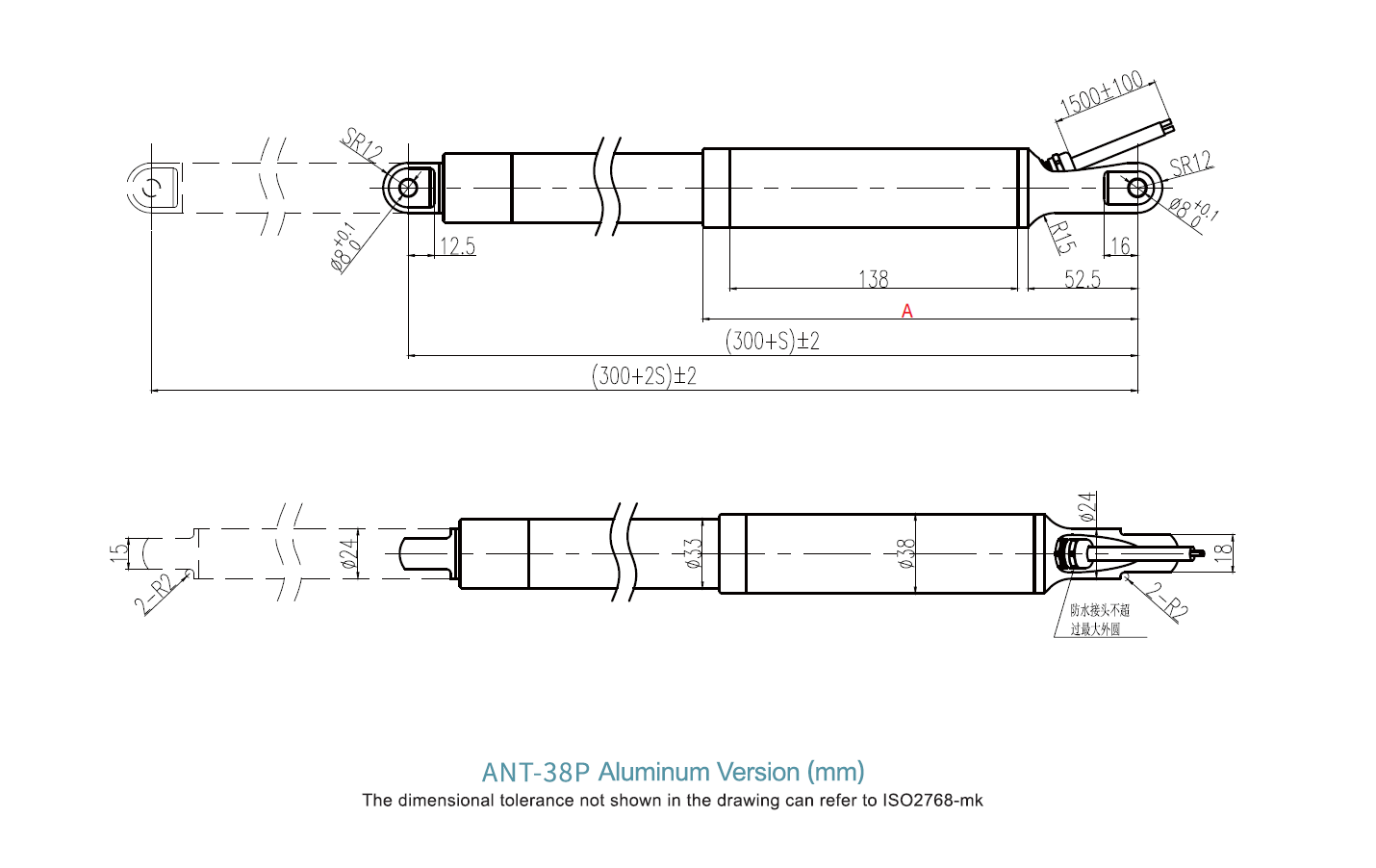

Built-in dimensions
| Option | Minimum BID[mm] | A |
| Standard | 300+stroke length | 208.5 |
| IP67M/IP69K | 300+stroke length | 208.5 |
| Hall sensor | 300+stroke length | 208.5 |
| Over current protection | 300+stroke length | 208.5 |
| Signal line output | 300+stroke length | 208.5 |
Notes: For any special installation size needs, please contact us.

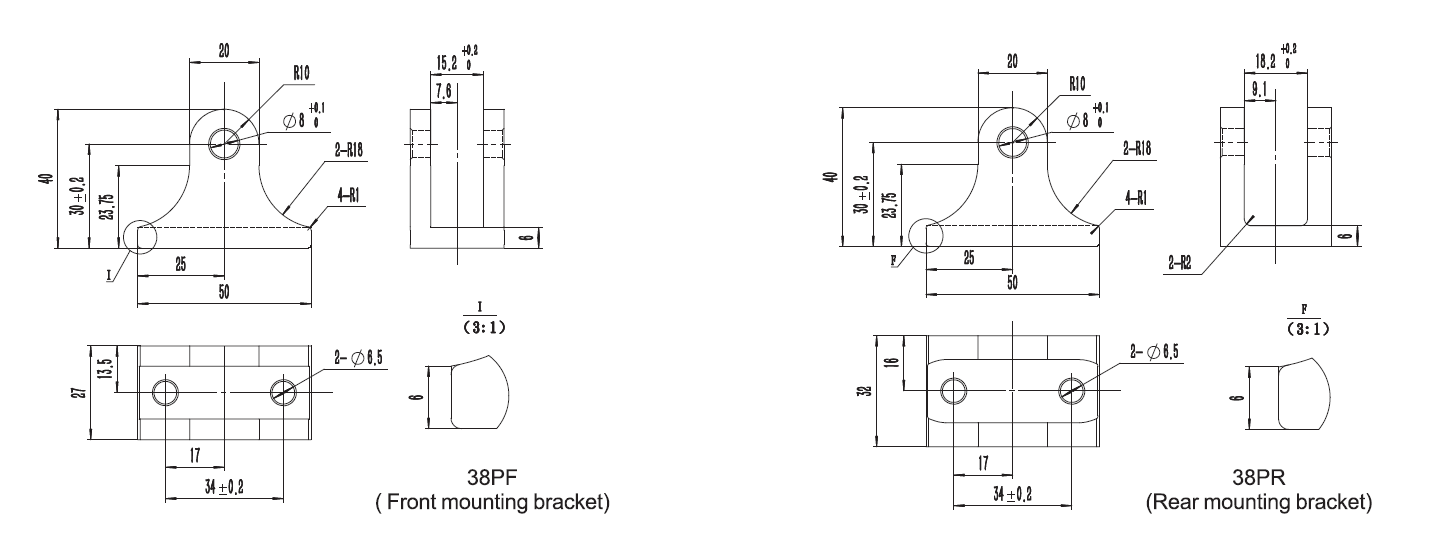

Mounting bracket
Over current protection
Hall sensor
Limit switch signal line output
Cable lengths
Other stroke lengths available
Customized front, rear fixture

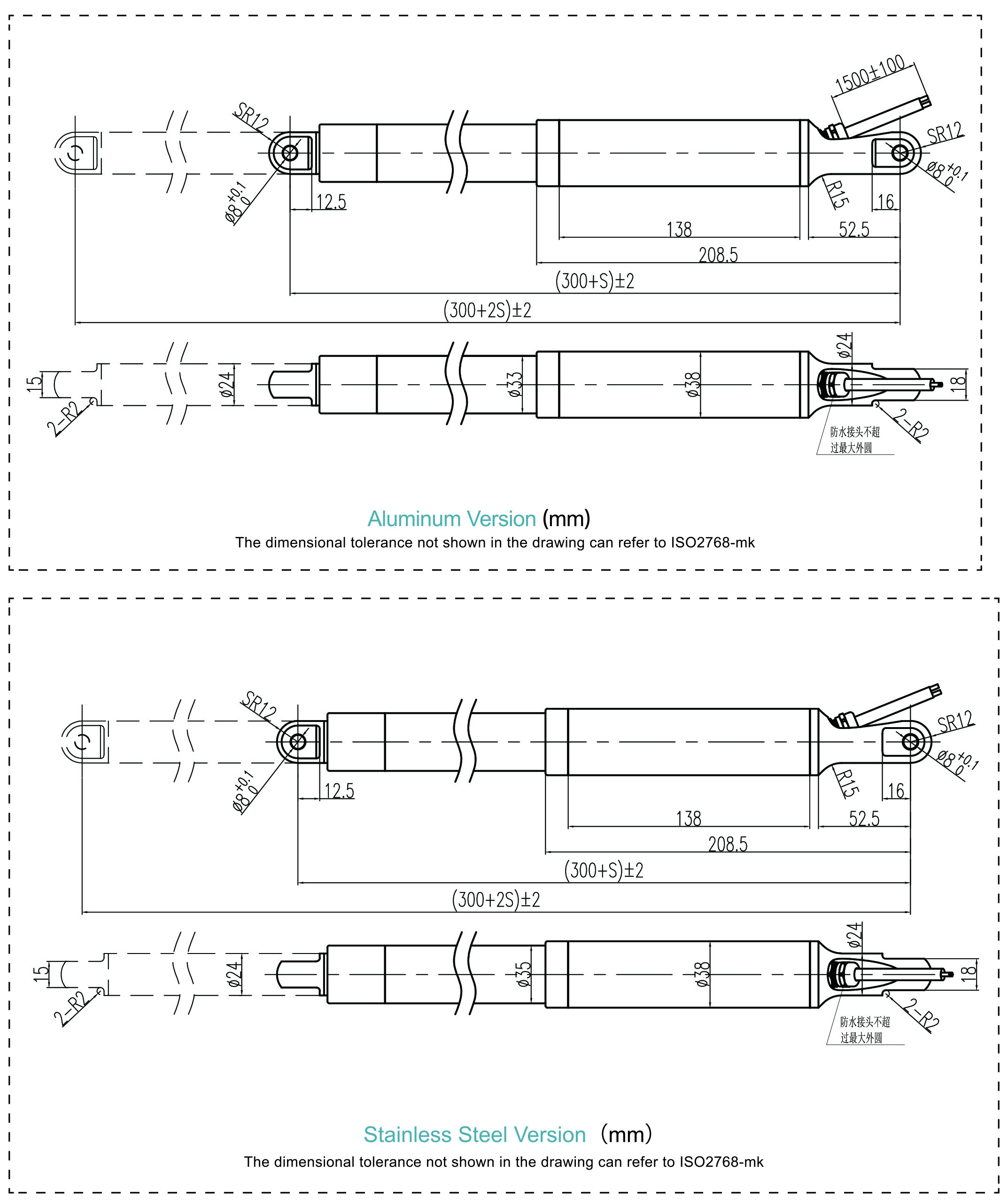

Installation size
Available in all RAL colours
