In pop-up RV roof lift systems, outdoor camper mechanisms, and marine hatch applications, one inevitable question always arises: What happens if the power fails? Can the system still be safely retracted?

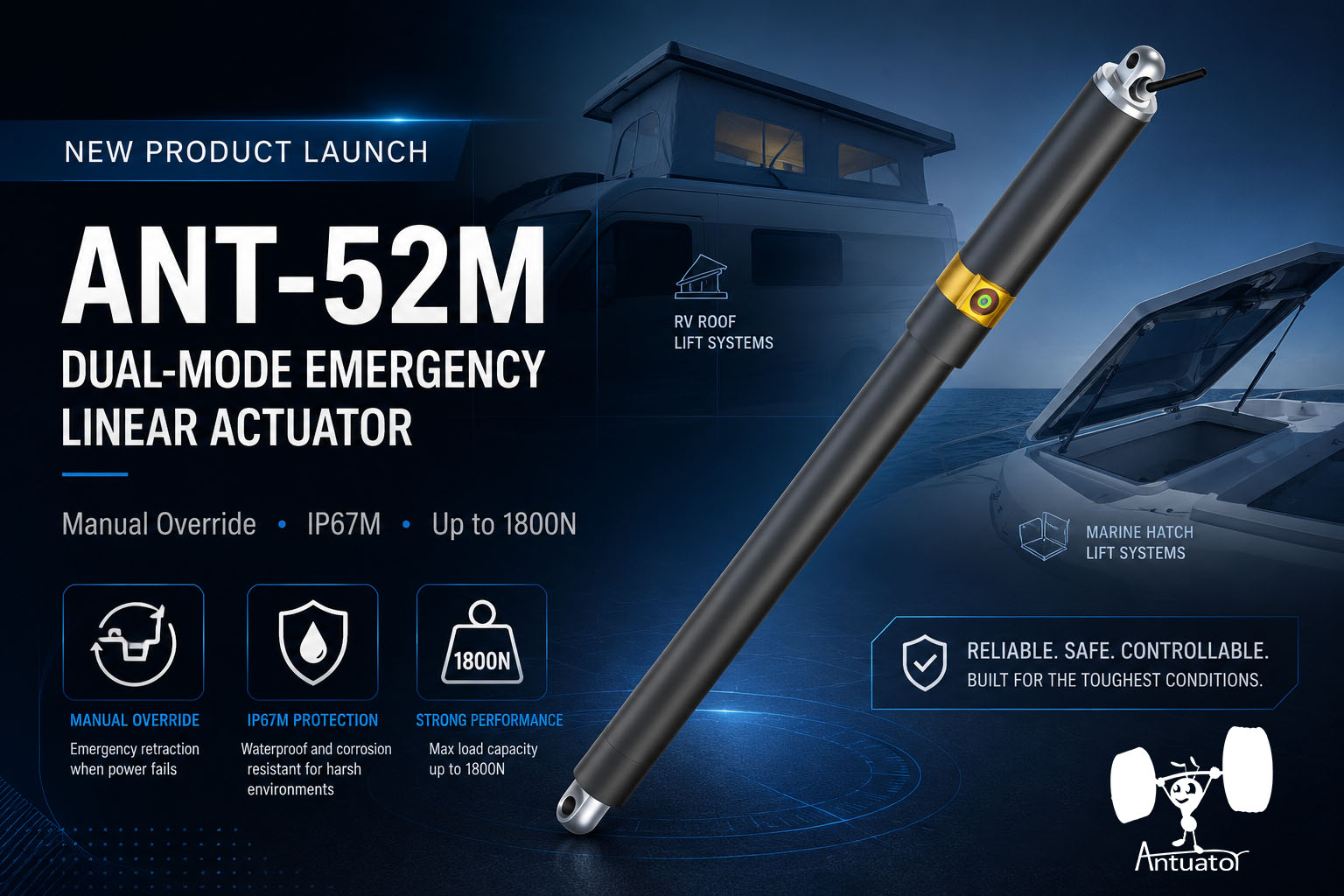

To address this critical real-world pain point, ANTUATOR has upgraded its proven ANT-52 platform to introduce a brand-new, highly reliable solution—the ANT-52M Hand-Cranked Emergency Linear Actuator.
The definitive improvement of the ANT-52M lies in its integrated, independent manual override system.
When the electrical system encounters a power outage, battery depletion, or unexpected failure, users can directly retract the actuator using a manual mechanism. This achieves a perfect dual-path redundant control system combining electrical efficiency with mechanical certainty.
Rather than being a simple add-on feature, the ANT-52M’s structure was engineered from the ground up. Our R&D team redesigned the power transmission path within the original gearbox. This ensures that the electrical and mechanical systems can seamlessly and safely switch under extreme conditions without interfering with each other.
Engineered for harsh outdoor environments, the ANT-52M combines powerful load capacity with high-tier environmental protection:
| Parameter | Specification |
| Max Load Capacity | 1800N |
| Operating Voltage | 12V / 24V DC |
| Protection Class | IP67M |
| Speed | ＞10mm/s (Based on customized load) |
| Stroke Range | 100mm – 600mm (Customizable) |
| Service Life | ≥ 10,000 complete cycles |
| Operating Temperature | -20℃ to +60℃ |
RV Roof Lift Systems & Pop-top Campers
Roof-top Tent Mechanisms
Yacht & Marine Hatch Lift Systems
Motorized Skylights & Ventilation Structures
Industrial Emergency Opening Devices
Developing a reliable "fail-safe manual retraction" system required multiple rounds of rigorous testing and optimization by our engineering team, focusing on three core areas:
We ensured that when the motor is completely de-energized or fails, the manual input mechanism does not encounter back-driving resistance from the motor itself, allowing for a smooth and effortless manual operation.
The emergency override is highly adaptable to common tools in the field:
Power Drill Driven: Fully retracts a 500mm stroke in approximately 51 seconds.
Manual Wrench Driven: Fully retracts the system in approximately 3 minutes.
Building upon the robust ANT-52 electric actuator platform, the ANT-52M features upgraded sealing technologies. With an IP67M rating, it delivers superior resistance against heavy rain, high humidity, and corrosive salt spray environments.
The successful launch of the ANT-52M is the result of seamless, end-to-end collaboration across multiple specialized teams at ANTUATOR:
Structural Engineering: Achieved the complex transmission decoupling design between the manual override and electric motor.
Process & Manufacturing: Optimized assembly consistency for the dual-system integration to ensure flawless factory output.
Validation & Testing: Conducted long-cycle lifespan tests and simulated extreme environmental conditions.
Application Engineering: Continuously fine-tuned the mechanical structure based on real-world installation feedback from the RV and marine hatch industries.
This complete development lifecycle ensures that every ANT-52M actuator delivered behaves predictably and reliably in field applications.
In outdoor and off-grid applications, product failure rarely means a total mechanical breakdown; rather, it means a loss of control. Therefore, the design philosophy behind the ANT-52M was not to add unnecessary complexity, but to build absolute certainty: Ensuring there is always an executable, safe retraction path under any circumstances.
The ANT-52M represents a significant leap forward in reliability for the ANT-52 platform. It is not just an upgrade in parameters, but a redefinition of the "safety boundary" in real-world operations. Moving forward, ANTUATOR remains committed to innovating for outdoor and mobile equipment scenarios, ensuring your motion control systems stay stable, safe, and controllable in the toughest environments.
Need a reliable emergency linear actuator for your next RV project, marine application, or industrial design? Contact our application engineers today for customized stroke lengths, speed adjustments, and technical drawings!
